Alta X Gen2 Essentials Kit

Alta X Gen2 - 950-00173

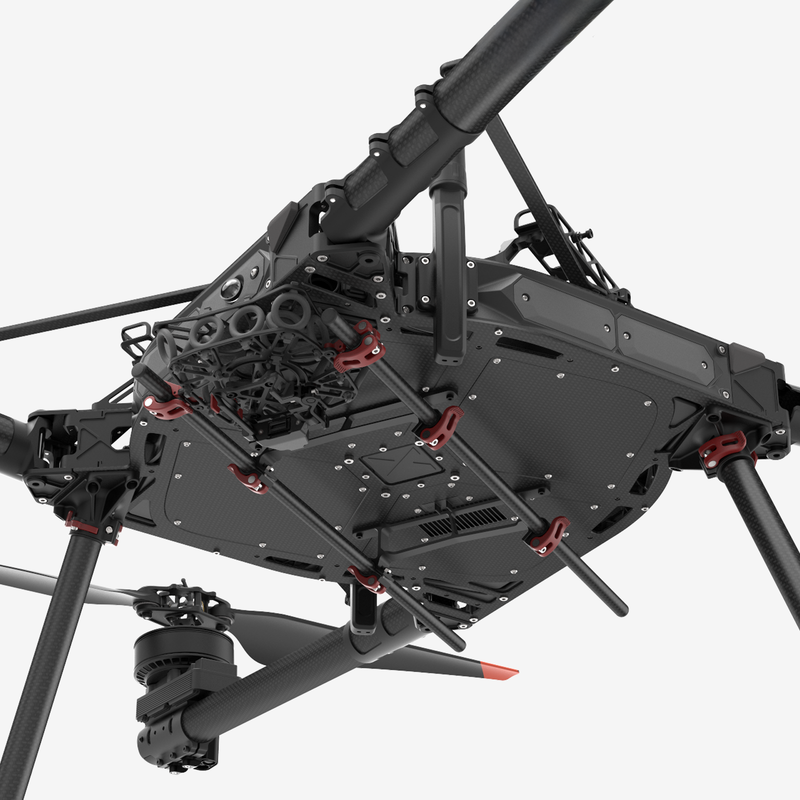

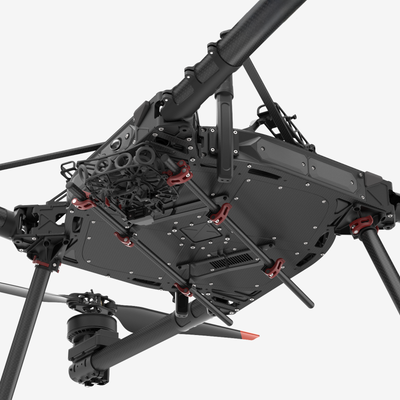

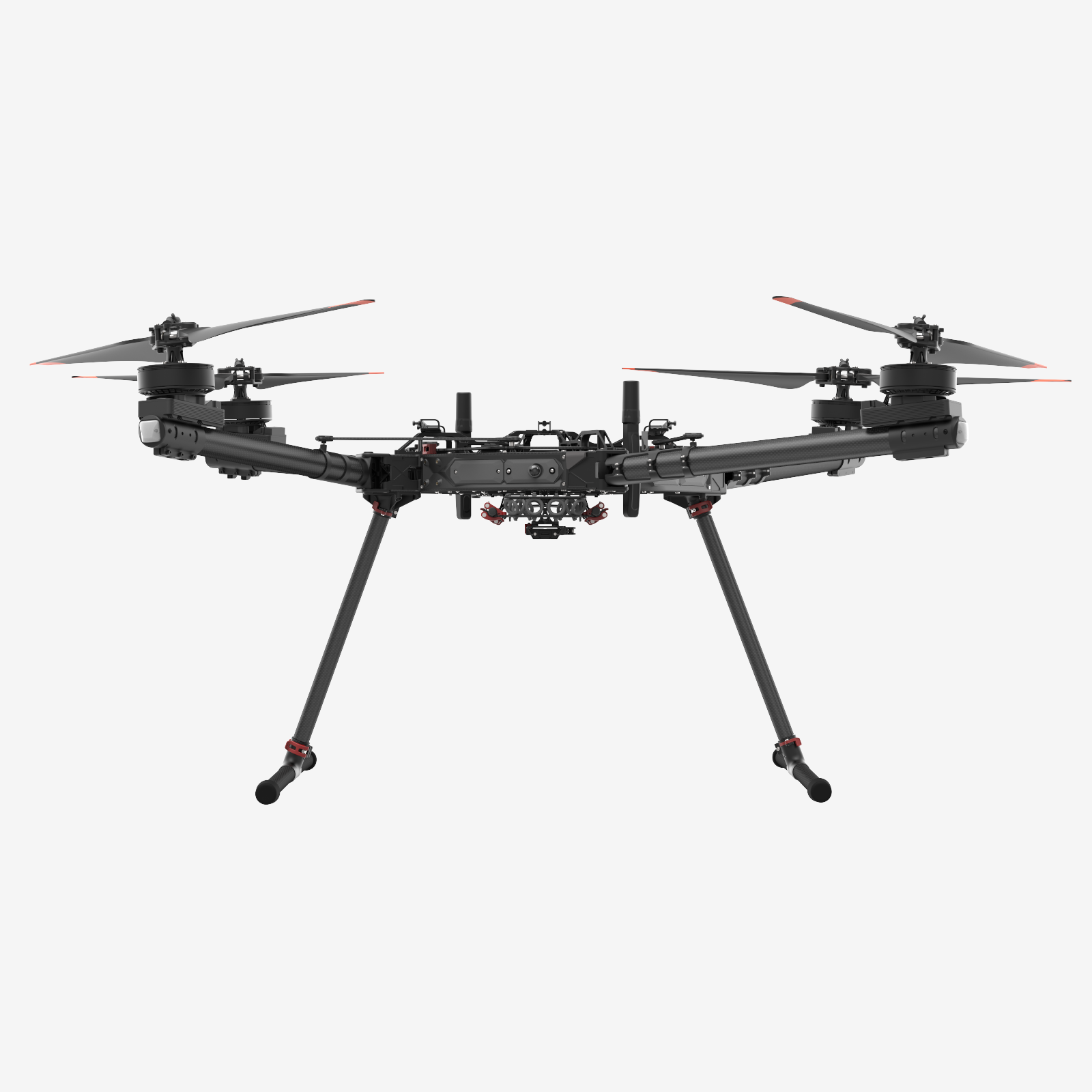

• This build of Alta X Gen2 is ideal for heavy-lift multi-rotor applications that need integrated payloads

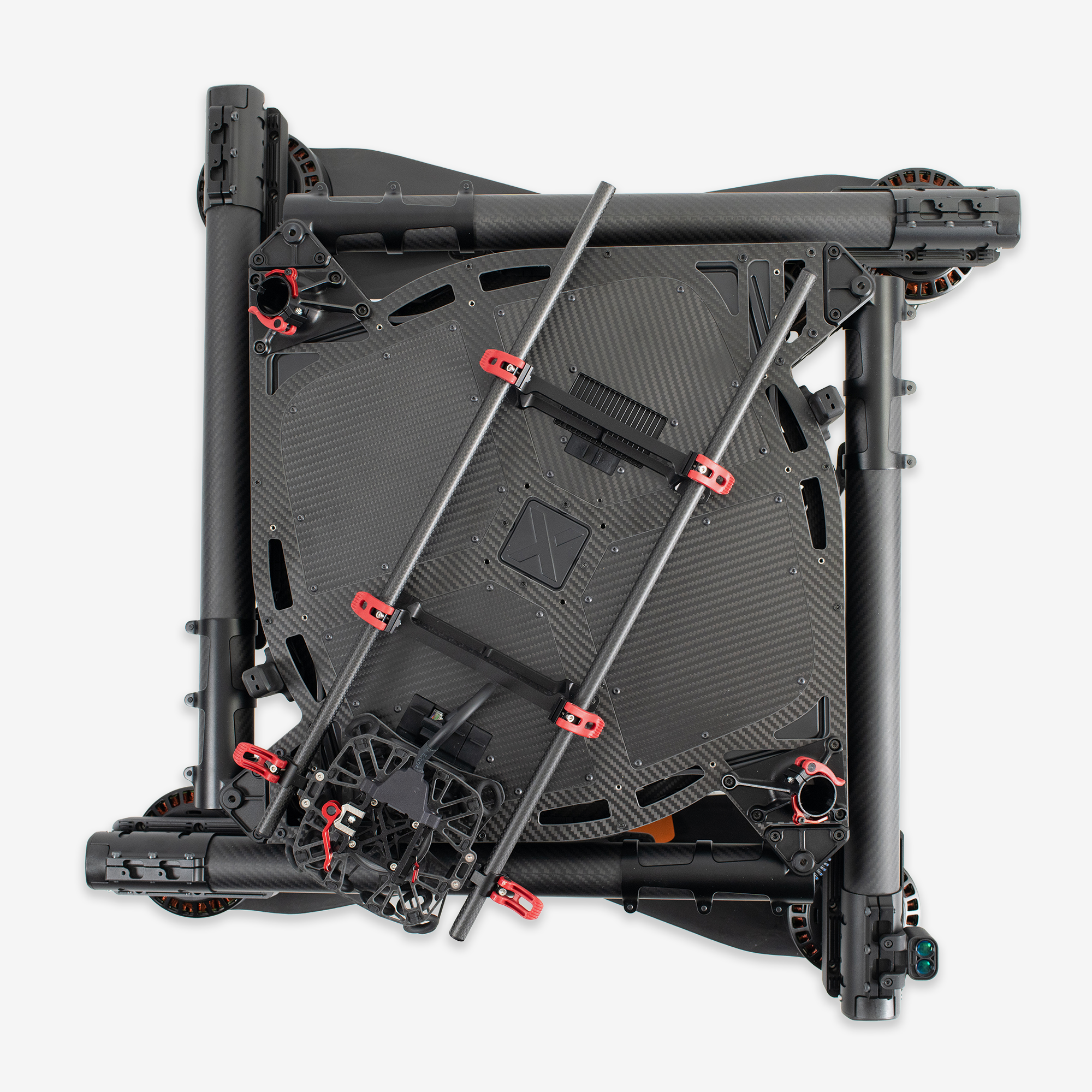

• Includes Medium Skid Landing Gear, 12 mm payload rails, and Smart Dovetail for up to 1.5 kg payloads

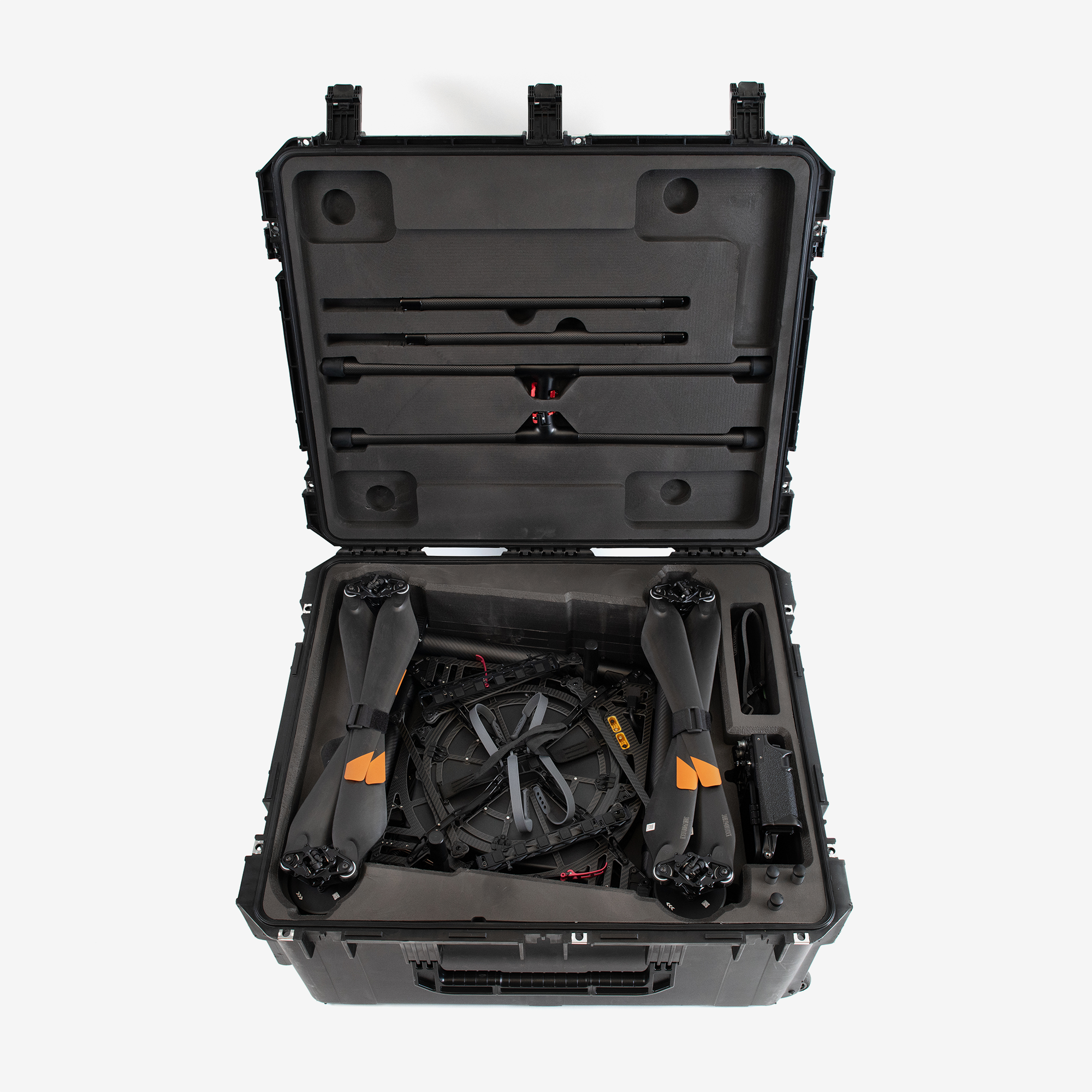

• Ships with payload mounts installed, in a sturdy travel case with wheels that fits skid landing gear inside
• Pilot Pro controller comes pre-installed with Alta X Gen2 flight software (AMC) and Herelink radio modules, all inside the Alta case

Alta X Gen2 12S Flight Battery (AS150U) - 910-00898

• Battery Type - Lithium Polymer
• Capacity - 16 Ah
• Voltage - 44.4 V
• Connector - AS150U (Anti-spark)
• Communication Protocol - CAN
• Bluetooth Enabled - No*
• Max Continuous Discharge - 15C
• Max Burst Discharge - 30C
• Max Charge Voltage - 4.2 V per cell
• Minimum Discharge Voltage - 3.0 V per cell
• Dimensions - 217 × 150 × 80 mm / 8.5 × 5.9 × 3.1 in
• Weight:
  • Per battery - 4.25 kg / 9.37 lbs
  • Per pair (flight-ready weight) - 8.5 kg / 18.74 lbs

Tattu TA3200 Dual-Channel Smart Charger - 910-00901

• AC Input - 100 V – 240 V, 50/60 Hz, 15 A
• Max Charge Power - 3200 W with 240 V input / 1600 W with 120 V input, split between both channels
• Max Discharge Power - 70 W × 2
• Max Discharge Current - 3 A
• Charge Current Range Per Channel - 10 A, 15 A, 20 A
• LiPo Battery Cell Count - 6S – 14S
• Operating Temperature - 0 °C to 60 °C / 32 °F to 140 °F
• Upgrade Connectivity - USB Micro
• Size - 216 × 276 × 154 mm / 8.5 × 10.9 × 6.1 in
• Weight - 6 kg / 13 lbs

CW & CCW Single Motor Propeller Sets with ActiveBlade (M4 Fasteners) - 910-00703 & 910-00704

• Direct replacement for prop assemblies for Alta X models with M4 fasteners (all modern Alta X)
• In our testing, ActiveBlade reduced peak vibration levels to 1/5th of their normal level, allowing for better flight performance and reliability
• Comes with replacement bumpers to aid in stowage orientation

*These batteries are built custom for us by TATTU without Bluetooth for compliance with DoD/DIU applications.

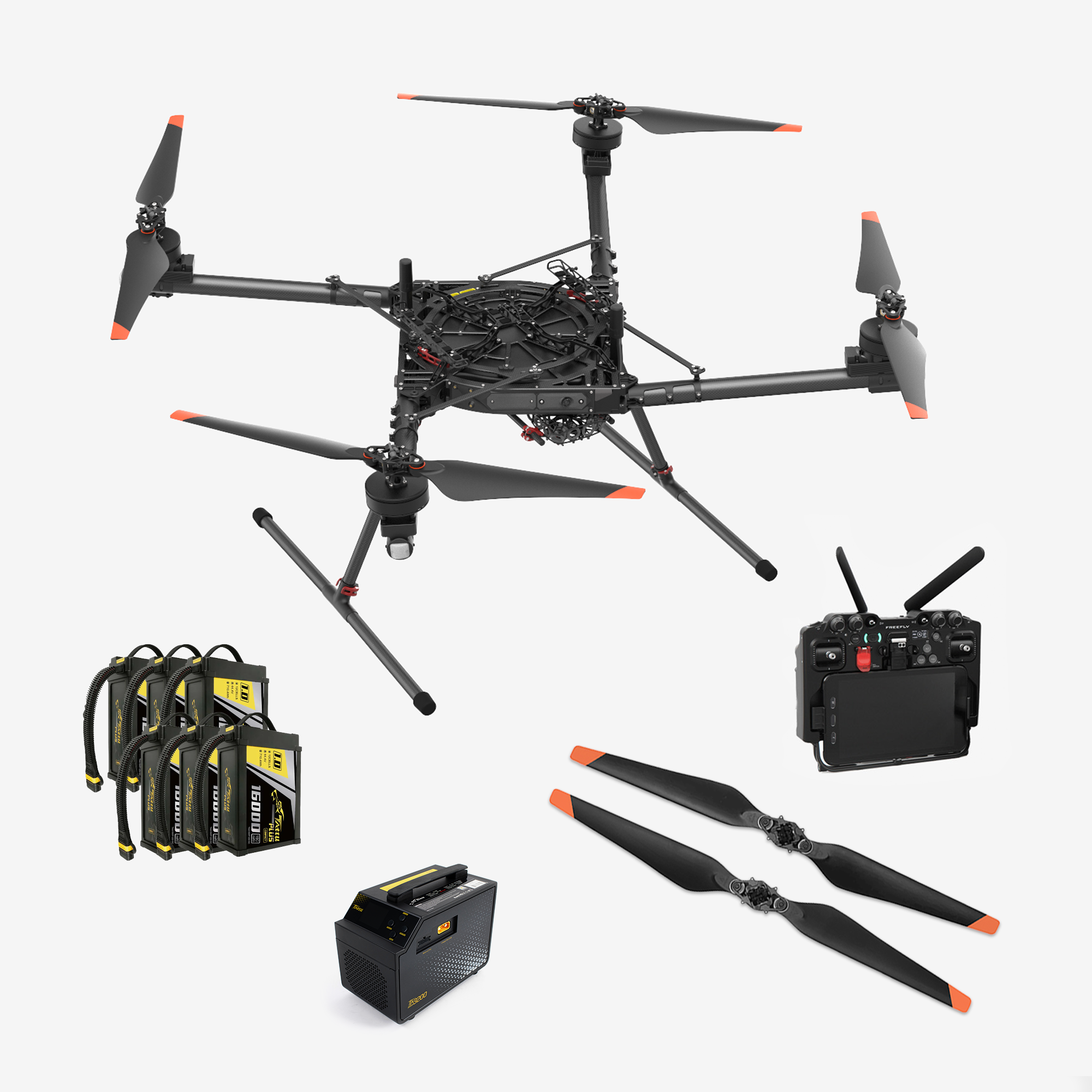

• Qty 1 - Alta X Gen2 travel case with custom modular insert:
  • Qty 1 - Alta X Gen2 (with props and Herelink radio installed)
  • Qty 1 each - Hex drivers: 2 mm, 2.5 mm, 3 mm
  • Qty 4 - Velcro prop straps
  • Qty 1 - Spare parts kit
  • Qty 1 - Pilot Pro controller with Herelink radio installed
  • Qty 1 - Skid Landing Gear (Alta X) (medium legs only), mounts installed
  • Qty 1 - 12 mm Rail Payload Mount Kit (Alta X), installed
• Qty 6 - Alta X Gen2 12S Flight Battery (3 pairs)
• Qty 1 - Tattu TA3200 Dual-Channel Smart Charger (charges two batteries at a time)
• Qty 1 each - Replacement ActiveBlades (CW and CCW)

For a full list of sensors and payloads that have been integrated or operated with Alta X Gen2, check out our Drone Payloads page, and filter by Alta X Gen2.

RGB Sensors

• Freefly LR1 Payload (NDAA/Blue)
• Lenses we've tested with LR1
  • Sigma 24mm F3.5 (included with LR1 payload)
  • Sony FE 35mm F2.8
  • Sony FE 50mm F1.8
  • Samyang 75mm F1.8
• Sentera 65R Sensor (NDAA)

Thermal Sensors

• Freefly LR1 Thermal Upgrade* (NDAA)
• Sentera 6X Thermal Sensor** (NDAA)
• Sentera 6X Thermal Pro**

Multispectral Sensors

• Sentera 6X Multispectral Sensor** (NDAA/Blue)

Distance Sensors

• Freefly LR1 Laser Range Finder Upgrade* (NDAA)

LiDAR

• Freefly Flux L1 (with optional GNSS Mount)
• Freefly Flux O1 (with optional GNSS Mount) (NDAA)
• Freefly Flux H1 (with optional GNSS Mount)
• Emesent Hovermap ST-X**

Power Solutions

• Batteries, Chargers, and Adapters

Landing Gear & Payload Mounting

• Landing Gear Ecosystem
• Mounting Options

Spare Parts

• Replacement Parts Full List
• CW Single Motor Propeller Set for Alta X
• CCW Single Motor Propeller Set for Alta X
• CW Single Motor Propeller Set with ActiveBlade (M4 Fasteners)
• CCW Single Motor Propeller Set with ActiveBlade (M4 Fasteners)

Not compatible with:

• CW Single Motor Propeller Set with ActiveBlade (M12 motors)
• CCW Single Motor Propeller Set with ActiveBlade (M12 motors)

*The LR1 Laser Range Finder Upgrade (910-00841) and LR1 Thermal Upgrade (910-00840) are modules for the LR1 Payload and cannot be used on Astro without the LR1.

**Coming soon! Just waiting on a new sensor mount for Alta X Gen2

• Standard Remote ID - YES
  • Ships with Remote ID preinstalled and configured for FAA Standard Remote ID compliance
  • FAA Compliant for Beyond Visual Line of Sight (BVLOS)
• FCC DA 25-1086 - YES
  • Alta X Gen2 ships with FCC approved critical components
• NDAA - NO
  • Alta X Gen2 drone - Compliant
  • Pilot Pro - Complaint
  • Herelink radio link- Not compliant

• DIU Blue - NO

  • Alta X - Not Compliant
  • Pilot Pro Controller - Compliant
  • Herelink radio link - Not Compliant

• Alta X Gen2 Wiki - Operational guide
