Sentera 6X Thermal Pro Sensor with Gimbal (Smart Dovetail)
Product Details

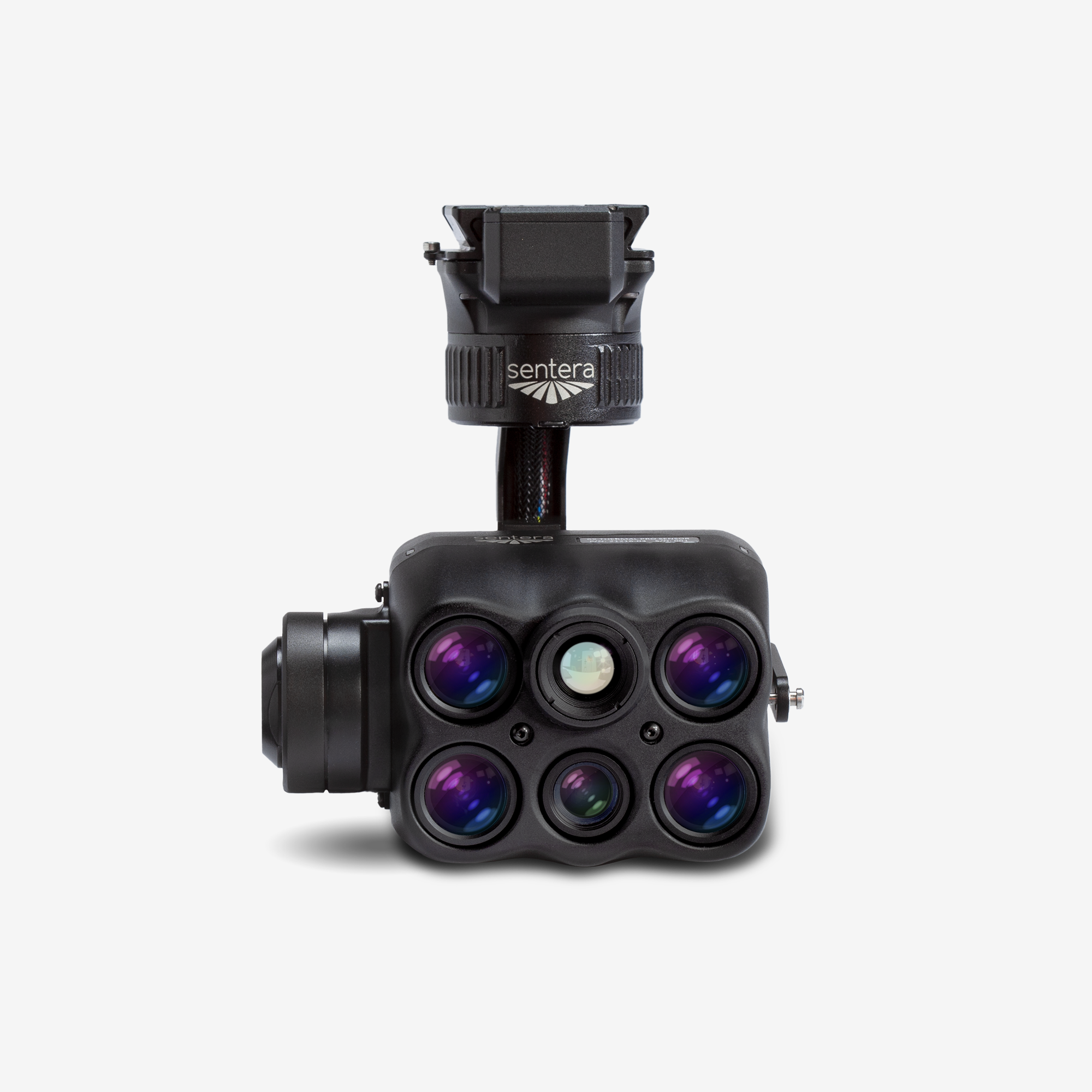

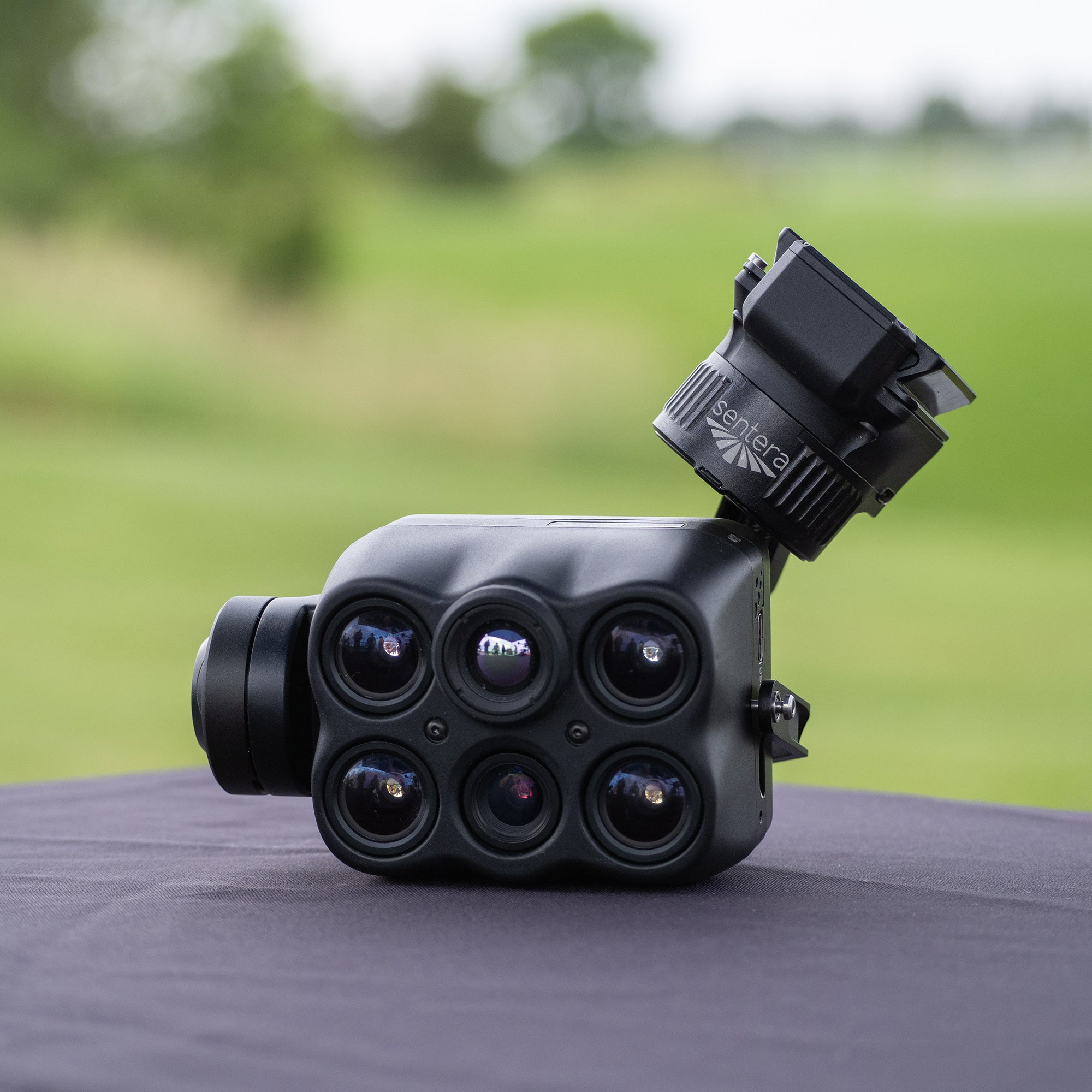

Sentera 6X Thermal Pro Sensor: Precision and Clarity Redefined
With four 3.2MP multispectral imagers, a 20MP RGB imager, and a FLIR Boson 640 thermal imager, the 6X Thermal Pro delivers four times the resolution of the 6X Thermal, ensuring unparalleled data accuracy. Its ultra-lightweight, gimbaled design, high capture rate, and 512GB internal SSD storage maximize productivity and efficiency.
Ideal for advanced analytics, it seamlessly integrates data into common software platforms, empowering agronomists, researchers, and industry professionals to make informed decisions based on precise and accurate data. The Sentera 6X Thermal Pro sets a new standard in multi-sensing data capture.
Features
- Synchronized and aligned image capture
- 5 frames per second sustained capture rate
- Simple install on Astro with Smart Dovetail quick release
- Optional ambient color correction
- Optimal data products for manipulation and distribution
Sentera PN: 21930-13
Image Sensors
- 5 FPS Sustained Capture Rate
- Synchronized and Aligned Image Capture
- Four Multispectral Sensors
- 3.2MP (Sony IMX265) IMX265Sony IMX265Sony
- Global Shutter
- GSD at 200 ft / 60 m: 1.0 in / 2.6 cm
- 47˚ FOV
- Image Format - 12-bit TIFF
- Filter/Sensitivity*
Green: 550nm center, 20 nm bandwidth
Red: 670 nm center, 30 nm bandwidth
Red Edge: 715 nm center, 10 nm bandwidth
NIR: 840 nm center, 20 nm bandwidth
- Single RGB Sensor
- 20MP (Sony IMX147)
- Rolling Shutter
- GSD at 200 ft / 60 m: 0.4 in / 1 cm
- 47˚ FOV
- Image Format - 8-bit JPEG
- Filter/Sensitivity*
- IR Cut 650 nm
- Single Radiometric Sensor
- FLIR Boson 640 x 512 LWIR
Thermal Accuracy: +/- 5C
- GSD at 200 ft / 60 m: 3.4 in / 8.75 cm
- 50˚ FOV
- Image Format - 16-bit TIFF
- Filter/Sensitivity*
- 8 µm to 14 µm
Storage
- 512GB Internal SSD
MicroSD (logging data)
Interfaces
- Freefly Smart Dovetail (on lightweight gimbal)
- USB-C
- Gigabit Ethernet
Dimensions (with with gimbal) 557.6
- Weight: 525g
- Add 58g if using included incident light sensor (ILS)
*Want custom filtering? Sentera does support custom filter options for 6X. See their support documentation for information.
- Travel Case w/ Custom Foam
- 6X Thermal Pro Sensor
- Gimbal with Smart Dovetail
- Incident Light Sensor & GPS
- Calibrated Reflectance Panel
- Light Sensor Mounting Kit
- 10ft USB-C Cable
- AC Wall Power Adapter
- Right Angle USB-C adapter

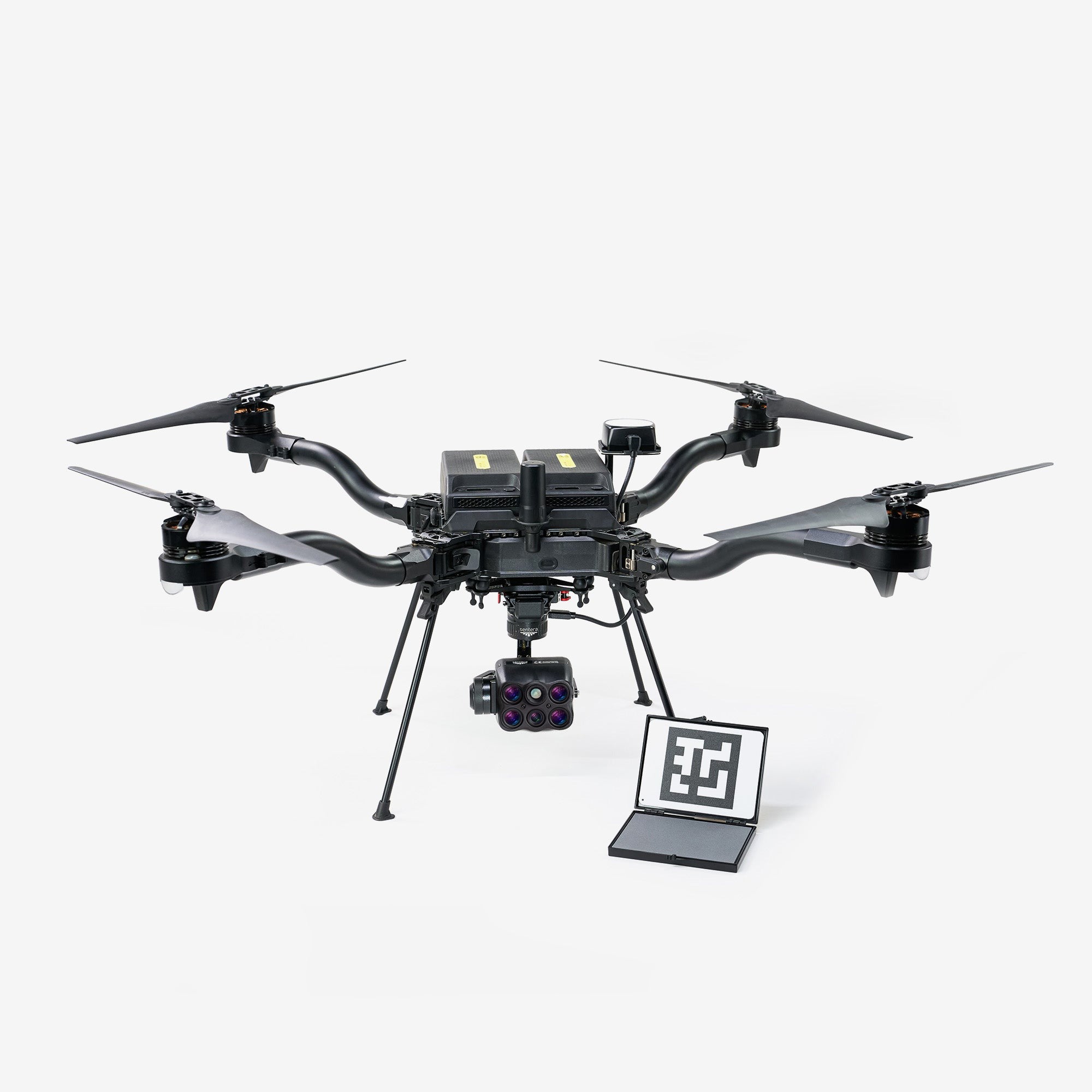

- Any Astro drone equipped with an Astro Isolator
- Sentera 6X Thermal Pro is NDAA compliant
