LR1 Thermal Upgrade
Product Details
Add-on camera module to add LWIR thermal imaging to your LR1 payload on Astro!

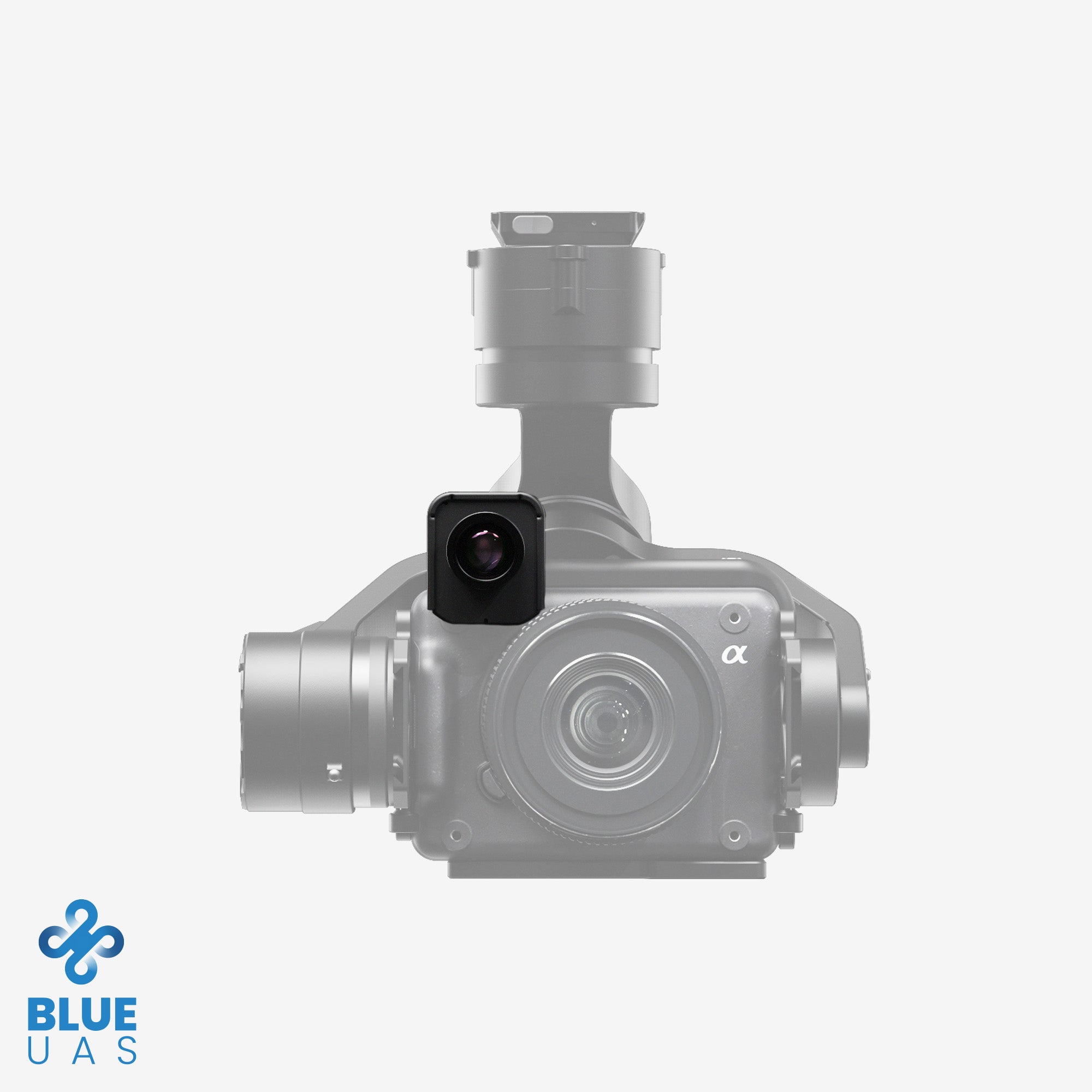

This thermal module and its specific counterweight* is user installable and mounts to the LR1 Payload with 4+3 screws and plugs into the expansion port. Once installed, users can switch between the main LR1 camera and thermal camera through Astro's live video feed.
*Use of both Thermal and LRF modules at the same time on the LR1 will require a specific combined payload counterweight, sold separately.
Flir Boson 640
640 x 512 resolution Radiometric LWIR camera
13.6mm (63mm full frame equivalent) lens
92g installed weight
Geotagged images
Spot metering

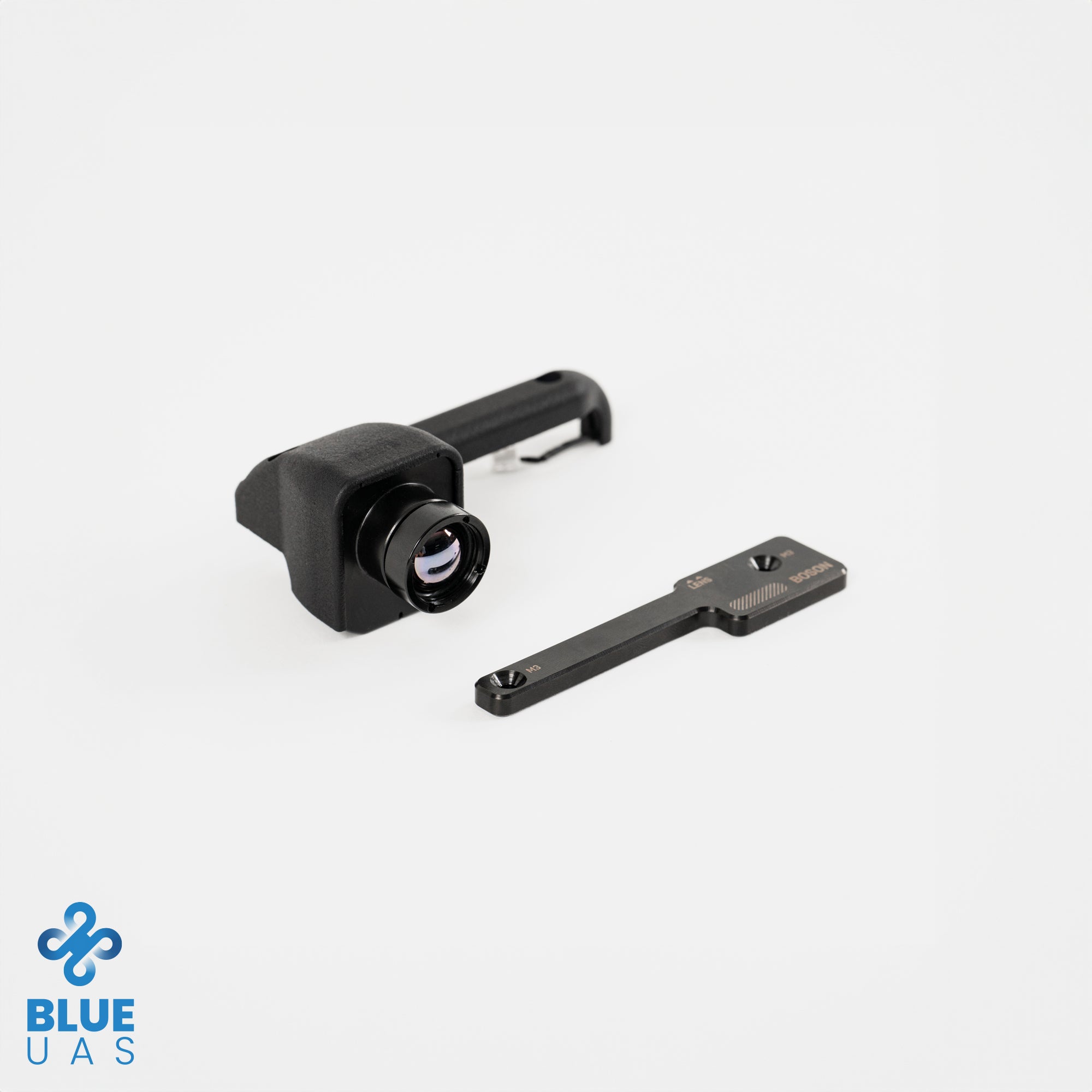

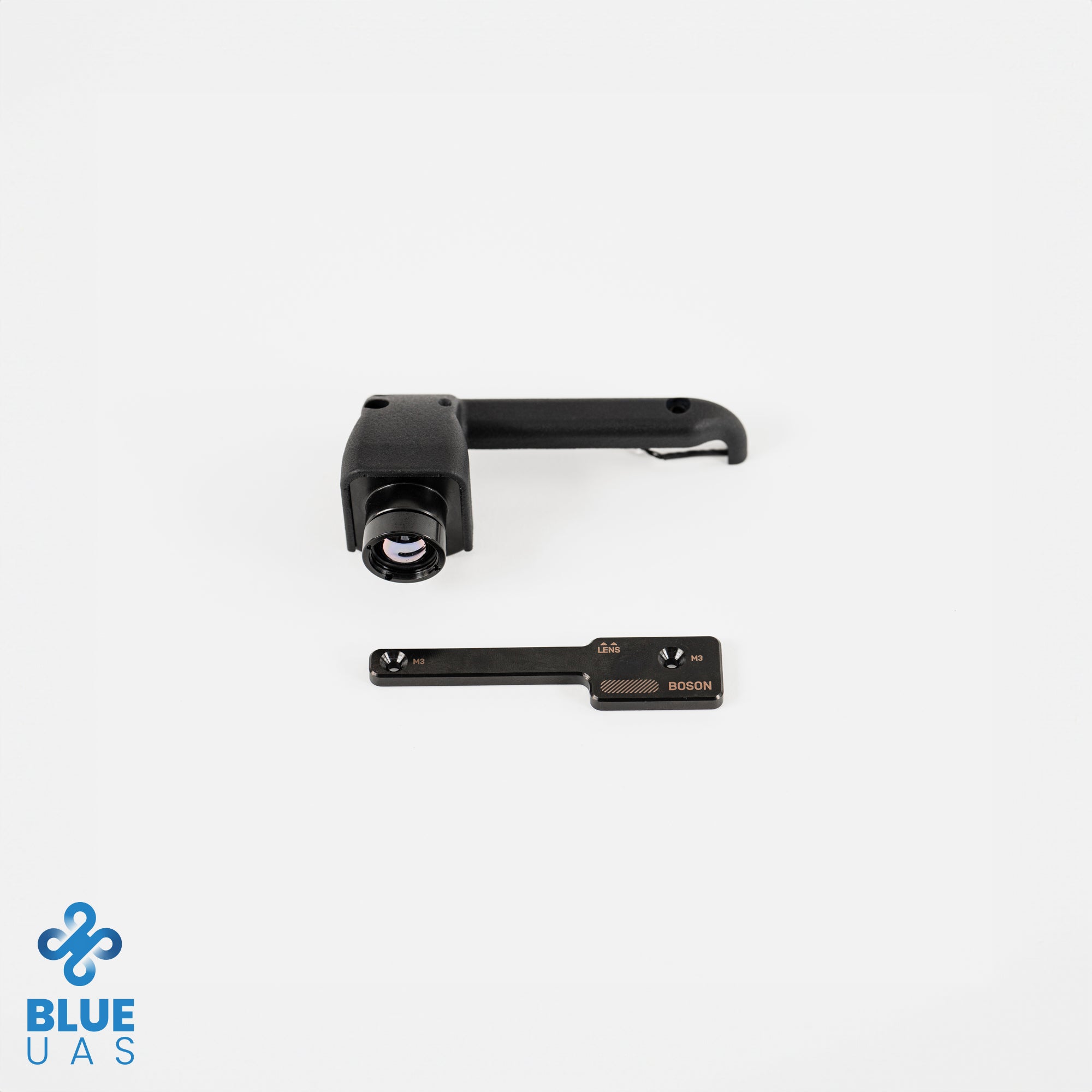

Qty 1 - Thermal Module for LR1 [Flir Boson 640R]
Camera mounting screws
Qty 4 - M3 x 10 SHCS
Counterweight mounting screws
Qty 3 - M3 x 8 FHCS
Qty 1 - Thermal module counterweight
The LR1 Laser Range Finder Upgrade (910-00841) and LR1 Thermal Upgrade (910-00840) can be used together with LR1 Payload and an optional, larger counterweight, sold separately.
