LR1 Laser Range Finder Upgrade
Product Details

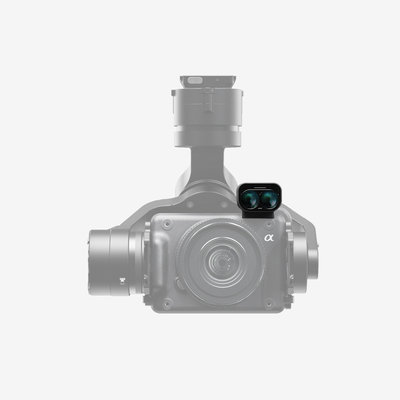

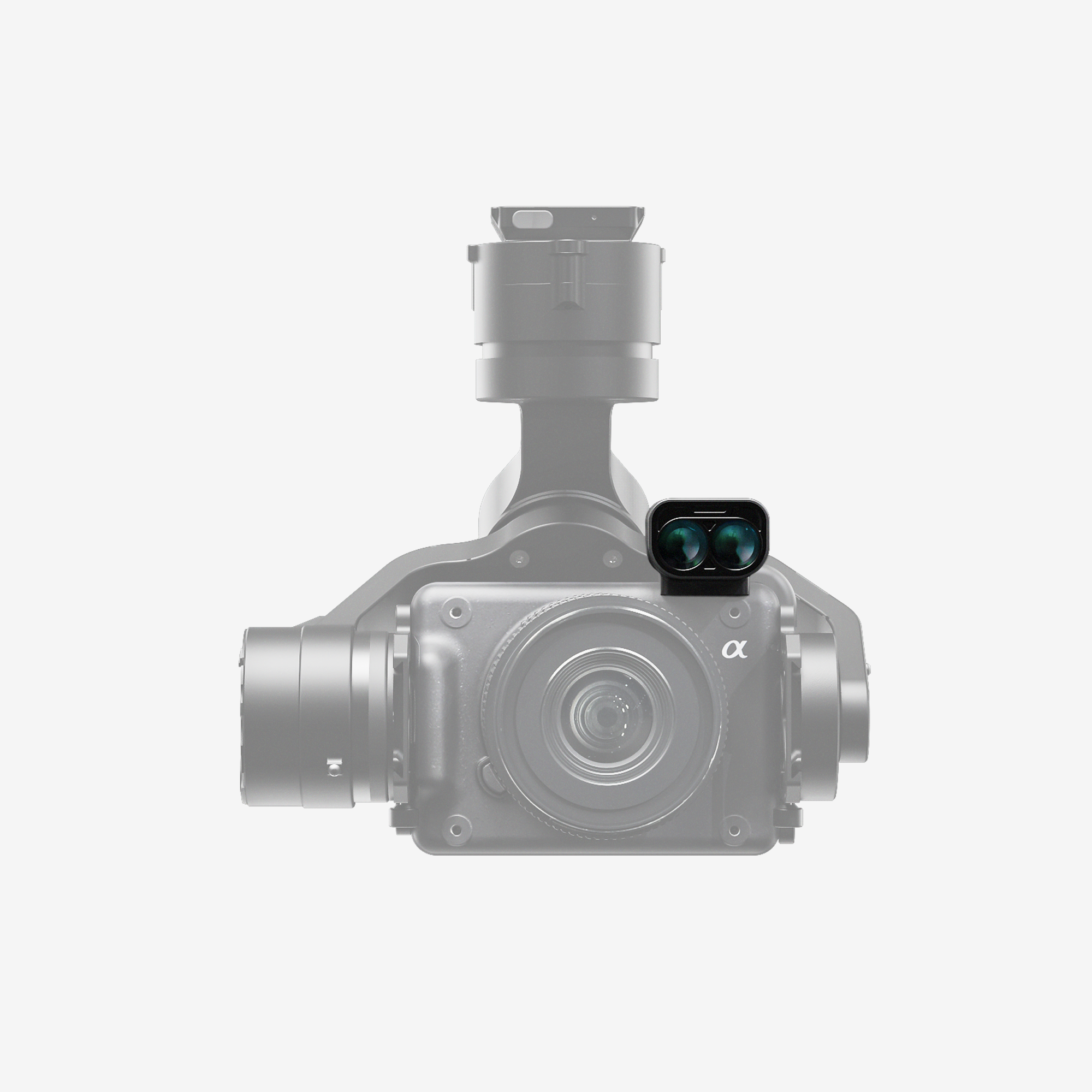

Add-on distance sensor module for the LR1 payload on Astro!
This LRF accessory and its specific counterweight* is user installable and mounts to the LR1 Payload with 4 screws and plugs into the expansion port.
Once installed, a live preview of the distance readout is displayed in AMC.** When a photo is captured, the distance readout at that time is also saved in the image metadata.
*Use of both Thermal and LRF modules at the same time on the LR1 will require a specific combined payload counterweight, sold separately.
**The use of the distance sensor requires an additional app to be installed on Astro.
Integrated Lightware SF20/C sensor
Maximum Range - 100 meters @70% reflectivity
Update Rate - 5Hz in AMC
Weight
45g installed
Qty 1 - Distance Sensor Module for LR1
Sensor mounting screws
Qty 2 - M3 x 5 BHCS
Qty 2 - M3 x 10 SHCS
Counterweight mounting screws
Qty 3 - M3 x 8 FHCS
Qty 1 - Sensor module counterweight
The LR1 Laser Range Finder Upgrade (910-00841) and LR1 Thermal Upgrade (910-00840) can be used together with LR1 Payload and an optional larger counterweight, sold separately.
