MōVI Wheels

Not in stock - expected to be available after July 7th. Freefly ships complete orders. Including any Wheels variant on your order will delay the entire shipment.

MōVI Wheels | Two Wheels | Stainless Steel

$9999.99

MōVI Wheels

from $1,495.00 | SKU: 950-00086

State-of-the-art wheel controller connecting cutting edge cinema robotics with classic controls.

Not in stock - expected to be available after July 7th. Freefly ships complete orders. Including any Wheels variant on your order will delay the entire shipment.

MōVI Wheels | Two Wheels | Stainless Steel

$9999.99

Take a Closer Look

Control at Every Turn

The MōVI Ecosystem has redefined what a small crew can accomplish in a day. With our new Wheels system, we simplify the combination of cutting edge cinema robots with classic controls.

Personalize your Setup

MōVI Wheels feature a modular, adjustable mounting system that allows the user to quickly position each wheel module for maximum comfort. Easily adjust wheel friction, gear ratios, and toggle wheel modules on the fly.

Precision meets Simplicity

MōVI Wheels are optimized to work seamlessly with the MōVI ecosystem. When you switch to wheels control, MōVI parameters automatically adjust to give the most connected, precise and repeatable feel possible.

Expandable Architecture

MōVI Wheels feature a high-speed CAN network that allows you to add up to 9 modules to the system—control Pan / Tilt / Roll / Focus / Iris / Zoom as well as just about any future control input in our robotics ecosystem.

Ecosystem you can Count On

The relationship between an operator and their controls is a sacred one. We’ve thought long and hard about the user interaction with this system to help the operator create stunning shots reliably. MōVI Wheels are built to be simple, robust, and a joy to use each and every time.

Product Details

In the Box

MōVI Wheels (1 axis)

  • MōVI Wheel Module (1)
  • Quick Release 25mm Post
  • 1/4-20 Socket Head Cap Screw (2)
  • CAN Cable (250mm)
  • MōVI Controller to Wheel UART Cable (500mm)
  • MIMIC to Wheel UART Cable (300mm)
  • USB A to USB C Cable (1m)
  • USB C to USB C Cable (1m)

MōVI Wheels (2 axis)

  • MōVI Wheel Module (2)

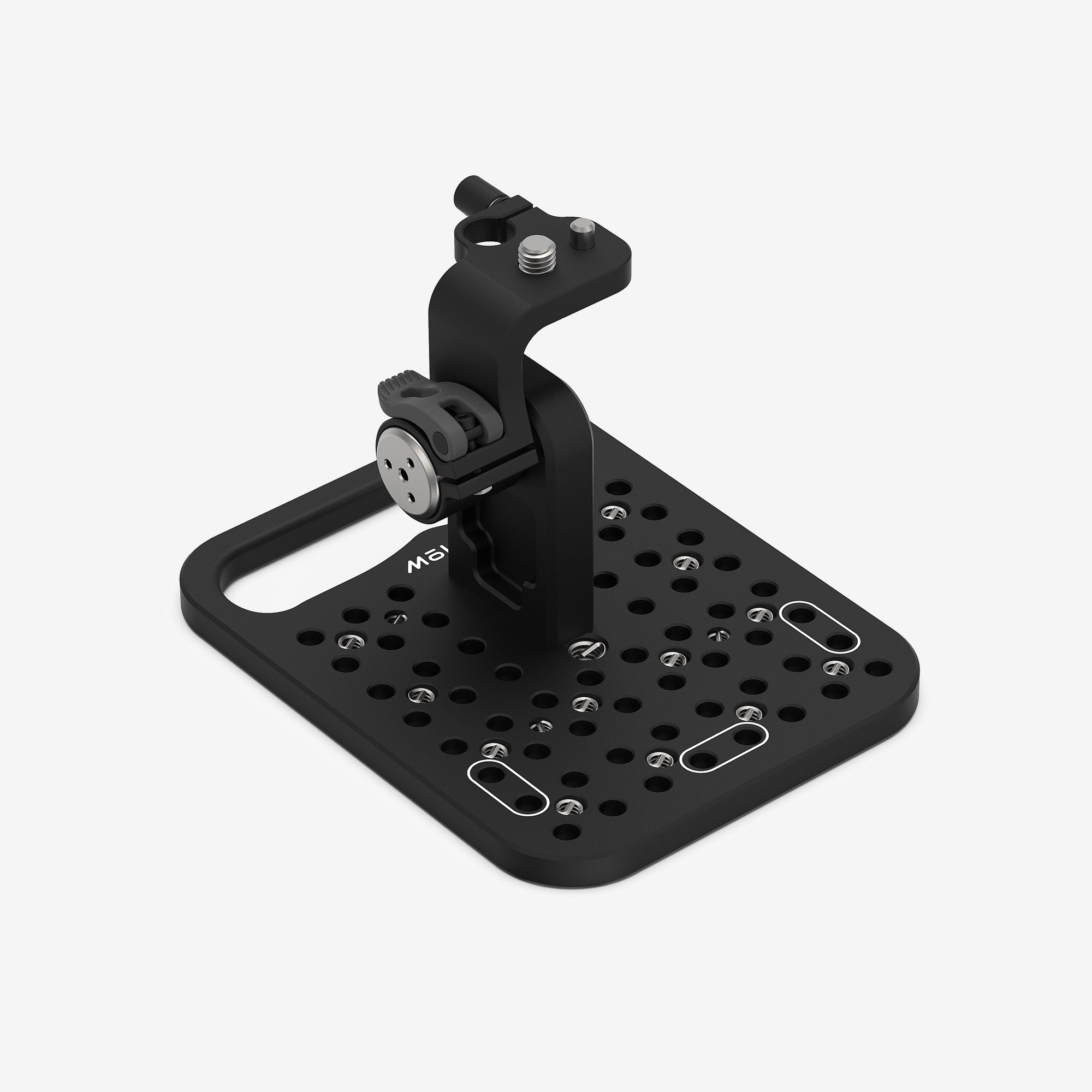

  • Cheeseplate with MōVI Controller Mount Bracket
  • Quick Release 25mm Post (2)
  • 1/4-20 Socket Head Cap Screw (4)
  • CAN Cable (250mm)
  • MōVI Controller to Wheel UART Cable (500mm)
  • MIMIC to Wheel UART Cable (300mm)
  • USB A to USB C Cable (1m)
  • USB C to USB C Cable (1m)
  • 5/32" Driver
  • 3/16" Driver

MōVI Wheels (3 axis)

Includes all items listed for MōVI Wheels (1 axis) and MōVI Wheels (2 axis).

Notes

Software to support MIMIC compatibility and control of the roll axis is available in the Blackjack 2.0 firmware release. All necessary hardware will be included with your order.

Specifications

Performance
  • Long range wireless control
  • High speed plug n play CAN network
  • Break single wheel off, or setup with multiple for complex system
  • Compatible with entire Freefly Ecosystem (Requires Movi Controller, or MIMIC)
Mechanical
  • Robust machined enclosures
  • Versatile and adjustable mounting options
    • 25mm tool less adjustable mounting post
    • Integrated Rosette mounting option
  • Wheel position can be fine tuned for user preference
  • Friction lock allows user to define wheel friction / lock out wheel
Input
  • CAN
  • USB C
  • UART (5V)
  • Speed Knob
  • Pause Button
Output
  • CAN (12v)
  • USB C
  • UART
  • Tri color LED
Sensors
  • 16 bit magnetic encoder is robust, precise, and compact
Expandability
  • Daisy chain up to 9 modules (including pilot modules)
Software
  • Tuned to optimally control MōVI product line
  • User updatable firmware via internal mass storage drive
Usability
  • Quickly control wheel direction, gearing, or kill wheel
  • Designed for minimum latency
  • Absolute position control of MōVI pointing
  • Easily assign any wheel to any axis regardless of its connection
  • Mix wheels and pilot modules for maximum flexibility
Compatible with
  • Mimic
  • MōVI Controller (Requires MōVI Controller firmware version 3.7.0 or later)
  • Pilot
Controls
  • MōVI Pro
  • MōVI XL
  • MōVI Carbon
  • M5 / M10 / M15
