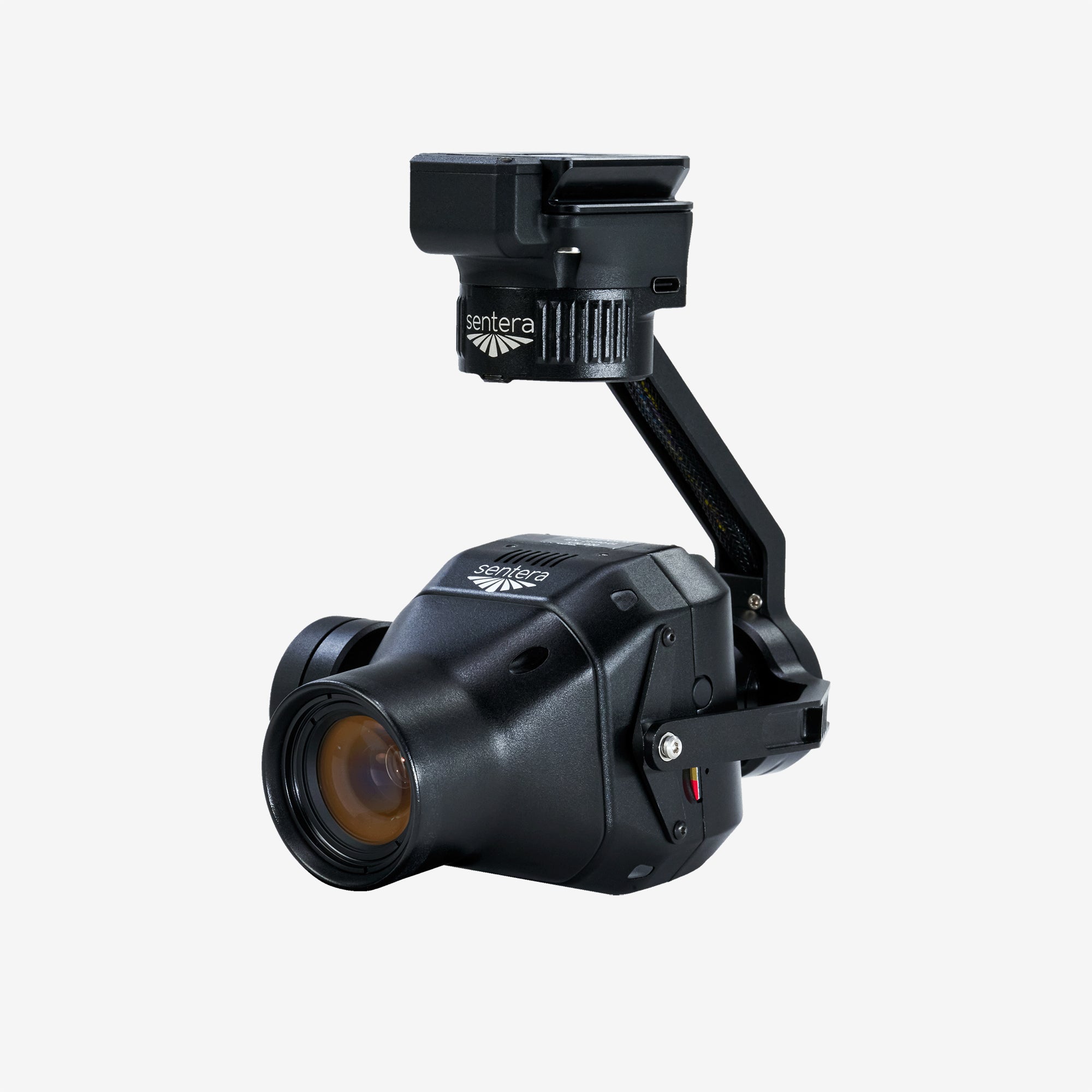

Sentera 65R Sensor with Gimbal (Smart Dovetail)
Product Details

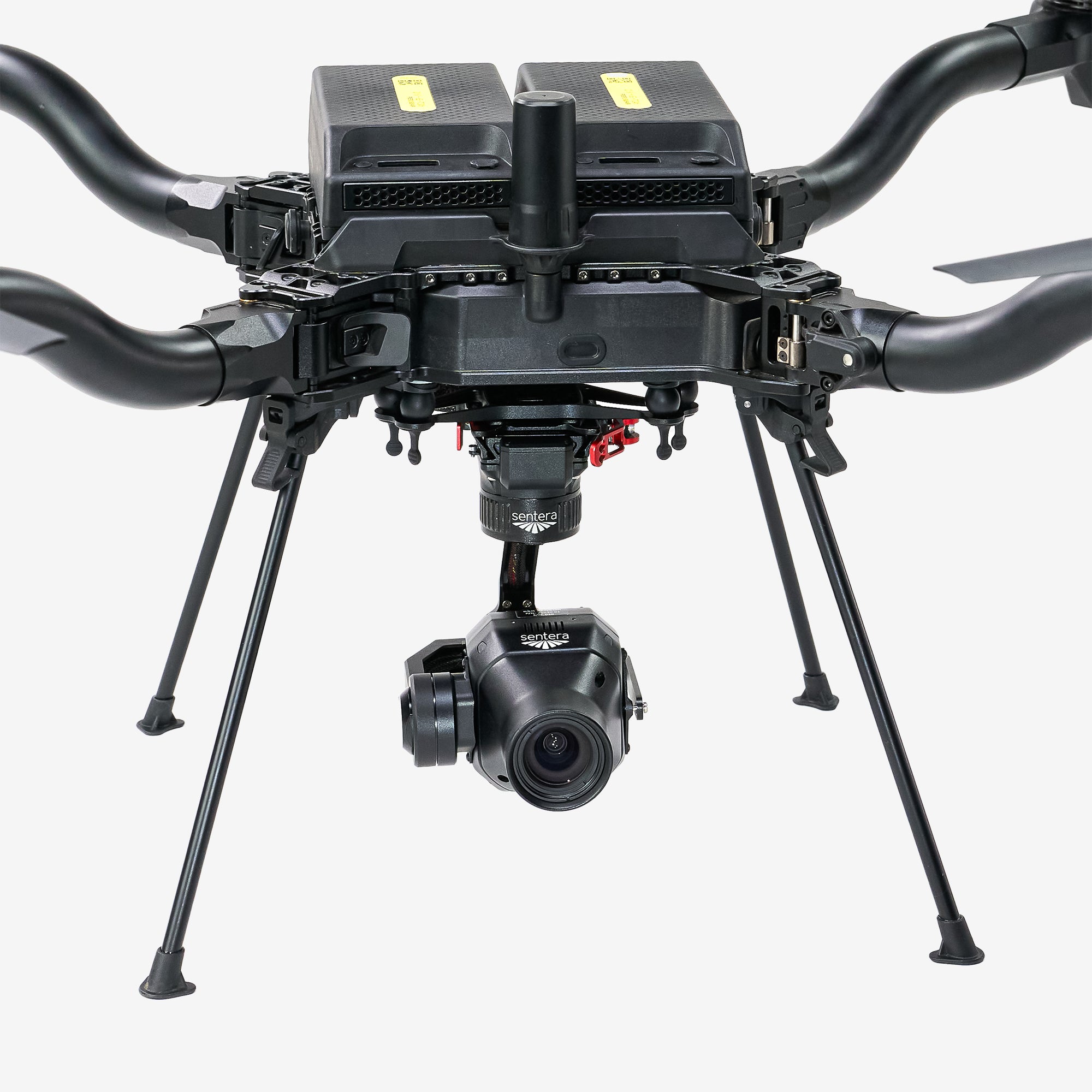

The first ultra-high-resolution aerial RGB sensor in its class to deliver seamless drone integration without compromising image quality is now integrated with Astro! Capture 65-megapixel global shutter imagery at a sustained 3 Hz rate for exceptional visual-band images.
With ample 512GB high-speed internal storage, high-rate capture speed, and gimbal stabilization, it enables longer flights, covering more area. Unmatched in its class, the 65R provides outstanding value, ensuring optimal results for every project.
Features
- Integrated IMU
- Pushbutton Trigger Option
- Freefly Smart Dovetail Quick-Release
- Focal Length - 27 mm (standard)
Sentera PN: 21931-02
Image Sensor
- Gpixel GMAX3265
- Resolution - 9344 x 7000
- Pixel Size - 3.2 µm
- Shutter: Global
- Image Format: JPEG
- Frame Rate - 3FPS
Lens
- Focal Length - 27mm
- FOV: 57.6° x 44.8°
- GSD at 120m/400': 1.43cm/0.56"
Interfaces
- Freefly Smart Dovetail
- USB-C
- Gigabit Ethernet
- UART
- Digital I/O
- Input Pulse/PWM for Image Capture
- Input Pulse Per Second (PPS) for Time/Position Sync
- Output Pulse for Image Exposure Sync
- Power input - 9-26V Input, 12W Typical
Dimensions (with lens) 557.6
- Physical dims - 2.50” x 2.48” x 4.19”
- Weight - 588g / 20.74oz
- Storage - 512 GB Internal PCle NVMe
- Travel Case w/ Custom Foam
- 65R Sensor
- Gimbal with Smart Dovetail
- 10ft USB-C Cable
- AC Wall Power Adapter
- Right Angle USB-C adapter
- Astro Base equipped with Astro Isolator
