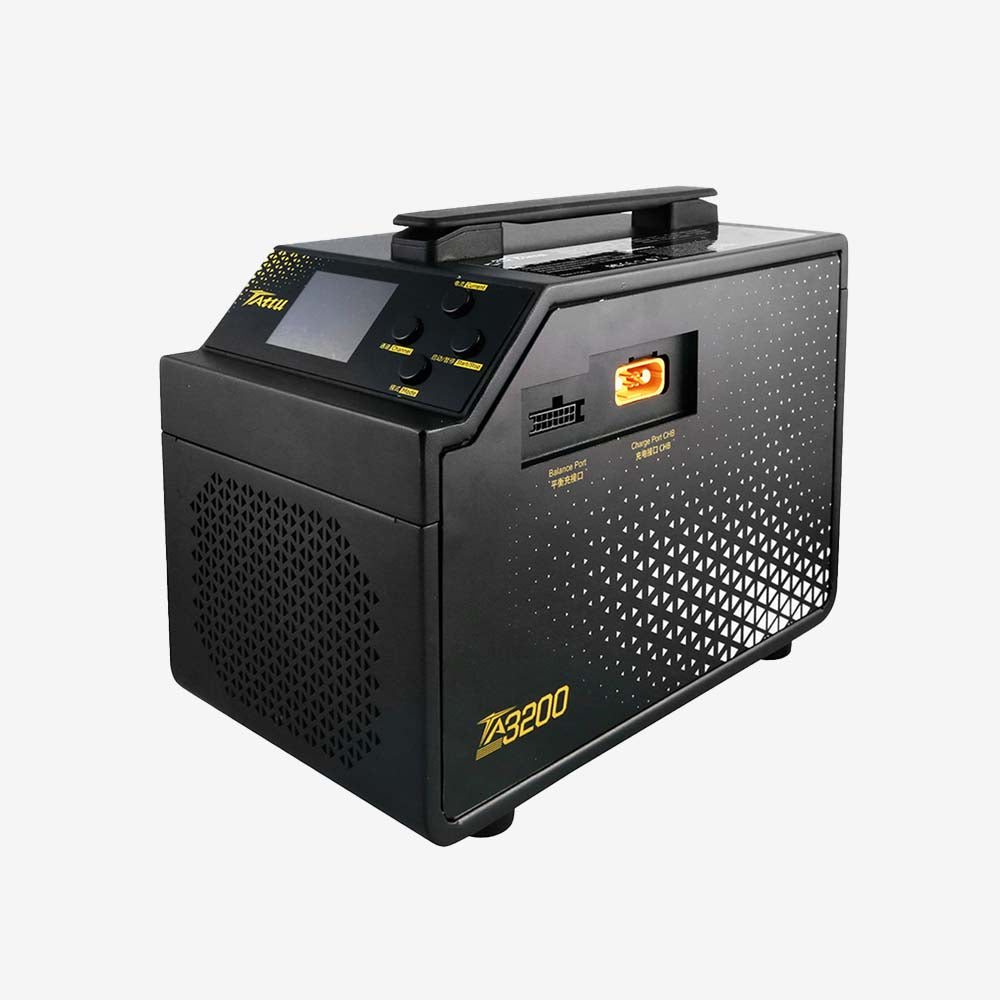

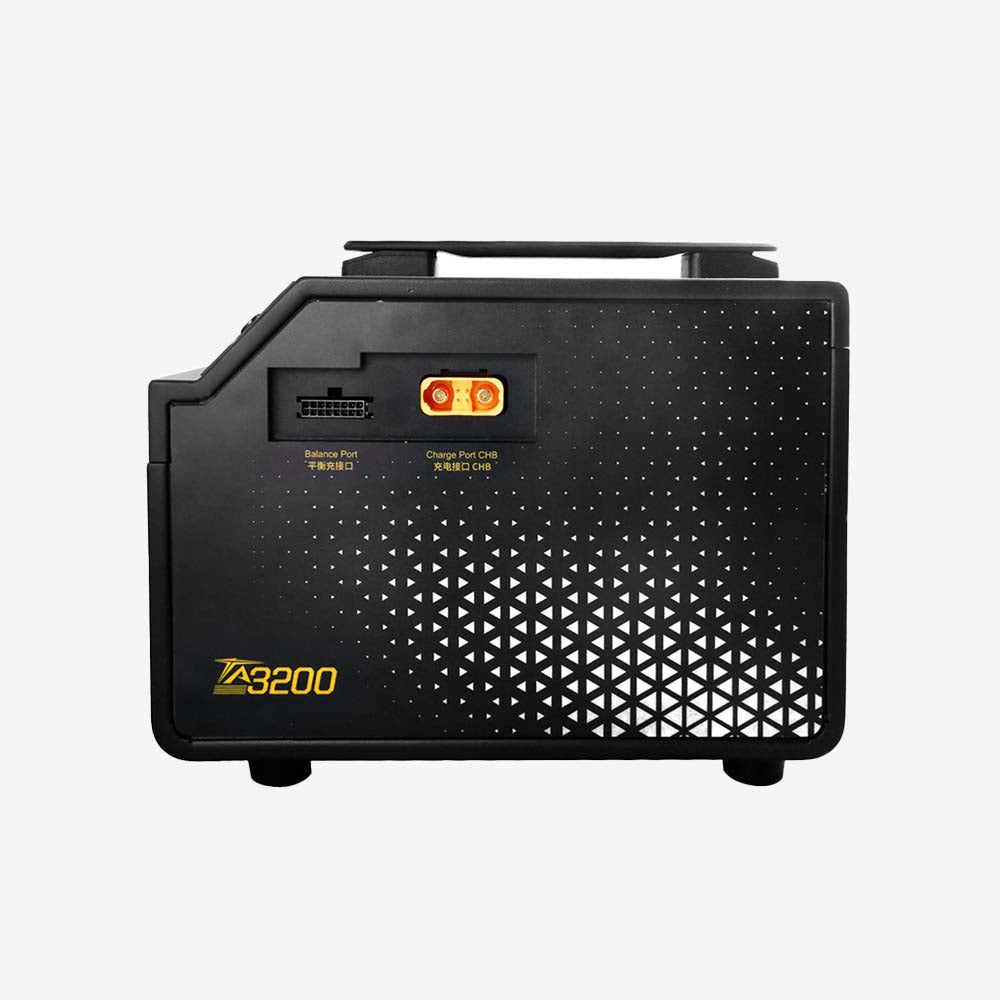

Tattu TA3200 Dual-Channel Smart Charger (Alta X Gen2)
Product Details
The TA3200 Smart Charger is purpose-built for efficiently supporting Alta X Gen2 operators running Tattu batteries. With dual high-power channels delivering up to 3200W / 60A, the TA3200 makes charging a pair of flight batteries fast, safe, and simple. Smart communication ensures each pack is recognized instantly, while advanced safety protocols manage balancing, temperature, and abnormal state alerts automatically.
Choose from fast charge, normal charge, or storage mode depending on your workflow. The charger intelligently optimized for LiPo batteries, with selectable current levels based on your AC input. Whether you’re cycling packs in the field or prepping them for long-term storage, the TA3200 keeps your Alta X Gen2 batteries healthy and ready for flight.
We include all necessary cabling and accessories to allow users to charge two Alta X Flight Packs at once.
Features
- Dual Charging
- Integrated power supply
- Cell balancing
- Slow/Normal/Fast charge speeds (max varies based on input)
- Charge and discharge modes
- Automatic voltage switching (100V-240V)
- USB A port allows for the latest software updates
- AC Input: 100V-240V 50/60Hz 15A
- Charge power max - 3200W (with 240V input) / 1600W (with 120V input) split between both channels
- Discharge power max - 70Wx2
- Discharge current max: 3A
- Charge current range per channel (10A, 15A, 20A)
- LiPo battery cell count: 6-14S
- Operating Temperature: 0-60℃ / 32-140°F
- Upgrade connectivity - USB Micro
- Size: 216 x 276 x 154 mm / 8.5 x 10.7 x 6.1"
- Weight: 6 kg / 13 lbs
- Qty 1 - Dual Channel 12S LiPo Charger
- Qty 1 - Power cable (110V US style plug)
- Connect to a TATTU Smart Battery
- Once the battery is connected to the charger, if the communication is successful, the TATTU icon on the main interface will appear in yellow. You don't need to manually set the charging current. Simply press the left key to select the working mode (Fast/Normal/Discharge), and then press and hold the right key to initiate smart charging.
