$1,320.00 | Sku: 910-00659
Need centimeter-level accuracy for your Alta X or Astro? Freefly RTK GPS utilizes Real Time Kinematic (RTK) technology to enable pin-point location accuracy vertically and horizontally.

Product Details

Add this Ground Station module to your ground station computer to unlock Real-Time Kinematic (RTK) technology for centimeter location accuracy horizontally and vertically.

Alta X with F9P GPS installed (not compatible with Here2 GPS).

RTK Overview

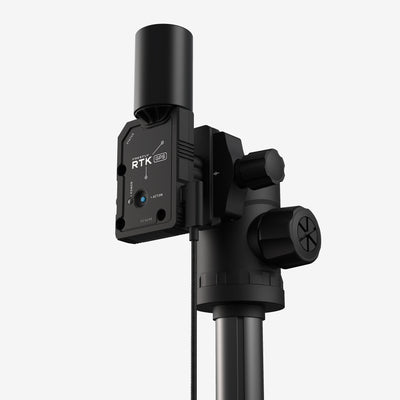

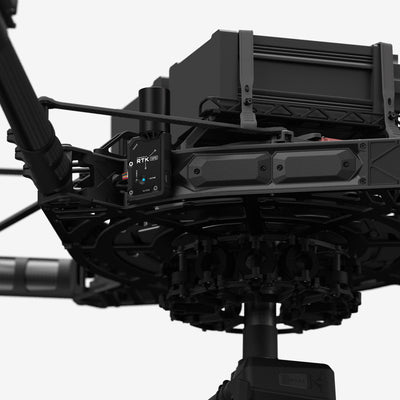

RTK technology uses a pair of modules to increase positional accuracy. One module is installed on the aircraft (this module is called the “Rover") and the other will mount on a tripod and be connected to your ground station computer (the “Ground Station” module).

The Ground Station module will let your ground station computer send GPS corrections to the Rover module (on the aircraft) that increase precision from a few meters to a few centimeters, in real-time.

Application
This kit comes with one module, magnetic mounting hardware for common tripods (1/4" 20), and a USB cable.* Here's what you will need if you have:

1. An Alta X** with F9P GPS (not Here2) and you want full RTK capability:

  • One RTK GPS Ground Station for your ground station computer***
  • A radio to communicate between the ground station computer** and the Alta (FRX Pro, etc)
  • A tripod*** or something sturdy to mount your Ground Station module to with the included magnetic adapter

2. An Alta X* with Here2 GPS, and you want fully RTK capability:

  • Two RTK GPS Ground Stations (one GPS module functions for your Rover and one for the ground station computer***)
  • A radio to communicate between the ground station computer*** and the Alta (FRX Pro, etc)
  • A tripod***  or something sturdy to mount your Ground Station module to with the included magnetic adapter

3. An Alta X* with Here2 GPS, and you just want increased GPS performance:

  • One RTK GPS Ground Station for your Alta X

4. Any Astro, and you want full RTK capability:

  • One RTK GPS Ground Station for your ground station computer***
  • A tripod*** or something sturdy to mount your Ground Station module to with the included magnetic adapter



*If your computer (MacBook Pro, etc) does not have USB A ports, you will need a USB A-C adapter or your own USB C-C cable.

**DIU Blue Versions of Alta X are not compatible with our RTK due to restrictions imposed by DIU on the firmware package.

***Ground station computer, FRX Pro, nor tripod with 1/4 20 connector are not included with this product.

  • Highest level GPS positional accuracy for Alta X and Astro
  • U-blox ZED-F9P GPS module
  • Multiband L1/L2 receiver
  • Includes IST8310 Magnetometer and BMP388 barometer, safety switch, LED, and RGB LED
  • Designed and Assembled in USA
  • Compatible with AltaSW 1.3+, PX4 1.9+, Astro
  • Not compatible with Alta 8 Pro, Alta 8 or Alta 6
  • Qty 1 - RTK GPS module
  • Qty 1 - Multi-band RTK GPS antenna
  • Qty 1 - Magnetic mounting kit for tripod, etc (¼ 20 interface)
  • Qty 4 - Mounting screws for Magnetic Mounting Kit (M3 x 6 FHCS)
  • Qty 1 - USB cable, Type C right-angle to Type A (3 m / 9.84 ft long)
  • Qty 3 - Mounting Screws for Alta X Rover installation (M3 x 16 SHCS)
  • Alta X*
    • Any variation except for DIU Blue models
  • Astro**
    • Any variation

*Will require user-supplied ground station computer, a mount for the RTK (tripod with ¼ interface), and a compatible radio link between the computer and Alta X (FRX Pro, etc).

**Will require user-supplied ground station computer, a mount for the RTK (tripod with ¼ interface).
