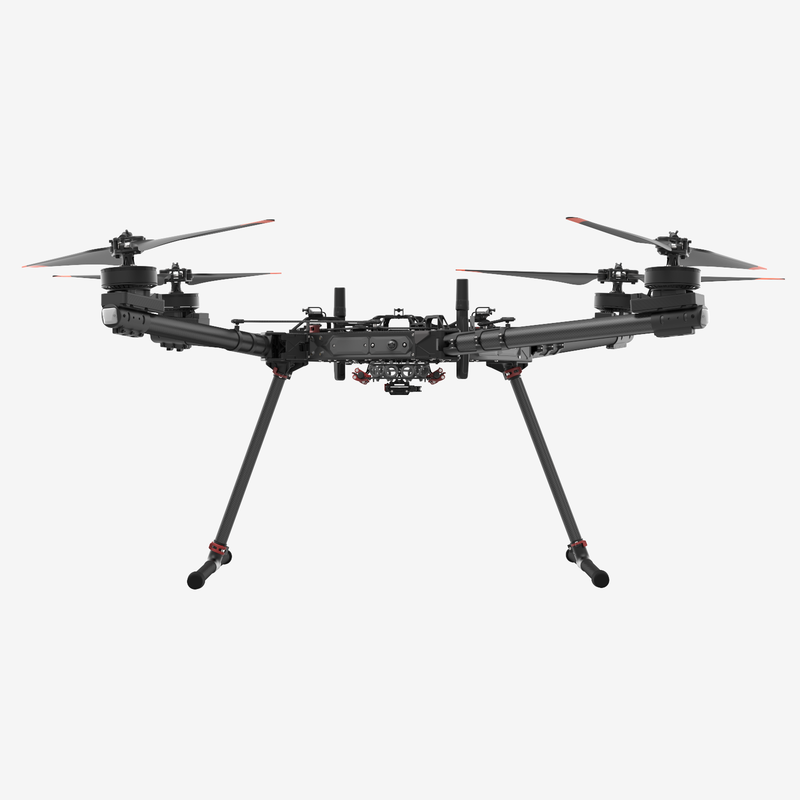

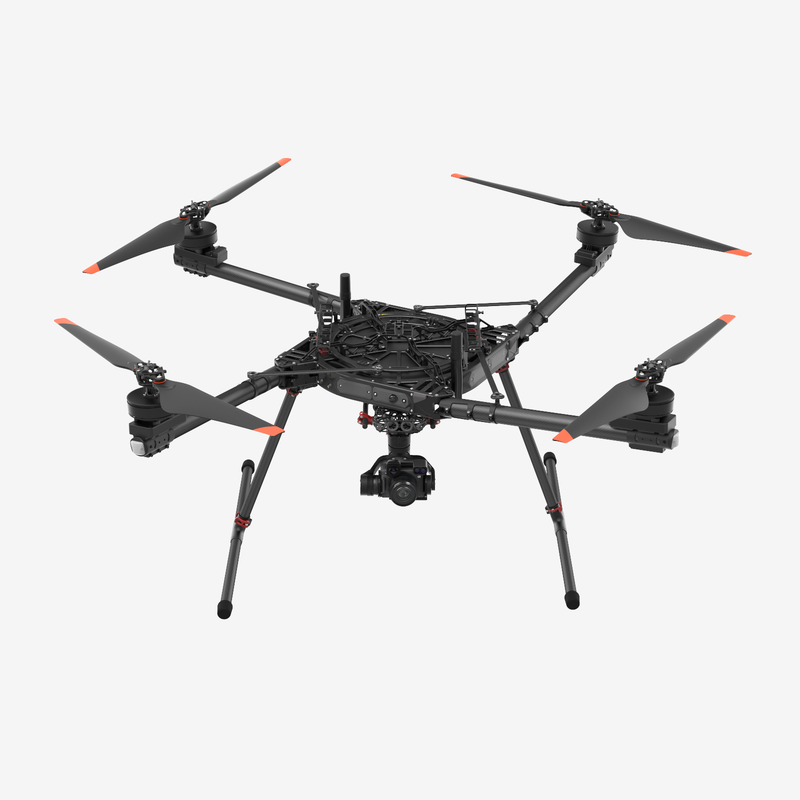

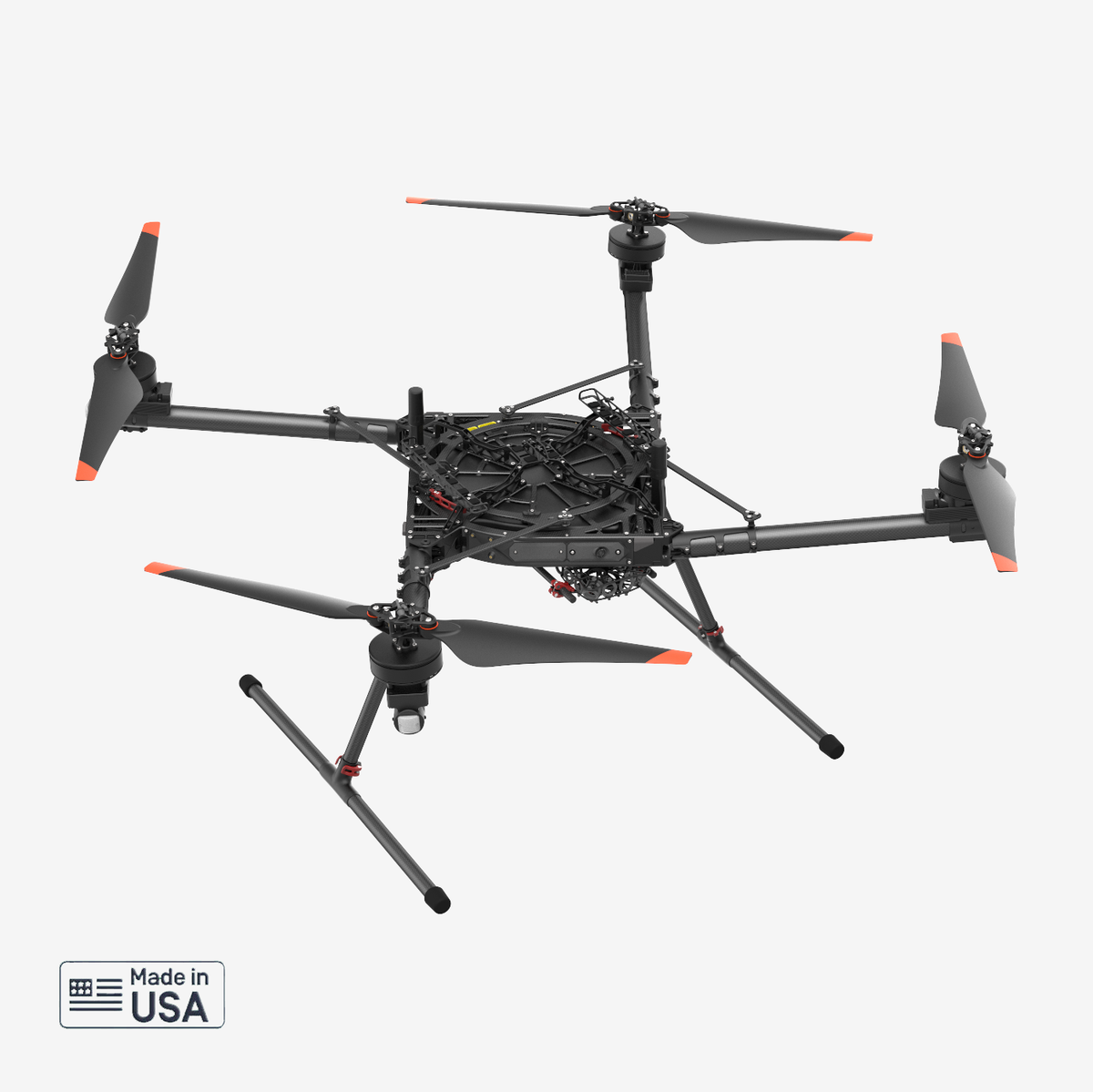

Alta X Gen2
Alta X Gen2
Product Details
The next evolution in Freefly flight is here! Alta X Gen2 combines the rugged, heavy-lift performance of the Alta X airframe with the cutting-edge flight controller, smart payload interfaces, and seamless workflow integration of Astro Max.
Engineered for professional operators who demand maximum lift, endurance, and flexibility, this new platform delivers:
- Next-Gen Autonomy & Control - Powered by the same custom Skynode in Astro Max for enhanced GPS resilience, precise navigation, and intelligent failsafes.
- 35 lb Payload Capacity - Carry large cinema rigs, advanced sensors, or multiple payloads with stability and precision.
- Smart Dovetail Payload Interface - Quick-connect options for Freefly and a growing field of third-party payloads, with expanded communication and power pathways.
- Industrial-Grade Reliability - Alta X’s proven carbon-fiber frame, weather-resistant design, and rapid field-deployable setup.
- Data-Driven Workflows - Integrated telemetry, mission planning tools, and logging for enterprise and inspection applications.
- Expanded Connectivity and Integration - Leverage the internal payload bay to add custom integrations with onboard Ethernet, regulated payload power, and onboard LTE for remote connectivity.
This is the Freefly system built for the heaviest lifts, the toughest environments, and the smartest missions.
- Custom Skynode flight controller
- Compatible with Smart Dovetail equipped payloads (LR1 for launch, more to come)
- Preconfigured with Standard Remote ID for FAA compliance

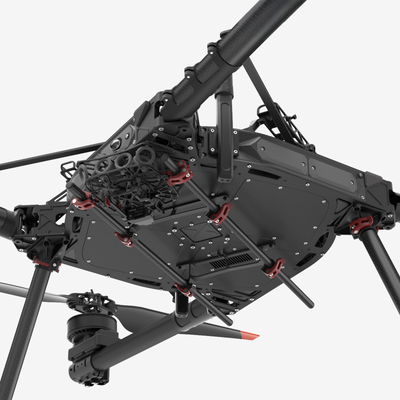

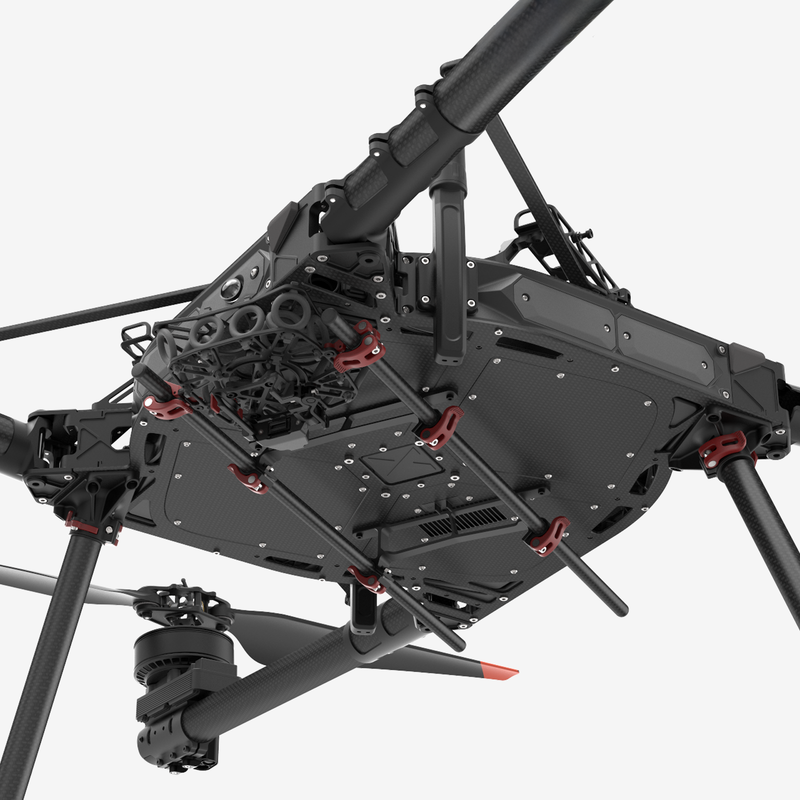

- Removable chassis panels exposes internal cargo bay for integrations
- Upgraded smart batteries (AS150) for better flight time estimation
- Pre-installed accessories to get you flying faster:
- 12mm Rail Mount for payloads up to 35lbs
- Smart Dovetail with isolated mount suited for LR1 Payload or other Smart Dovetail payloads up to 3.3lbs
- Skid Landing Gear with 380 mm / 14.97" quick release legs
- FPV camera, viewable feed on Pilot Pro
- 12V and 24V onboard regulators
- Alta X Gen2 Case that safely transports:
- Alta X Gen2 with 12mm Rails + Smart Dovetail Mount installed
- Pilot Pro
- A set of spare ActiveBlade Props
- Skid Landing Gear (with medium legs)
- Freefly Pilot Pro Controller (Herelink RF) for precise, robust drone control
Alta X Gen2 - 950-00173
- Qty 1 - Travel Case
- Qty 1 - Alta X Gen2 Airframe (Standard Remote ID, with props installed)
- Qty 1 - Extra Bits Kit
- Qty 1 - AS150U Fused adapter for safe bench configuration
- Qty 2 - Power Distribution Replacement Fuse (10A)
- Qty 1 - Spare Battery Retention Strap
- Qty 1 - USB C-C cable (1.82 m / 6')
- Qty 1 - USB-C thumb drive for (64GB)
- Qty 4 - ActiveBlade Bumper Replacements
- Qty 4 - Balance Lead Sticker Covers for Tattu AS150U Batteries (for wet weather)
- Qty 1 - Hex driver set (2.0, 2.5, 3.0mm)
- Qty 1 - Skid Landing Gear (448 mm / 17.6" legs only, with 450mm clearance from chassis to ground)
- Qty 1 - 12mm Rail Kit (installed)
- Qty 1 - Smart Dovetail with isolated mount for up to 1.5KG Freefly Payloads (installed)
- Qty 1 - Pilot Pro Controller (preconfigured for Alta X Gen 2 with Herelink radio)
Does not include
For maximum versatility for a variety of operators, Alta X Gen2 does not include batteries/chargers. We recommend:
- At least one dual channel charger plus six Alta X Gen2 batteries, per aircraft. If you cannot charge in the field and need to operate more than three flights, add one pair of batteries per additional flight planned. Each charger can charge two batteries at a time, and adding additional chargers will speed up your overall charting throughput.
For applications other than flying industrial payloads, you will need additional mounting hardware / landing gear:
- For cinema or vibration damped payloads: Payload Vibration Damper + Skyview Landing Gear + Mōvi Pro Landing Gear for your Mōvi Pro
- For Cargo: Cargo Landing Gear + Various Accy specific to your application + Short Quick Release Mount
Payload Interface
Landing Gear
Batteries & Chargers
Upgrades & Spares
- RTK GPS Ground Station
- CW Single Motor Propeller Set for Alta X
- CCW Single Motor Propeller Set for Alta X
- CW Single Motor Propeller Set with ActiveBlade (M4 Fasteners)
- CCW Single Motor Propeller Set with ActiveBlade (M4 Fasteners)
For a full list of sensors and payloads that have been integrated or operated with Alta X, check out our Drone Payloads page, and filter by "Alta X."
Not compatible with:
- Standard Remote ID - YES
- Ships with Remote ID preinstalled and configured for FAA Standard Remote ID compliance
- FAA Compliant for Beyond Visual Line of Sight (BVLOS)
- FCC DA 25-1086 - YES
- Alta X Gen2 ships with FCC approved critical components
- NDAA - NO (NDAA version here)
- Alta X Gen2 Drone - Compliant
- Pilot Pro - Complaint
- Herelink radio link - Not Compliant
DIU Blue - NO
- Alta X Gen2 Drone - In process for approval
Pilot Pro Controller - Compliant
Herelink radio link - Not Compliant
This ships with:
- Alta X Gen2 Travel Case
- Alta X Gen2 with Remote ID
- Pilot Pro controller with AMC Software (Herelink radio link)
- Skid Landing Gear (medium legs)
- 12mm payload rails with Smart Dovetail
- Simple Spare Parts Kit
- Allen tool set including 2mm, 2.5mm, 3mm
- Integrated FPV camera, and 12 & 24V accessory power
Power
Alta X Gen2 Flight Packs (AS150U)
Recommended quantity: 6
Alta X Gen2 uses two batteries per flight
Tattu TA3200 Dual-Channel Charger
Recommended quantity: 1
Charges two Alta X Gen2 batteries simultaneously without balance leads
AS150U female to XT90 Male Adapter
Utilize your existing Alta X XT90 batteries/chargers with Alta X Gen2
V-Mount Battery Plate Kit
Mounts to Pilot Pro to add V-Mount batteries for longer uninterupted ops
FXLION Nano One 50Wh Battery
Extends your Pilot Pro run time from 5hr->10hr
FXLION Nano Two 98Wh Battery
Extends your Pilot Pro run time from 5hr->13hr
Props
CW Prop Set
Replacement CW propeller set (blades only)
CCW Prop Set
Replacement CCW propeller set (blades only)
CW Single Motor Propeller Set with ActiveBlade (M4)
Recommended quantity: 1
Fully balanced CW replacement prop
CCW Single Motor Propeller Set with ActiveBlade (M4)
Recommended quantity: 1
Fully balanced CCW replacement prop
Freefly RGB, Thermal and OGI Payloads
LR1 Payload
Lightweight 61MP Sony RGB Payload
Sony FE 50mm f1.8 Lens
Inspection lens for LR1 Payload
Samyang 75mm f1.8 Lens
Telephoto inspection lens for LR1 Payload
LR1 Thermal Upgrade
Thermal add-on module for LR1 Payload
LR1 Laser Range Finder Upgrade
LRF add-on module for LR1 Payload
Ventus OGI Payload
Compact Optical Gas Imaging Payload
Spares, Extras & Add-ons
Astro includes 2 sets of installed props & 4 landing gear legs
RTK Ground Station
Centimeter-level location accuracy with user-supplied ground station computer
Payload Vibration Damper
Configurable damper for vibration sensivtive payloads (cinema, etc)
Alta X Spare Parts Kit
Various replacements for wear parts
Smart Dovetail Payload Adapter
Male dovetail adpater for 3rd party payload integrations
Freefly Armor
Exclusive protecion plan for your Freefly drone
Freefly Armor
Double your factory warranty, pre-pay for an annual check-up and get 10% off training and service.
