Mōvi Carbon (BGH1)
Mōvi Carbon
Add to Wishlist
World’s first handheld and drone mountable 5-axis camera stabilizer, now in more flavors.
Product Details

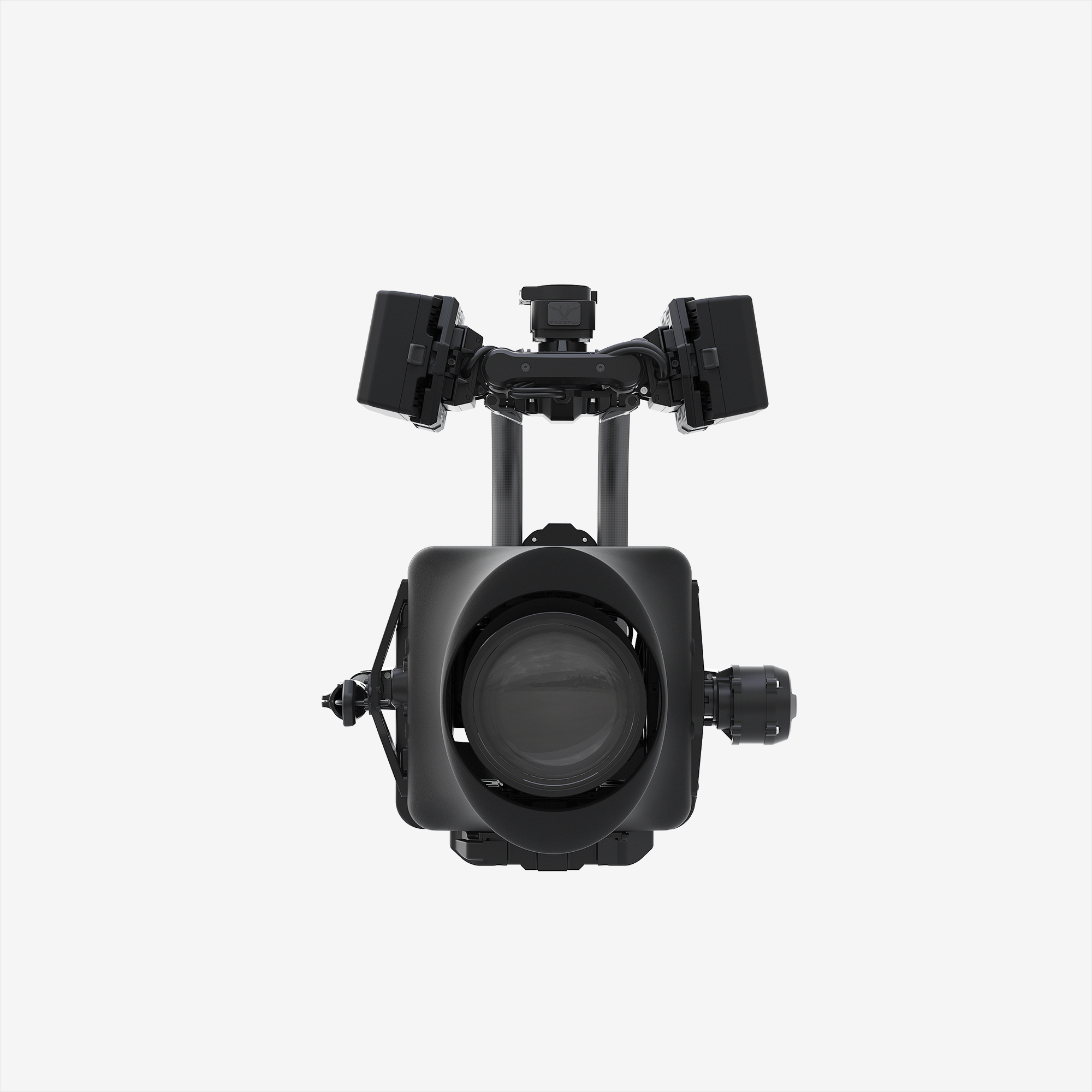

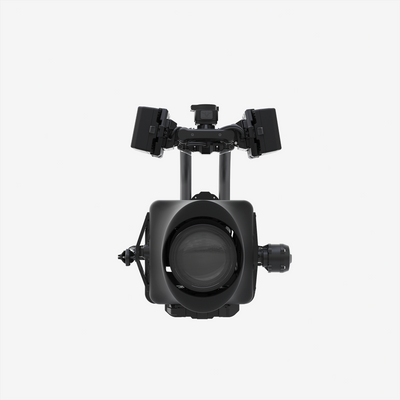

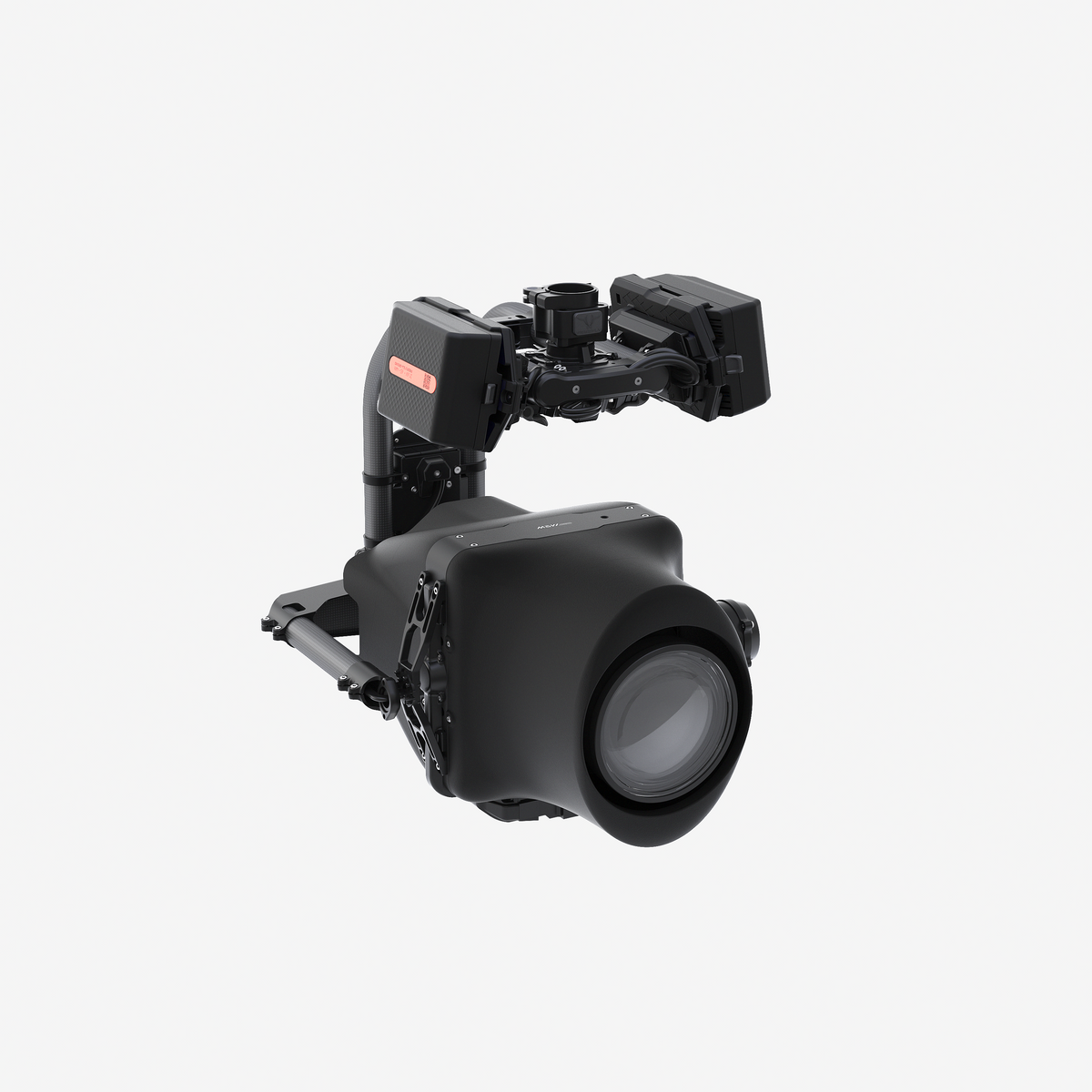

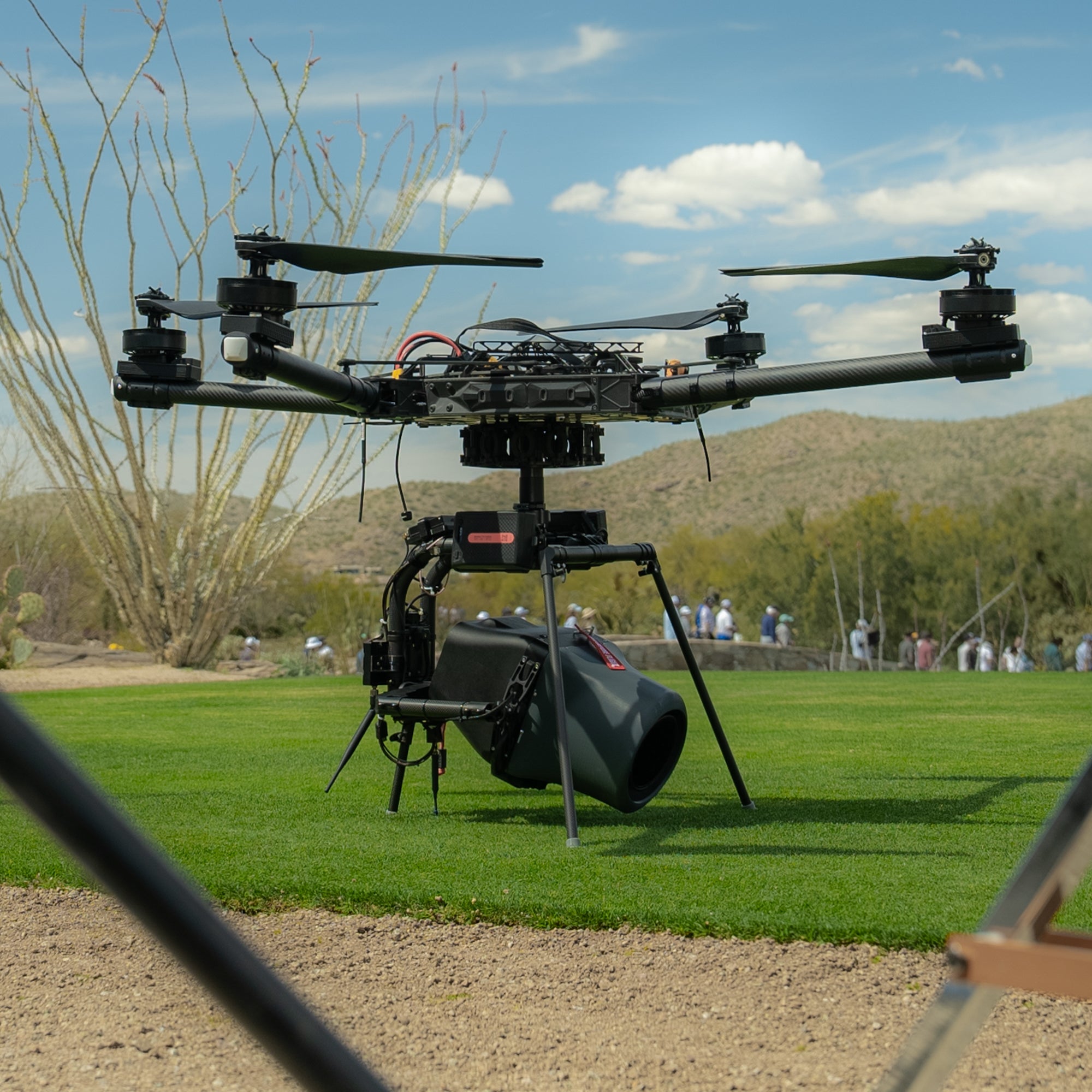

Mōvi Carbon is the world's first handheld and drone-mountable 5-axis camera stabilizer. We’ve miniaturized, optimized, and cut every gram of weight of our 5-axis design so you can shoot in the world's most interesting places.
Mōvi Carbon features two high-bandwidth inner axes which keep the camera perfectly stable in even the most demanding conditions at up to a full 240mm zoom.
It is available with three different integrated payload options!

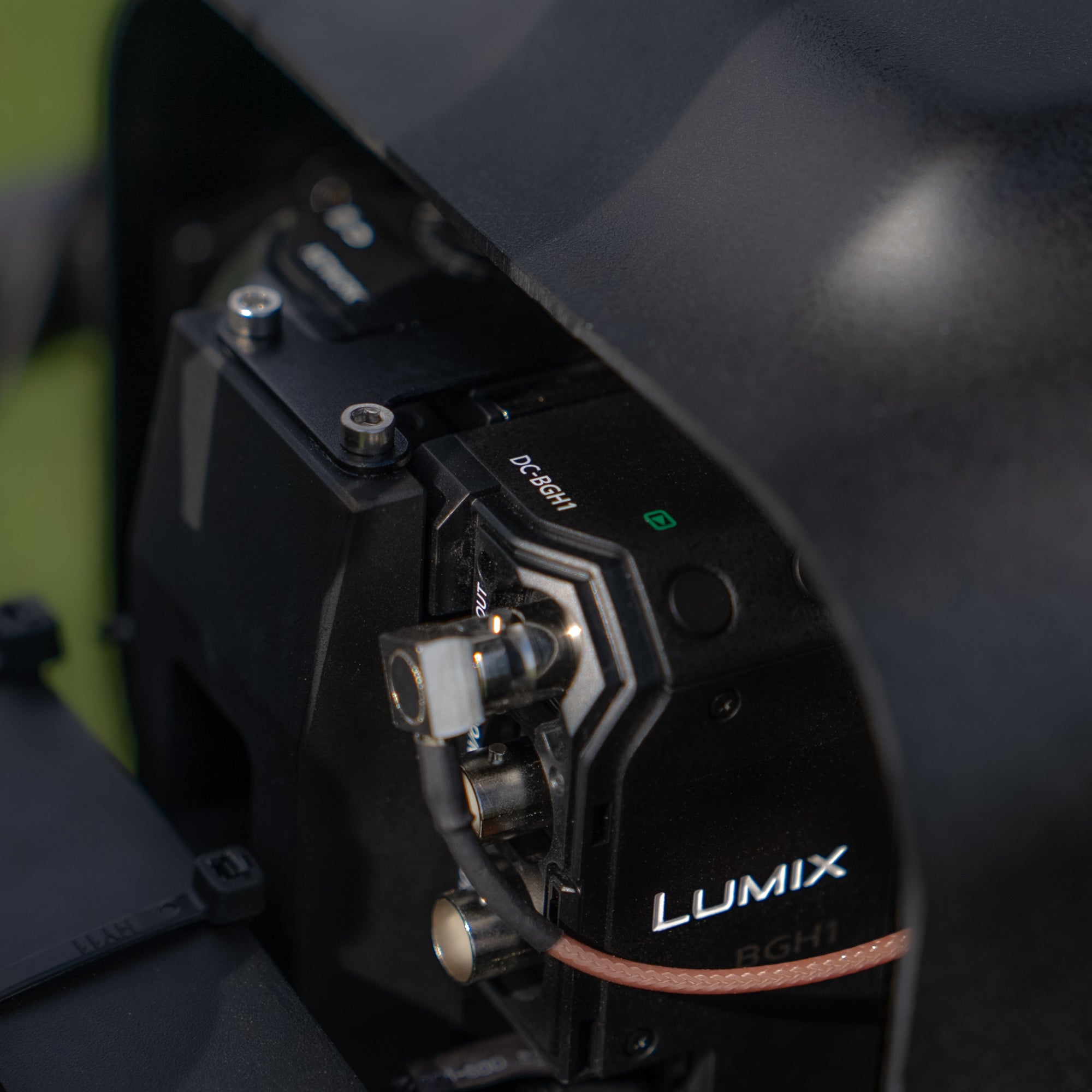

- Panasonic BGH1 (Netflix Approved)

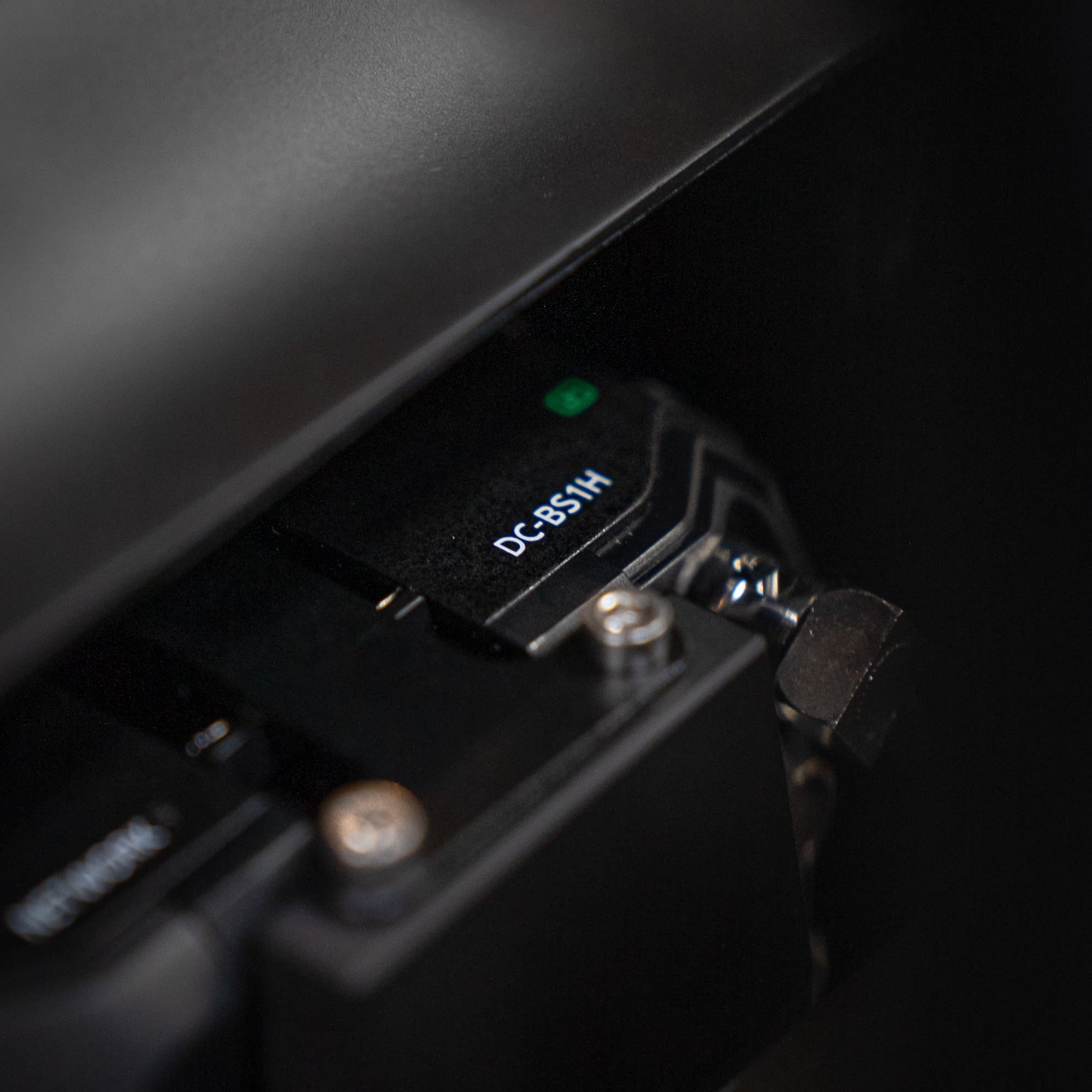

- Panasonic BS1H (Netflix Approved)
- Ember S5K (5k 600fps & 4k 800fps)
Each camera is fully ready to shoot with integrated FIZ, remote camera control and a customized Fujinon XK 20-120mm lens that captures sharp, vivid images.
Photos of Carbon in use may show accessories that are not included with kit or available from Freefly and are for reference only.
All models of Carbon share the following specs:
- Physical Dimensions (gimbal only, no landing gear or Ring)
- 16.1" x 13.6" x 16.73" (L*W*H)
- 410 x 345 x 425 mm (L*W*H)
- Lens - customized Fujinon XK 20-120mm lens (effective focal length depends on sensor size)
- Mōvi Pro chassis and mobile app for easy adoption
- Gimbal control (pan / tilt) and settings, camera start/stop and 3-axis lens control (focus / iris / zoom) controlled by Mōvi Controller and MIMIC + Bush Pilot*
- Full 3-axis pointing control (pan / tilt / roll) from the Mōvi Wheels (3-axis)**
- Dual battery slots for hot-swapping power between shots
- Mōvi Carbon (BGH1), (BS1H) and (Ember S5K) ship with the SL4 Battery Kit
Mōvi Carbon (BGH1) - 950-00129
- Weight
- Without Batteries - 18.5 lbs / 8.4 kg
- With SL4 Adapters and SL4-Ground Batteries - 22.4 lbs / 10.2 kg
- Lens (effective zoom range) - ~40-240 mm
- Camera
- Captures 10bit 4k up to 60fps and FHD at 120fps, In V-Log L the BGH1 has 13+ stops of Dynamic Range
- Remote Camera Control* - Run/Stop, ISO, WB, Shutter Angle and recording status
- Remote (wired) camera control - Ethernet (included cable)
- Video output - SDI (cable included)
- Netflix Approved
Mōvi Carbon (BS1H) - 950-00130
- Weight
- Without Batteries - 18.6 lbs / 8.4 kg
- With SL4 Adapters and SL4-Ground Batteries - 22.5 lbs / 10.2 kg
- Lens (effective zoom range) - ~32-192 mm (Super35 crop)
- Camera
- Captures 4k 12bit up to 60fps and FHD in 120fps (Super35 crop), In V-Log L the BS1H has 14+ stops of Dynamic Range
- Remote Camera Control* - Run/Stop, ISO, WB, Shutter Angle and recording status
- Remote (wired) camera control - Ethernet (included cable)
- Video output - SDI (cable included)
- Netflix Approved
Mōvi Carbon (Ember S5K) - 950-00131
- Weight***
- Without Batteries - 18.5 lbs / 8.4 kg
- With SL4 Adapters and SL4-Ground Batteries - 22.4 lbs / 10.2 kg
- Lens (effective zoom range) - ~32-192 mm
- Camera
- Captures 5k 600fps & 4k 800fps plus other aspect ratios and frame rates
- Remote Control - Run/Stop
- Camera video output - HDMI (cable included)
*MIMIC can be used to give an additional operator control of a single lens axis, but not as a substitute for the Mōvi Controller for gimbal operations.
**Wheels cannot link directly to Carbon and will need either (optimally) a Mōvi Controller or a MIMIC for communication.
***Anticipated, but subject to change as development is finalized
- Qty 1 - Mōvi Carbon Travel Case
- Qty 1 - Mōvi Carbon
- Integrated* - Panasonic BGH1, Panasonic BS1H or Freefly Ember S5K**
- Fujinon XK 20-120mm
- Qty 1 - SL4 Battery Kit
- Qty 2 - SL4-Ground Battery
- Qty 2 - Mōvi Pro to SL Battery Plate Adapter
- Qty 2 - SL Battery Charger (USB C)
- Qty 2 - USB C to C Cable (2m/6.5ft)
- Qty 1 - 2.0mm Hex Driver
- Qty 1 - 2.5mm Hex Driver
- Qty 1 - Schneider 4.5" Round Clear Ultraviolet Filter
- Qty 1 - Schneider Compact ND Filter Kit 114mm (ND 0.6/0.9/1.2)
- Qty 1 - Mōvi Ring Pro II
- Qty 1 - Mōvi Carbon
*Camera and lens are completely integrated into the Mōvi Carbon and cannot be removed for other uses.
**Panasonic cameras do not ship with SD cards
Integrated Camera Options
Please select a camera payload to start building out your Carbon kit.
Power
Extend your operating time with additional batteries and chargers.
SL4-Ground Battery
Recommended quantity: 2
4.1 Ah battery used in pairs on Mōvi Carbon
SL Battery Charger (USB C)
Recommended quantity: 2
For charging additional SL Batteries
Mōvi Pro to TB50/TB55 Battery Adapter
Battery adapters for customers with TB50 batteries
Mounting or Operating

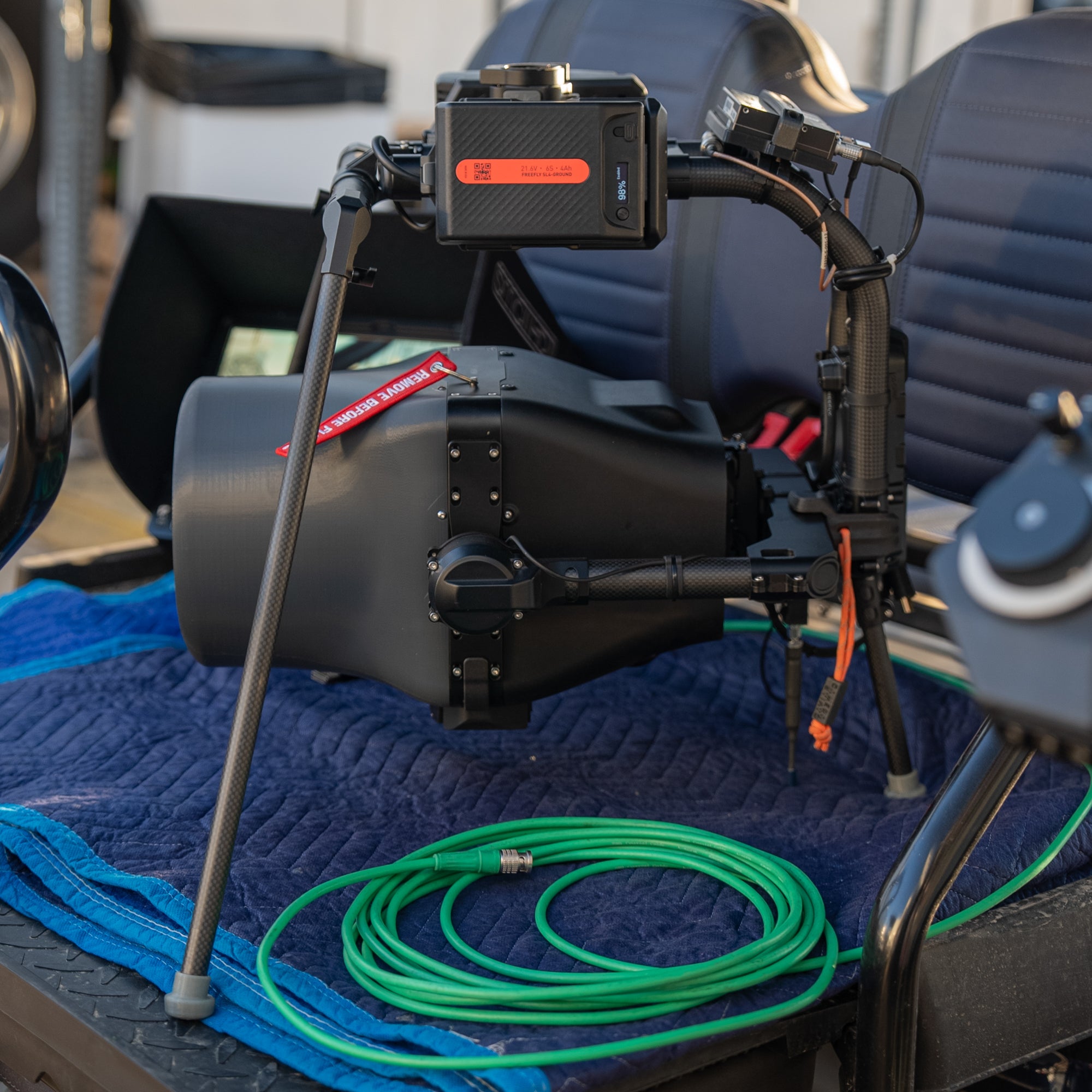

Mōvi Pro Landing Gear
Recommended quantity: 1

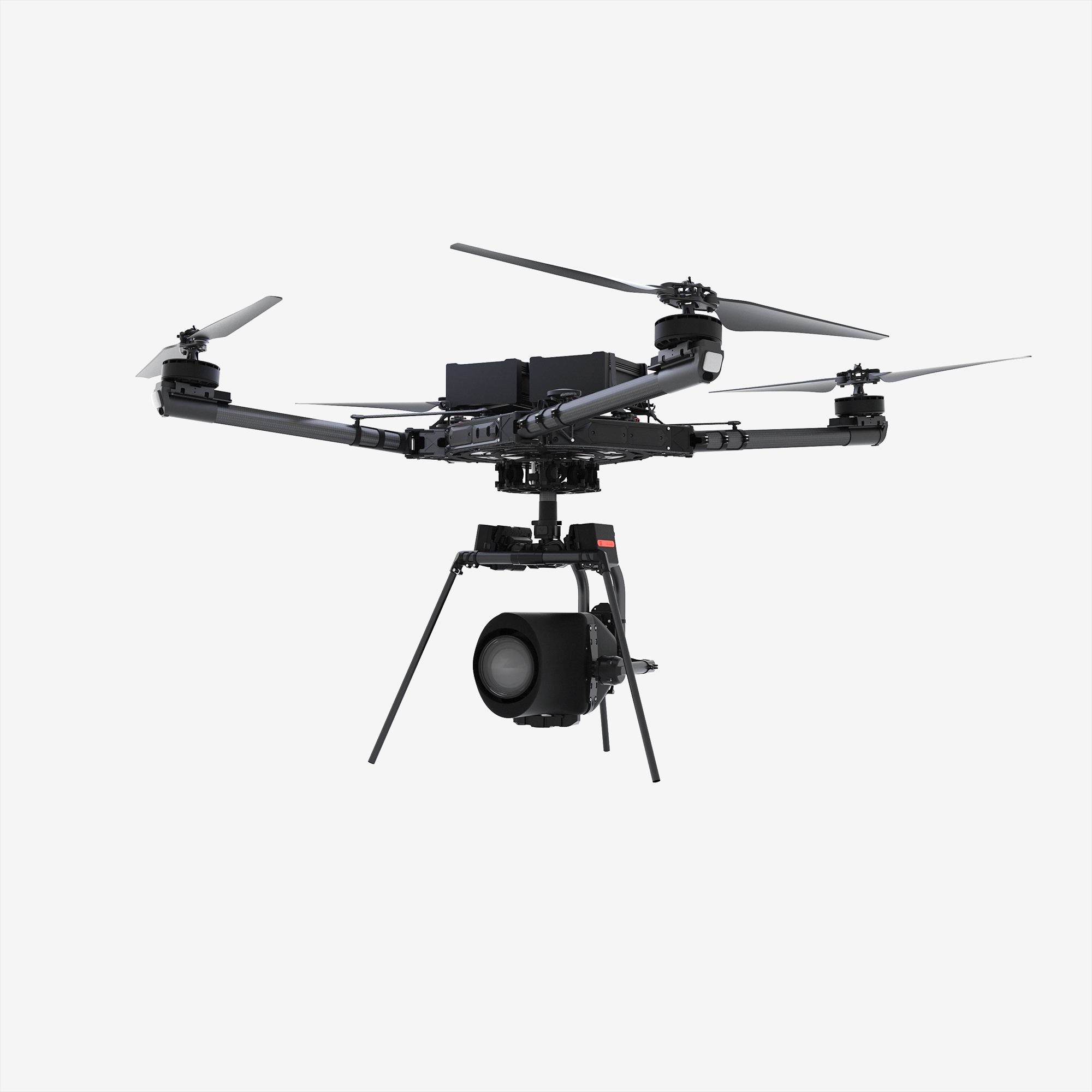

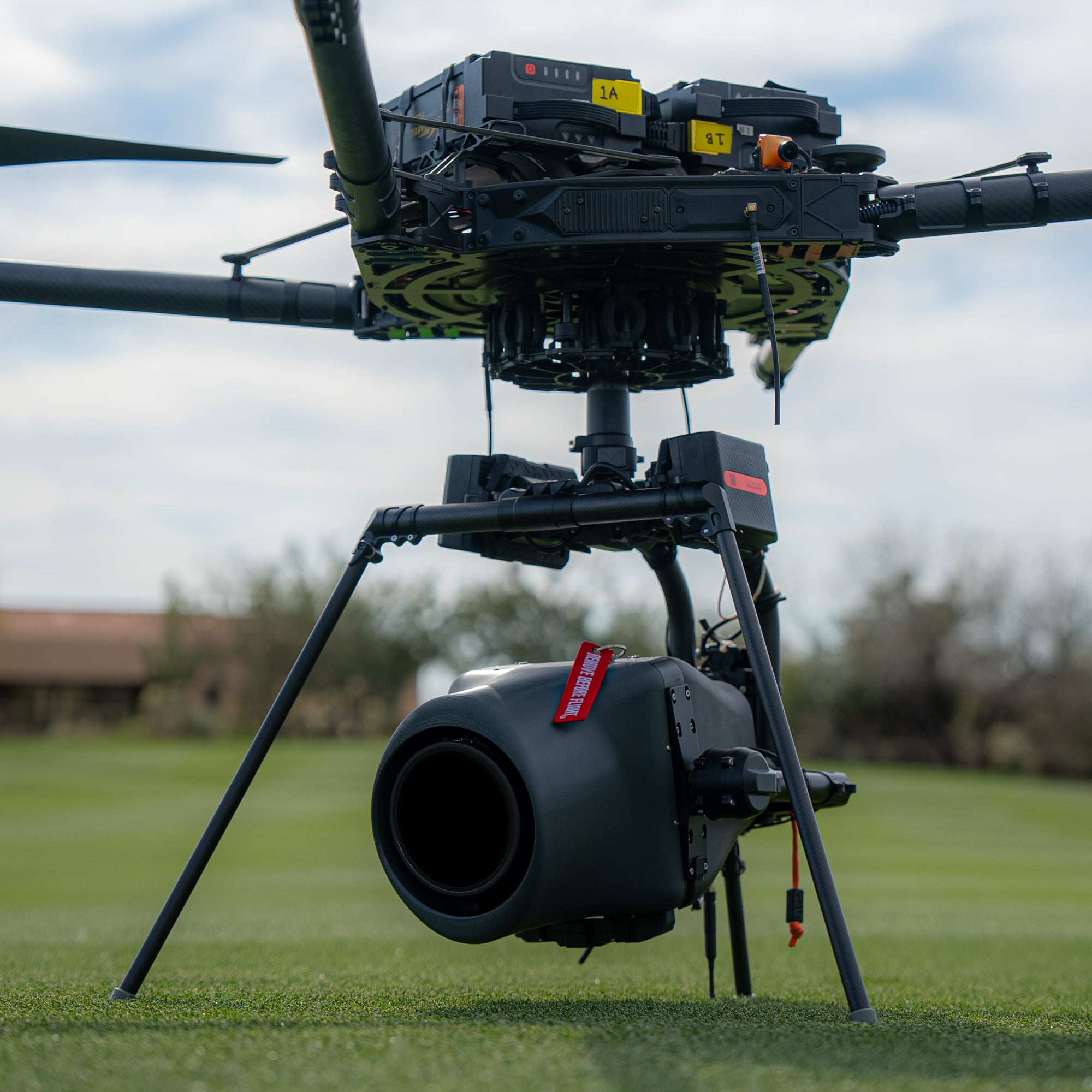

Lightweight, fixed carbon fiber landing gear legs for flying Mōvi Carbon under a drone
Mōvi Pro Classic Handle
450mm wide handlebar set for a narrower operation footprint
Ninja Star
Cheese plate that pairs with a Toad to mount your Mōvi Carbon to jibs, tripods, etc
Toad
Pairs with the Ninja Star to mount Mōvi Carbon with its included quick-release hardware
Second Operator Control - Mōvi Controller
Mōvi Controller + FRX Pro (900 MHz)
Remote control of Mōvi settings, camera pointing, camera settings and focus/iris/zoom
A Mōvi Controller is required for operation of Carbon.
13mm Dual Quick Release Mount
Recommended quantity: 1
Dual quick-release mount for monitor and video RX on Mōvi Controller
Quick Release Plug 13mm (3pk)
Recommended quantity: 1
Monitor + video transmitter quick-release adapters
Pop-N-Lock 25mm Quick Release
Recommended quantity: 1
Quick-release mount for installing FRX Pro on Mōvi Pro
Second Operator Control - MIMIC
MIMIC with Handlebars
Kinetic controller for intuitive shot framing or single FIZ channel control for second remote operator
Bush Pilot
Recommended quantity: 1
Pairs with MIMIC for single axis control of focus, iris or zoom
Additional Accessories
Adjustable Monitor Mount Quick Release 30mm
Recommended quantity: 1
Tool-less, quick-release monitor mount for Mōvi Ring Pro
D-Tap Cable for FRX Pro
Recommended quantity: 1
D-Tap power cable for Connex video transmitters
