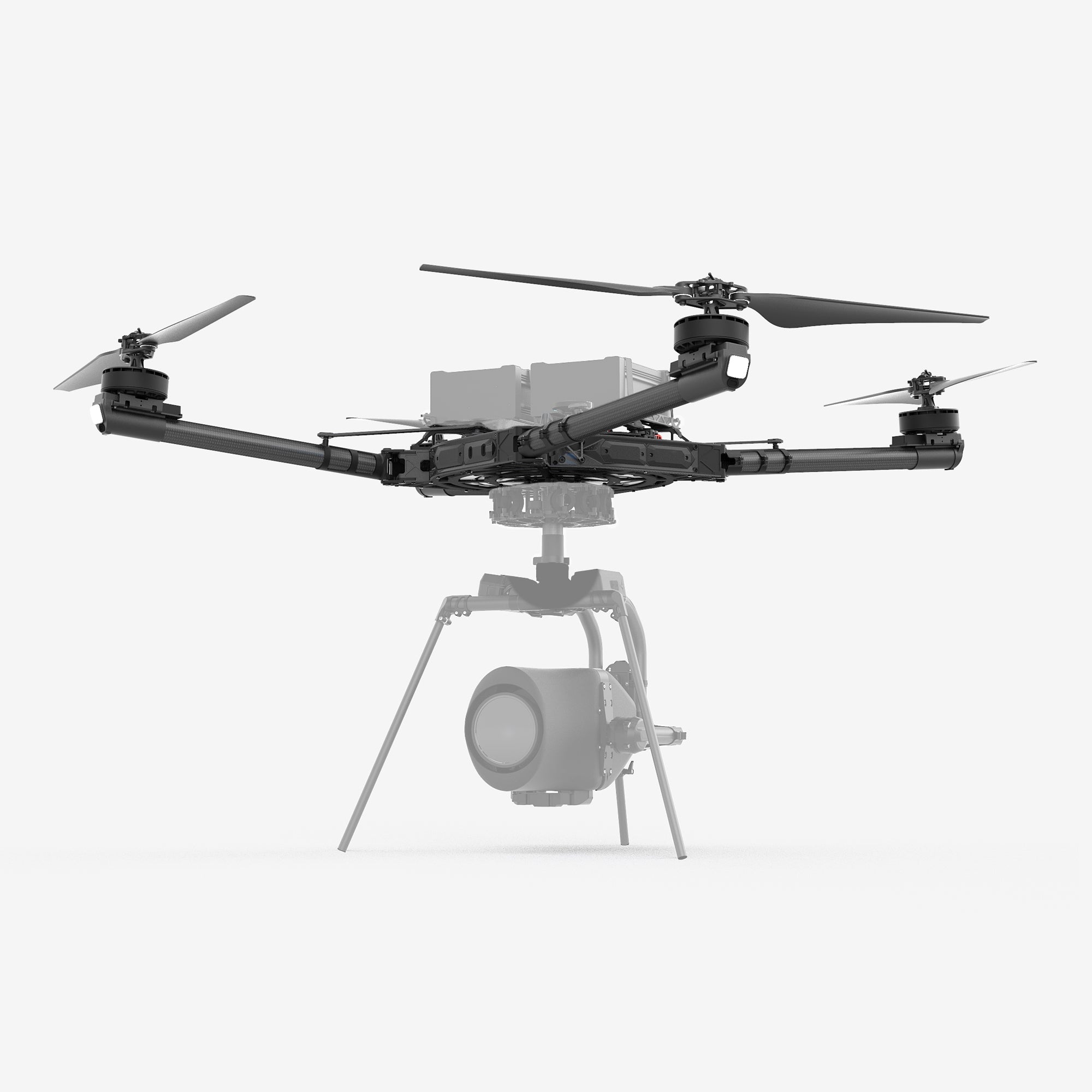

Alta X (International Only)

Freefly offers Alta X without Remote ID in several production configurations/bundles to better suit the needs of operators outside of the US.

Alta X International Only (Cinema Kit) - 950-00151-01

• Ready to fly kit optimized for cinema operators
• Ships in a robust travel case
• Includes a Futaba Radio for drone control
• Includes FRX Pro radio pair for communicating with a user-supplied ground station computer
• Includes pre-installed analog FPV camera and transmitter. User will need to supply receiver/monitor for FPV use.
• RTK ready (with the addition of a ground station computer and  RTK Ground Module)
• Does not include:
  • Landing Gear**
  • Batteries/charger

Alta X International Only (No Case, Not Gimbal Ready, Aircraft Only) - 950-00151-02

• Perfect option for a backup airframe or building your kit from the ground up
• Replaces 950-00118-01
• Ships in a robust cardboard box with custom cut foam
• RTK ready (with the addition of a ground station computer with radio link (FRX Pro) and RTK Ground Module
• Compatible with Broadcast Remote ID upgrade that can added by user at any time.*
• Does not include:
  • Landing Gear**
  • Radio controller or radio equipment for remote control from operator supplied ground station
  • Payload Vibration Damper for mounting gimbals or static mount for landing gear**
  • Batteries/charger

Alta X International Only (Travel Case, Not Gimbal Ready, Aircraft Only) - 950-00151-05

• Perfect option for building your kit from the ground up
• Ships in a robust travel case
• Replaces 950-00118-05
• RTK ready (with the addition of a ground station computer with radio link (FRX Pro) and RTK Ground Module
• Compatible with Broadcast Remote ID upgrade that can added by user at any time.*
• Does not include:
  • Landing Gear**
  • Radio controller or radio equipment for remote control from operator supplied ground station
  • Payload Vibration Damper for mounting gimbals or static mount for landing gear**
  • Batteries/charger

*User installed Remote ID will be broadcast only and is not accepted by FAA for use in the US or BVLOS operations.

**For maximum versatility for a variety of industrial operators, Alta X does not include payload mounts or Landing Gear by default. We recommend Payload Vibration Damper + Skyview Landing Gear, Short Quick Release Mount + Cargo Landing Gear or Mōvi Pro Landing Gear for your Mōvi Pro.

Every Alta X (950-00151-XX) ships with the following:

• Qty 1 - Alta X Airframe with F9P GPS (RTK Ready) without Remote ID
• Qty 1 - Spare parts kit
  • Qty 2 - Fuse Mini 297 32V 10A
  • Qty 2 - Replacement Battery Strap
  • Qty 2 - Active Blade Bumper (black)
  • Qty 2 - Active Blade Bumper (gray)
  • Qty 5 - M4x16 Combo Head bolt
  • Qty 5 - M4x10 Combo Head bolt
  • Qty 5 - M3x8 Combo Head bolt
  • Qty 5 - M4x14 Combo Head bolt
  • Qty 5 - M4x8 Combo Head bolt
  • Qty 1 - USB C to A Cable (1m)
• Qty 1 each - 2.0mm, 2.5mm and 3mm hex drivers

Each build of Alta X will include the items above as well as the additional items specific to the configuration:

Alta X International Only (Cinema Kit) - 950-00151-01

• Qty 1 - Robust Travel Case with custom insert
• Qty 1 - Futaba Radio with receiver pre-installed on Alta X
• Qty 1 - FRX Pro radio pair with airside unit installed on Alta X
• Qty 1 - Payload Vibration Damper (pre-installed)
• Qty 1 - FPV Camera / Transmitter kit (re-installed)

Alta X International Only (No Case, Not Gimbal Ready, Aircraft Only) - 950-00151-02

• Qty 1 - Simple shipping box with custom foam insert

Alta X International Only (Travel Case, Not Gimbal Ready, Aircraft Only) - 950-00151-05

• Qty 1 - Robust Travel Case with custom insert

• Payload Vibration Damper
• Broadcast Remote ID
• Alta X Short Quick Release Mount
• Cargo Landing Gear
• Skyview Landing Gear for Alta X
• Alta X 12S Flight Pack - 16AH 20C (Single Battery)
• RTK GPS Ground Station
• CW Single Motor Propeller Set for Alta X
• CCW Single Motor Propeller Set for Alta X
• CW Single Motor Propeller Set with ActiveBlade (M4 Fasteners)
• CCW Single Motor Propeller Set with ActiveBlade (M4 Fasteners)

Not compatible with:

• CW Single Motor Propeller Set with ActiveBlade (M12 motors)
• CCW Single Motor Propeller Set with ActiveBlade (M12 motors)

• Alta X International Only (Cinema Kit) - 950-00151-01
  • Remote ID
    • No Remote ID hardware on board
    • Compatible with the user serviceable Broadcast Remote ID upgrade (non-US ops, non-BVLOS)
    • Cannot ship to US addresses - orders will be cancelled and refunded.
  • NDAA
    • Alta X drone - Compliant
    • Futaba Radio - Not compliant
    • FRX Pro Radio - Compliant
    • FPV Kit - Not Compliant
• Alta X International Only (No Case, Not Gimbal Ready, Aircraft Only) - 950-00151-02
  • Remote ID
    • No Remote ID hardware on board
    • Compatible with the user serviceable Broadcast Remote ID upgrade (non-US ops, non-BVLOS)
    • Cannot ship to US addresses - orders will be cancelled and refunded.
  • NDAA
    • Alta X drone - Compliant
• Alta X International Only (Travel Case, Not Gimbal Ready, Aircraft Only) - 950-00151-05
  • Remote ID
    • No Remote ID hardware on board
    • Compatible with the user serviceable Broadcast Remote ID upgrade (non-US ops, non-BVLOS)
    • Cannot ship to US addresses - orders will be cancelled and refunded.
  • NDAA
    • Alta X drone - Compliant
