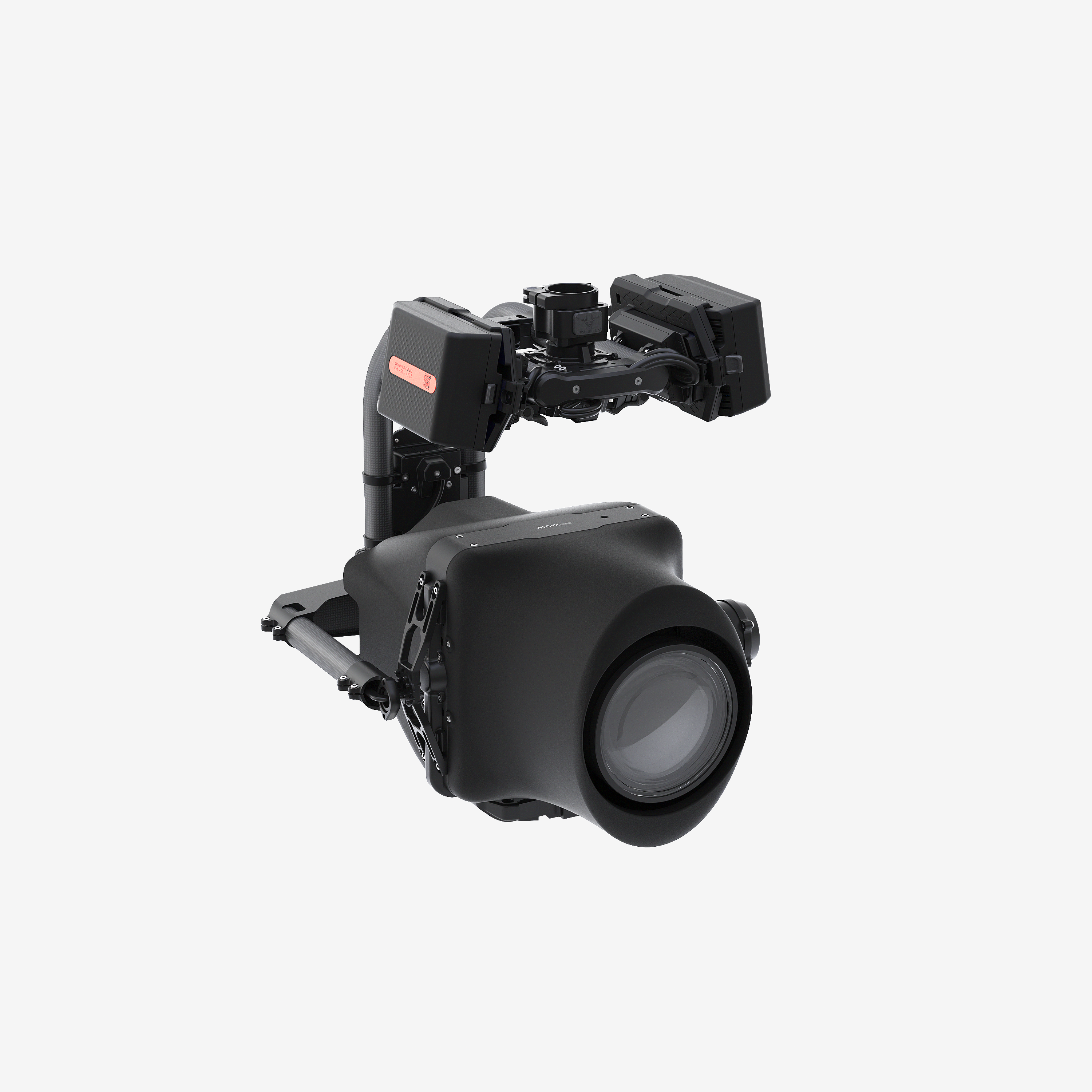

Mōvi Carbon

All models of Carbon share the following specs:

• Physical Dimensions (gimbal only, no landing gear or Ring)
  • 16.1" x 13.6" x 16.73" (L*W*H)
  • 410 x 345 x 425 mm (L*W*H)
• Lens - customized Fujinon XK 20-120mm lens (effective focal length depends on sensor size)
• Mōvi Pro chassis and mobile app for easy adoption
• Gimbal control (pan / tilt) and settings, camera start/stop and 3-axis lens control (focus / iris / zoom) controlled by Mōvi Controller and MIMIC + Bush Pilot*
• Full 3-axis pointing control (pan / tilt / roll) from the Mōvi Wheels (3-axis)**
• Dual battery slots for hot-swapping power between shots
  • Mōvi Carbon (BGH1), (BS1H) and (Ember S5K) ship with the SL4 Battery Kit

Mōvi Carbon (BGH1) - 950-00129

• Weight
  • Without Batteries - 18.5 lbs / 8.4 kg
  • With SL4 Adapters and SL4-Ground Batteries - 22.4 lbs / 10.2 kg
• Lens (effective zoom range) - ~40-240 mm
• Camera
  • Captures 10bit 4k up to 60fps and FHD at 120fps, In V-Log L the BGH1 has 13+ stops of Dynamic Range
  • Remote Camera Control* - Run/Stop, ISO, WB, Shutter Angle and recording status
  • Remote (wired) camera control - Ethernet (included cable)
  • Video output - SDI (cable included)
  • Netflix Approved

Mōvi Carbon (BS1H) - 950-00130

• Weight
  • Without Batteries - 18.6 lbs / 8.4 kg
  • With SL4 Adapters and SL4-Ground Batteries - 22.5 lbs / 10.2 kg
• Lens (effective zoom range) - ~32-192 mm (Super35 crop)
• Camera
  • Captures 4k 12bit up to 60fps and FHD in 120fps (Super35 crop), In V-Log L the BS1H has 14+ stops of Dynamic Range
  • Remote Camera Control* - Run/Stop, ISO, WB, Shutter Angle and recording status
  • Remote (wired) camera control - Ethernet (included cable)
  • Video output - SDI (cable included)
  • Netflix Approved

Mōvi Carbon (Ember S5K) - 950-00131

• Weight***
  • Without Batteries - 18.5 lbs / 8.4 kg
  • With SL4 Adapters and SL4-Ground Batteries - 22.4 lbs / 10.2 kg
• Lens (effective zoom range) - ~32-192 mm
• Camera
  • Captures 5k 600fps & 4k 800fps plus other aspect ratios and frame rates
  • Remote Control - Run/Stop
• Camera video output - HDMI (cable included)

*MIMIC can be used to give an additional operator control of a single lens axis, but not as a substitute for the Mōvi Controller for gimbal operations.

**Wheels cannot link directly to Carbon and will need either (optimally) a Mōvi Controller or a MIMIC for communication.

***Anticipated, but subject to change as development is finalized


• Qty 1 - Mōvi Carbon Travel Case
  • Qty 1 - Mōvi Carbon
    • Integrated* - Panasonic BGH1, Panasonic BS1H or Freefly Ember S5K**
    • Fujinon XK 20-120mm
  • Qty 1 - SL4 Battery Kit
    • Qty 2 - SL4-Ground Battery
    • Qty 2 - Mōvi Pro to SL Battery Plate Adapter
    • Qty 2 - SL Battery Charger (USB C)
    • Qty 2 - USB C to C Cable (2m/6.5ft)
  • Qty 1 - 2.0mm Hex Driver
  • Qty 1 - 2.5mm Hex Driver
  • Qty 1 - Schneider 4.5" Round Clear Ultraviolet Filter
  • Qty 1 - Schneider Compact ND Filter Kit 114mm (ND 0.6/0.9/1.2)
  • Qty 1 - Mōvi Ring Pro II

*Camera and lens are completely integrated into the Mōvi Carbon and cannot be removed for other uses.

**Panasonic cameras do not ship with SD cards
