Skyview Payload Mount (Astro & Astro Max)
Product Details

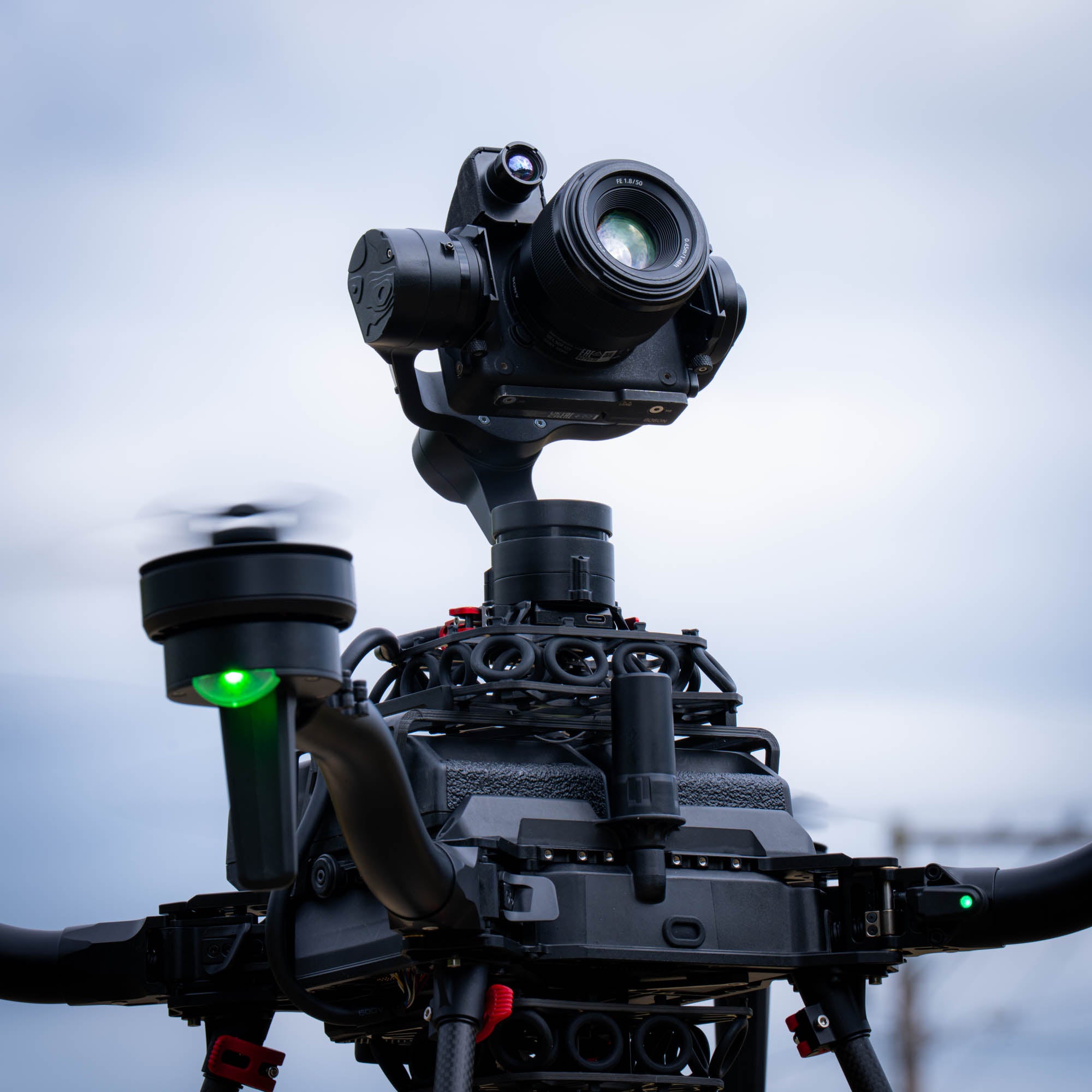

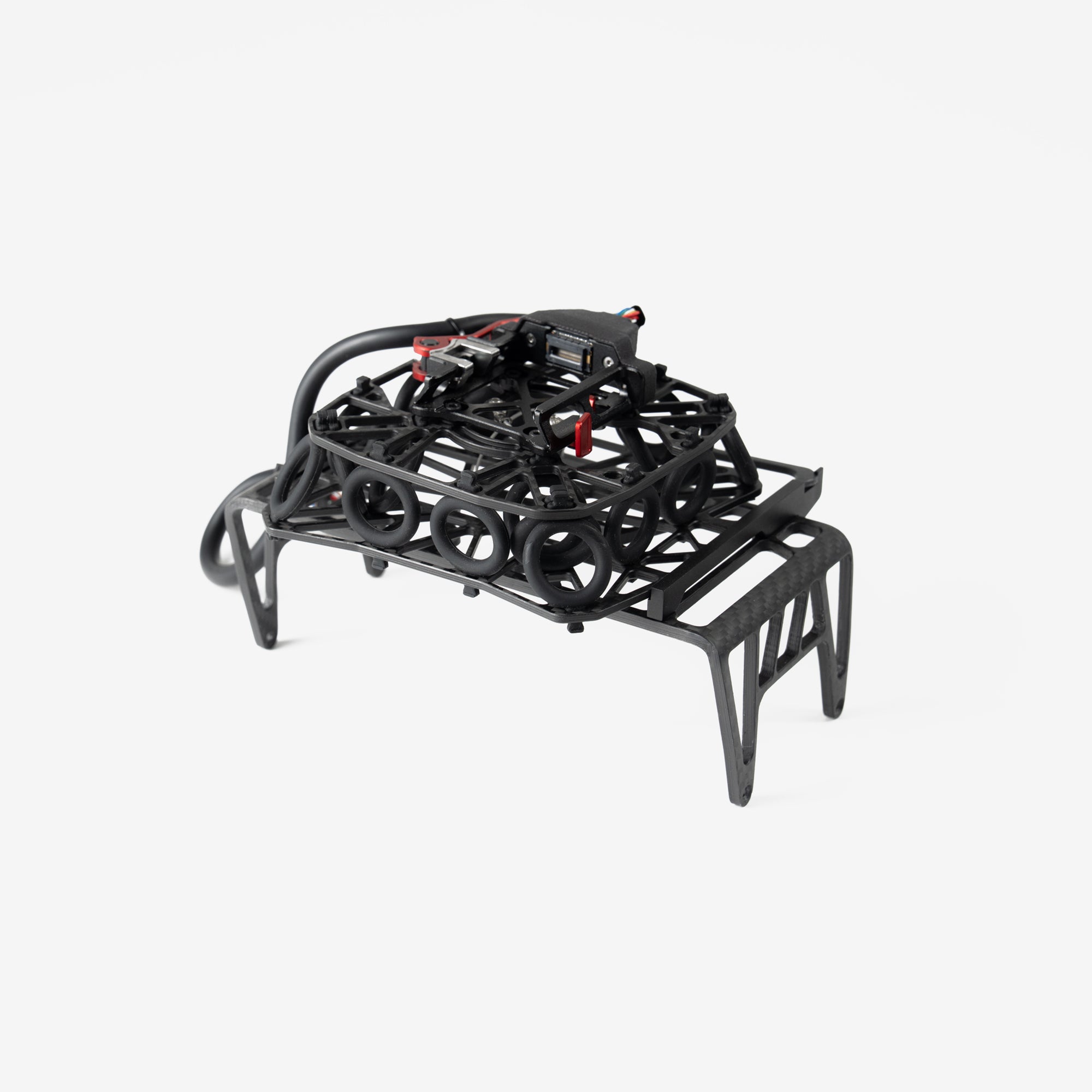

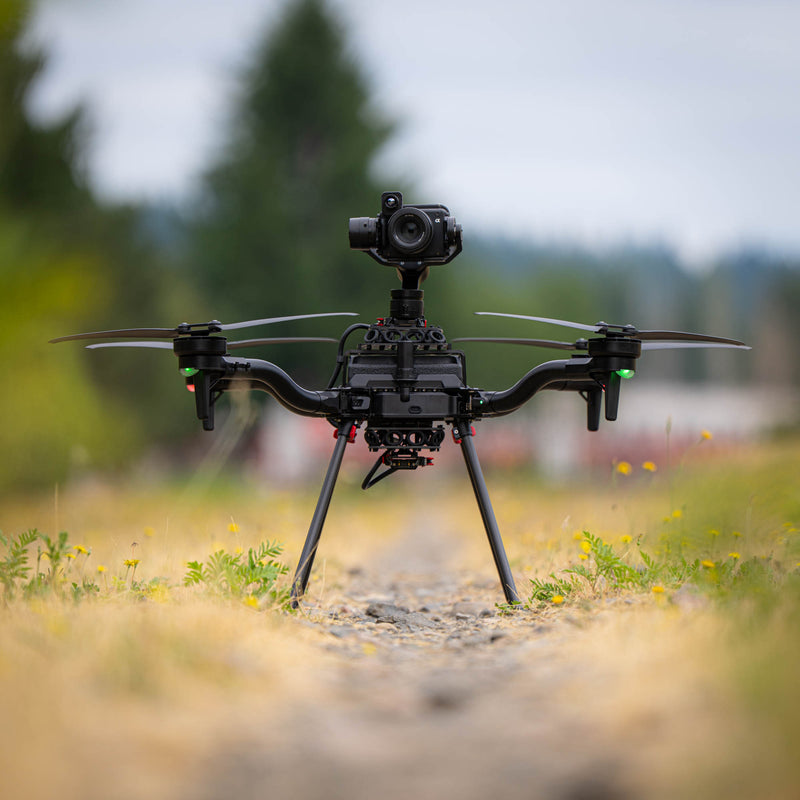

The Skyview Payload Mount for Astro and Astro Max is designed to reposition your Freefly LR1 or OGI Payload from the bottom to the top of your drone, enabling unobstructed upward-facing imaging angles.

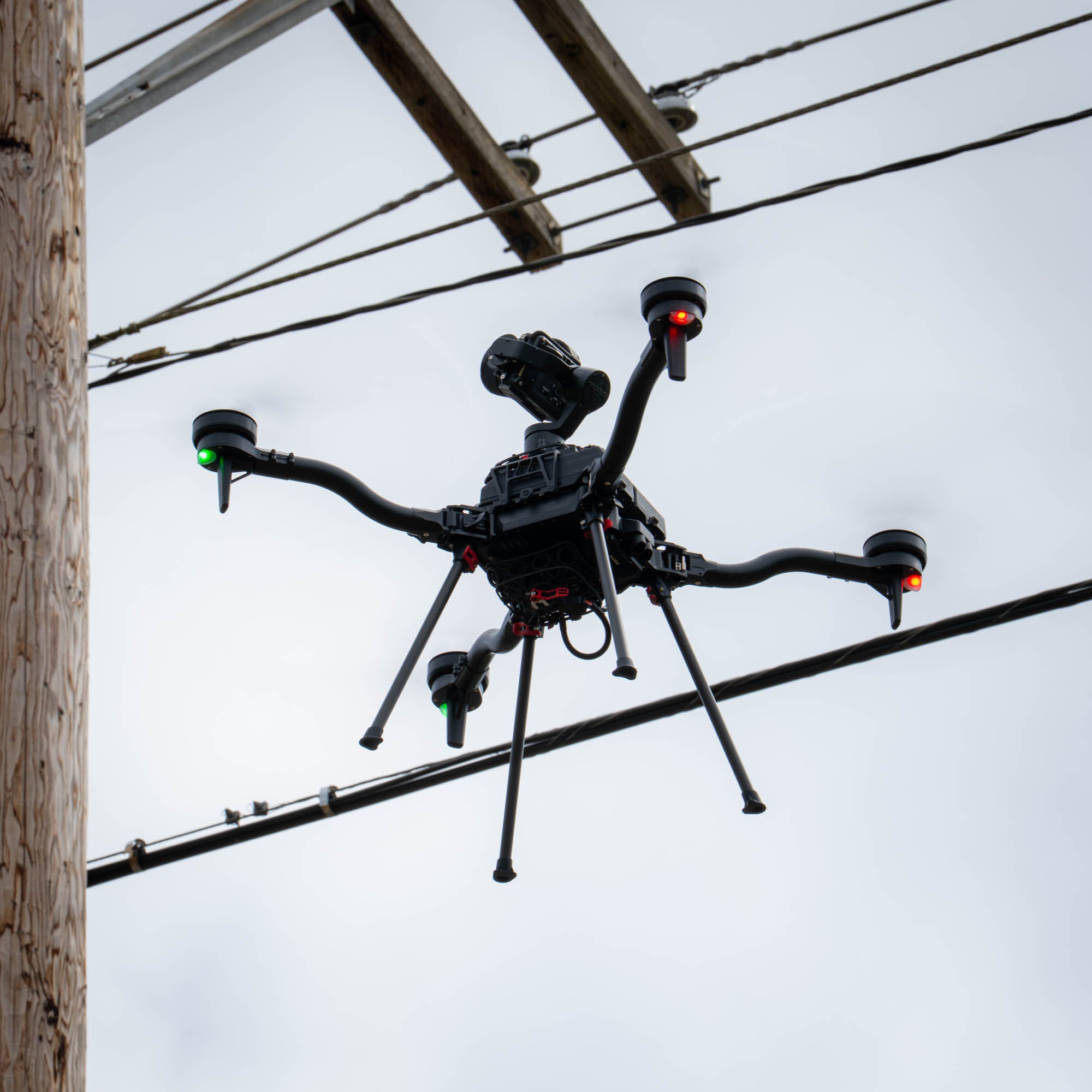

This configuration is ideal for applications such as bridge inspections, under-structure surveys, and creative aerial cinematography. The adapter integrates seamlessly with the drone's chassis, maintaining stability and reducing vibrations to ensure high-quality footage.
Key Features
- Top-Mounted Configuration - Allows the gimbal to be mounted above the drone, providing a clear upward view without obstructions.
- Vibration Isolation - Incorporates dampening elements to minimize vibrations from the drone, ensuring smooth and stable footage.
- Secure Attachment - Utilizes robust mounting hardware and the Smart Dovetail payload interface to ensure the sensor remains securely attached during flight.
- Compatibility: Designed to work with Smart Dovetail equipped payloads. If you want to use something other than LR1 or OGI, let us know!
-
Easy Installation:

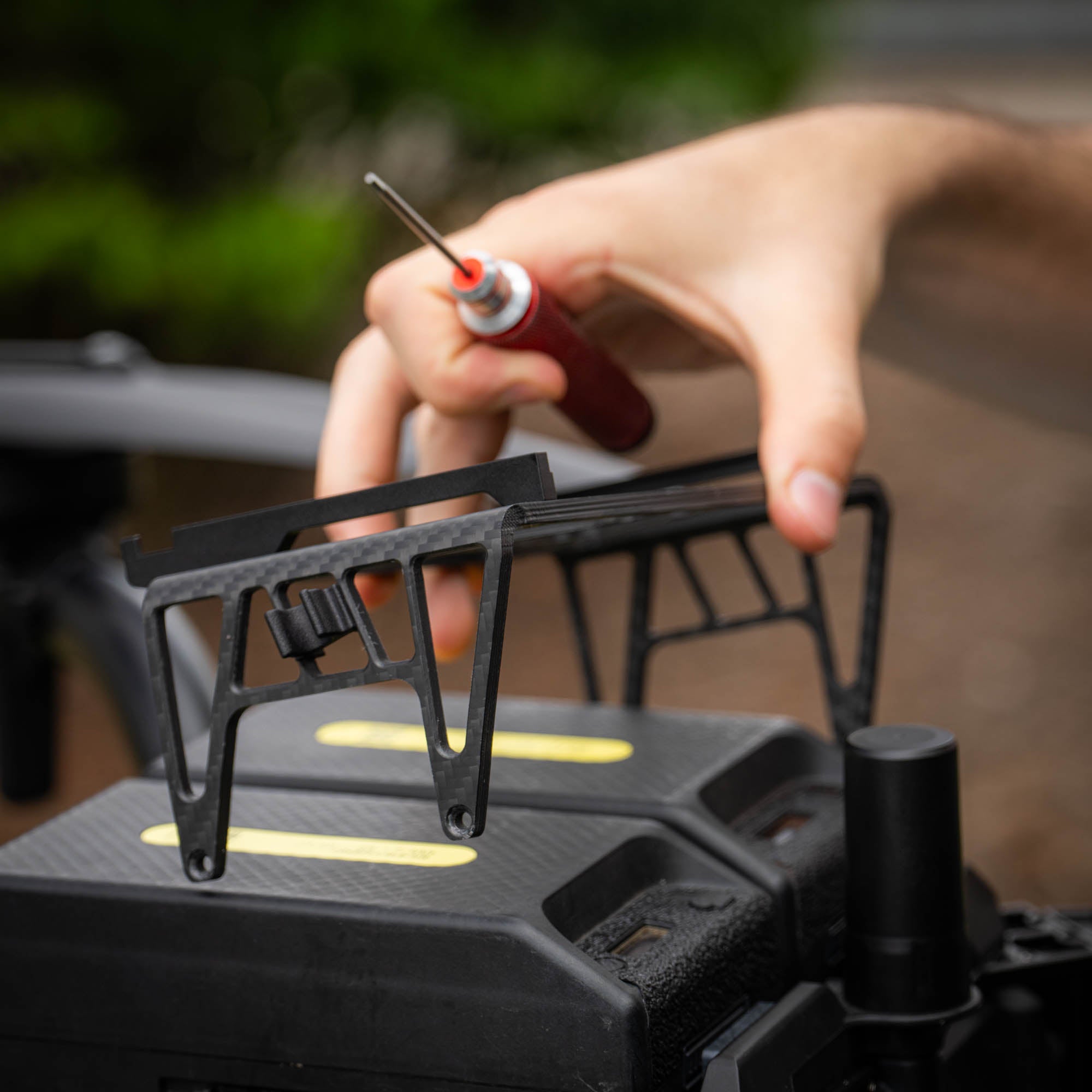

- 4 fasteners to install using 2.0mm hex driver
- Tool-less isolator swaps/removal
- Aircraft can be stored with the mount installed, in the compact case
Lightweight carbon fiber and aluminum construction
Mount can stay installed without interference with battery swaps or storage
Includes integrated Smart Dovetail for easy installation and tear-down of payloads (not hot-swappable)

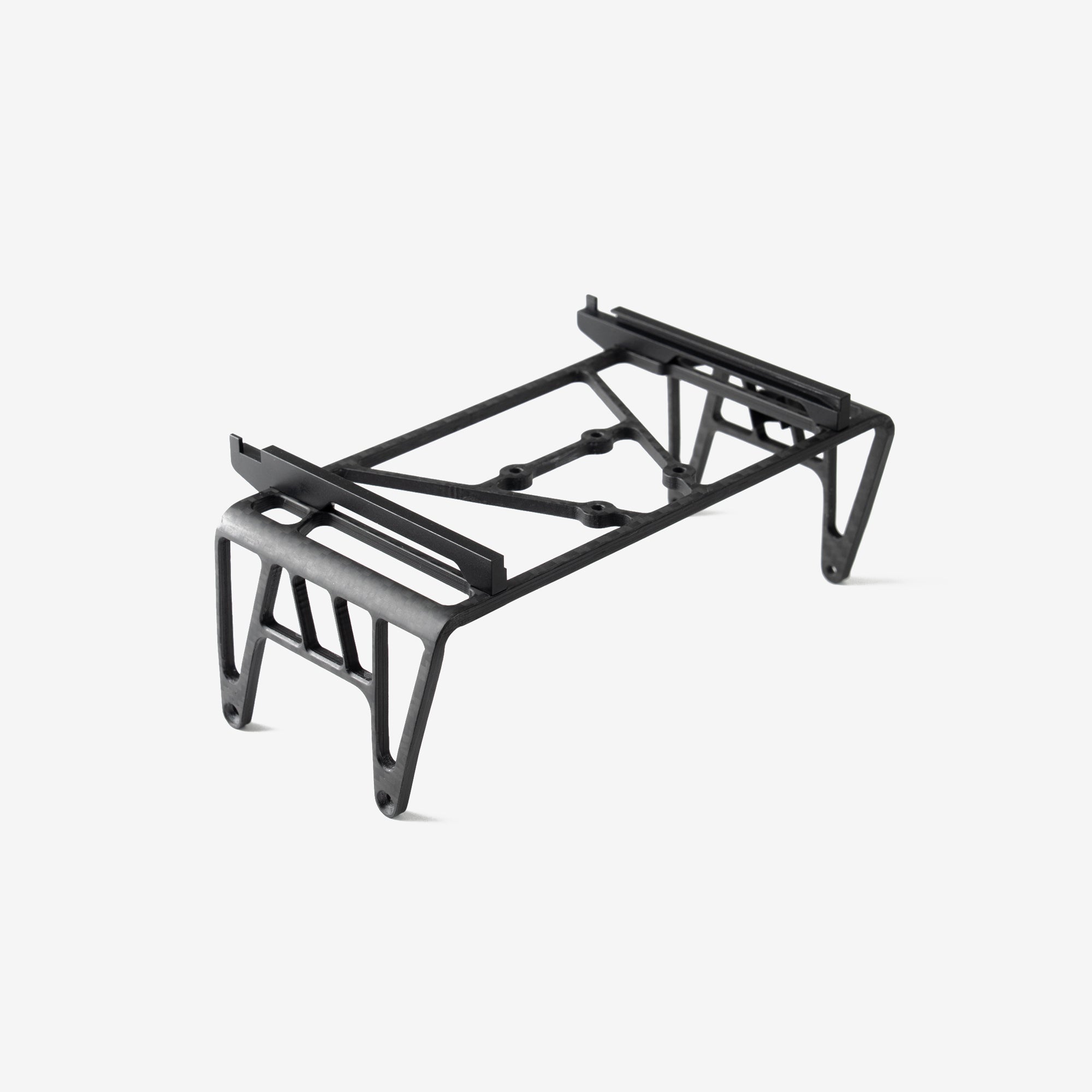

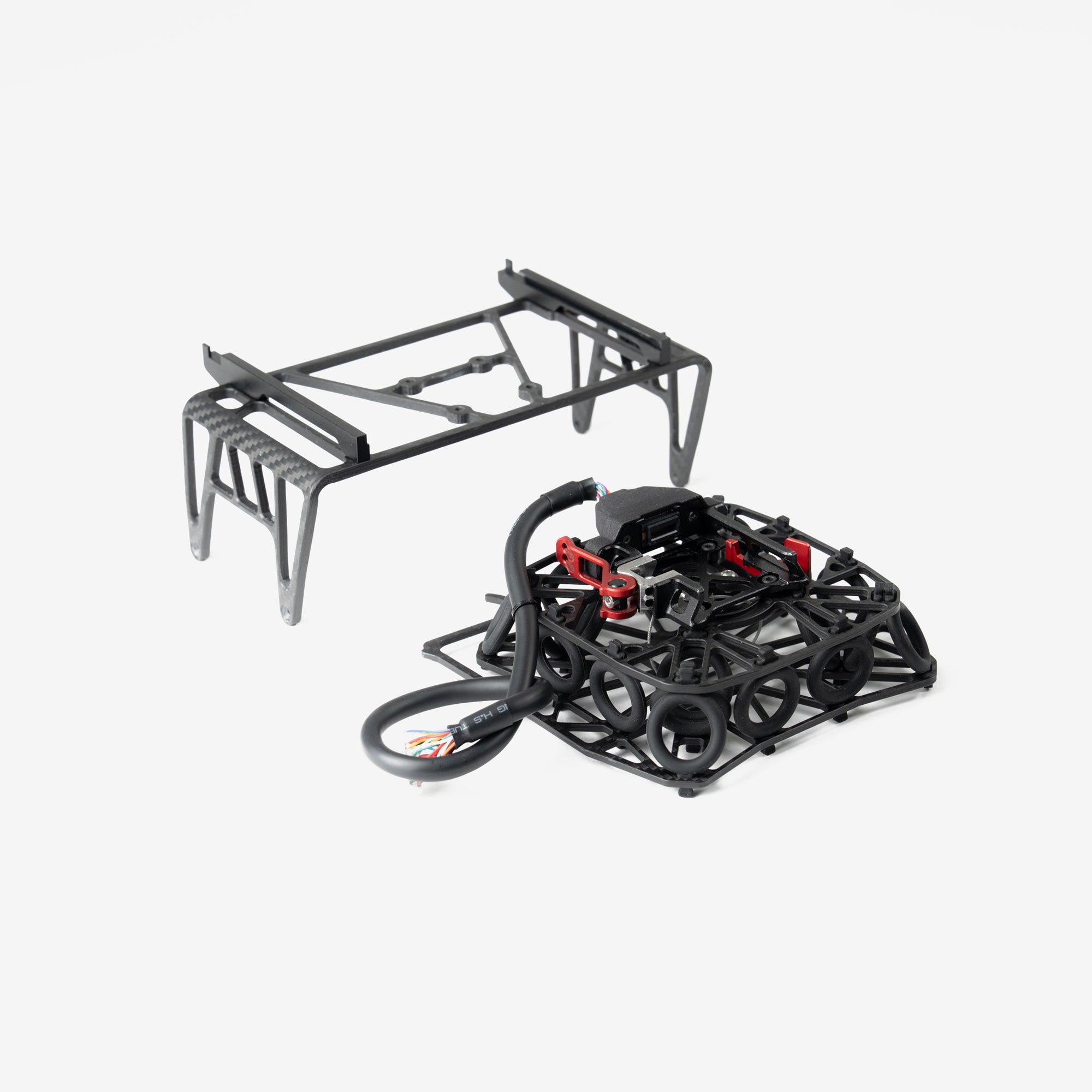

- Qty 1 - Skyview Payload Mount for Astro & Astro Max
- Qty 4 - M3x10 FHCS Mounting Fasteners

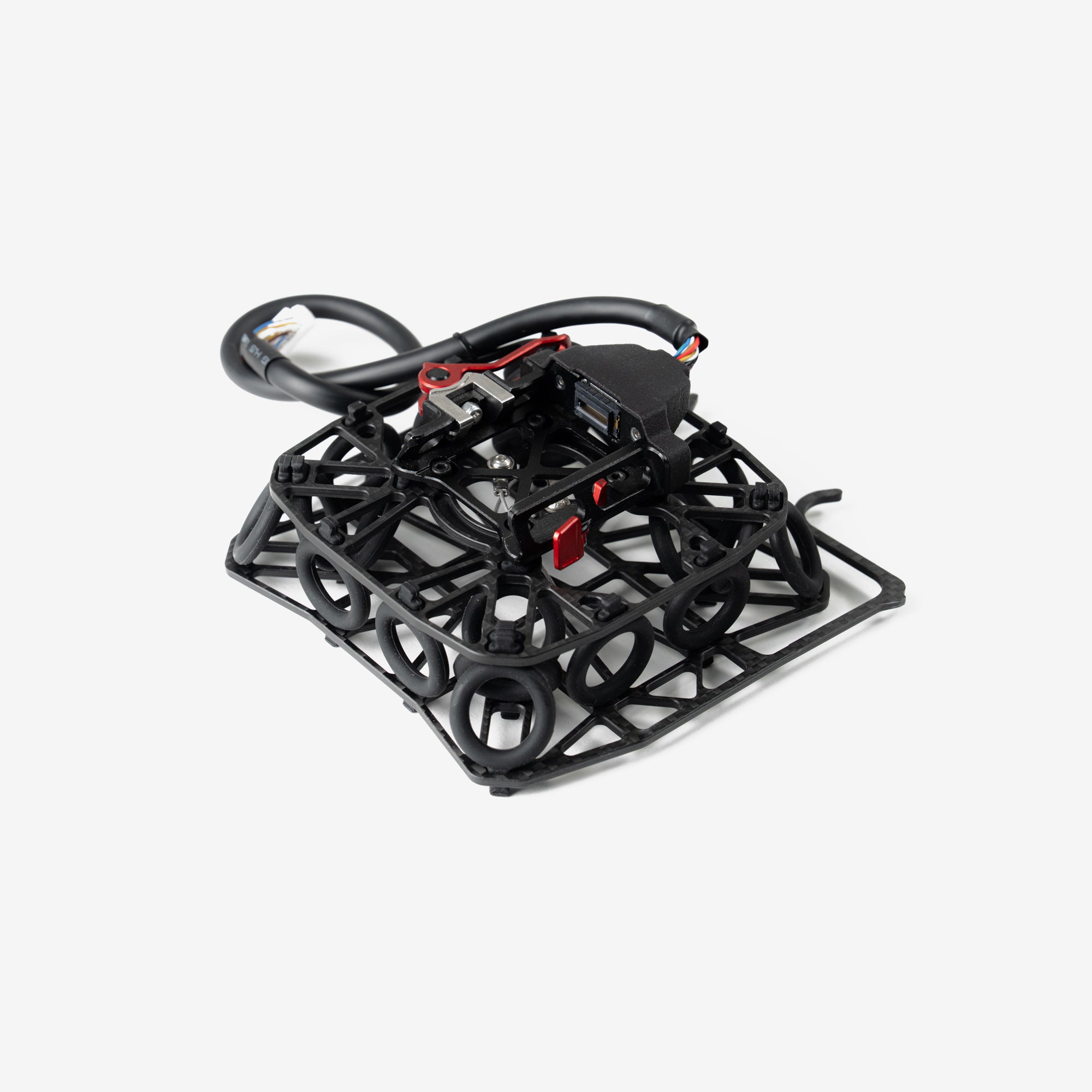

- Qty 1 - Isolator Sled (30A Durometer) with Smart Dovetail
- Astro or Astro Max with:
The 30A isolator included with this kit is specifically tuned to work with these Freefly payloads. But other Smart Dovetail payloads may also work! Try them and let us know if you need a stiffer isolator for your application.
