Ventus OGI Payload
Product Details

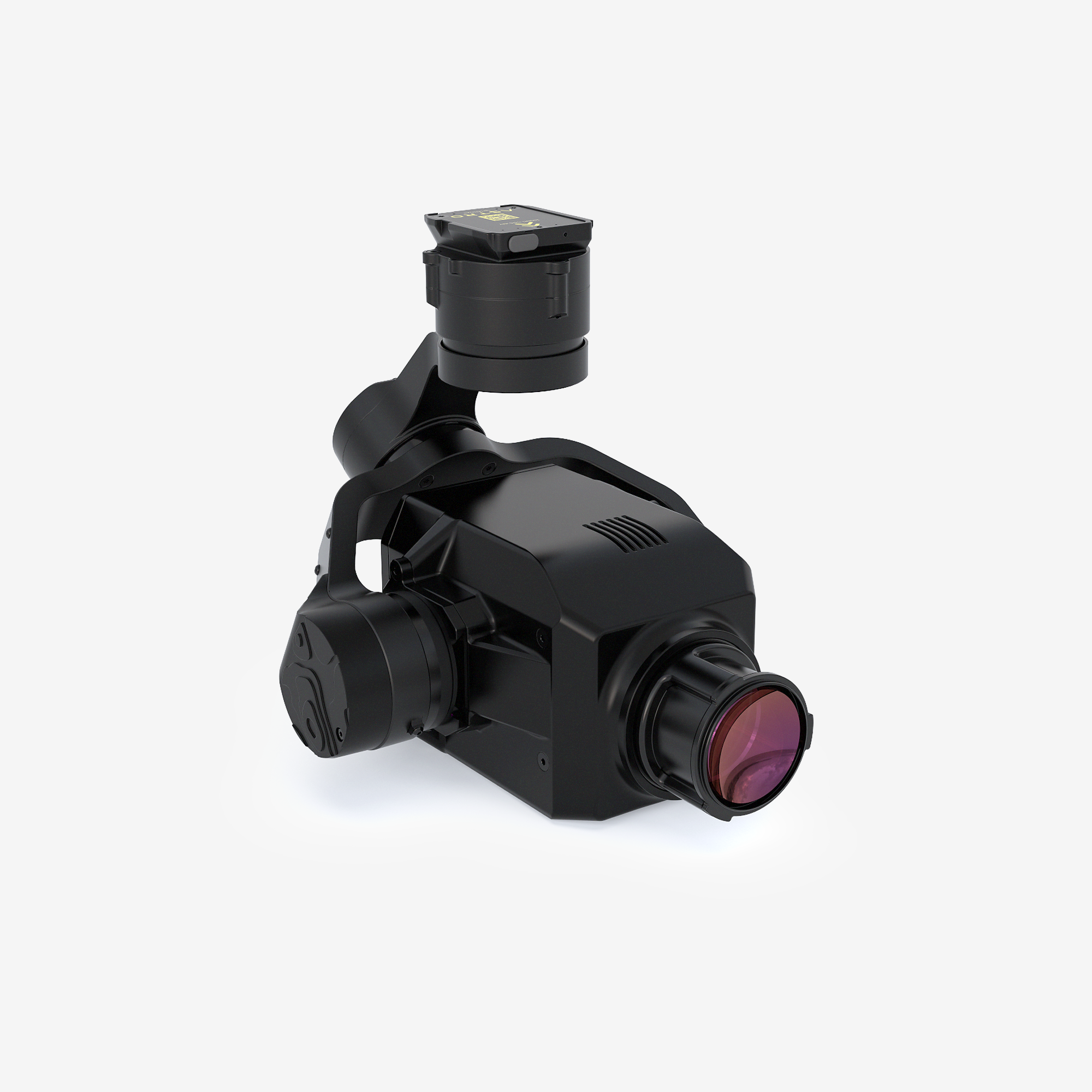

The Ventus OGI payload is a compact Astro-ready OGI Sensor, for precision gas leak detection from the air.
Unlock next-level efficiency with the industry leading compact OGI (Optical Gas Imaging) sensor from Sierra-Olympia Technologies. Designed to seamlessly integrate with your Astro* for rapid, reliable gas leak detection in hard-to-reach areas.
This lightweight and durable payload offers a cooled
640 x 512 mid-wave infrared imaging, enabling you to detect fugitive hydrocarbon emissions including methane, butane, benzene and other gases with pinpoint accuracy.
Improve your operations with advanced gas detection that saves time, enhances safety, and reduces costs. Perfect for professionals focused on precision and performance.
Key Features
- Compact & Lightweight - Optimized for weight and performance, giving you 25+ minutes in the air.
- High Sensitivity - Detects even the smallest gas leaks, ensuring environmental compliance and safety.
- Real-Time Imaging - Get instant feedback with live thermal visuals with
- Gas Enhancement Mode (GEM), which colorizes the hydrocarbon carbon gas leaks, for immediate action.
- Versatile Applications - Ideal for oil and gas, chemical plants, and utility companies requiring fast, efficient inspections.
- User-Friendly Integration - Uses the Freefly Smart Dovetail for easy mounting. Fully integrated with Astro and Pilot Pro for simple operation.
- NDAA Compliant
- Certified by EPA -
- OOOOa, OOOOb, OOOOc, and Appendix K certified
*Astro and Pilot Pro controller not included
- Sensor - Ventus OGI
- Detector Type - High Operating Temperature MWIR
- Array Format - 640 x 512
- Pixel Pitch - 15 micron
- Frame Rate - 30 Hz
- NETD - <50 mK
- Operating Temp - -35°C to +65°C (-31˚F to 149˚F)
- Lens - 25mm / F 1.5
- FOV - 21.7° x 17.5°
- Up to 8x digital zoom
- Gimbal - Freefly Lightweight Gimbal
- Mounting interface - Smart Dovetail
- Travel Case - SKB 3L-1209-4B-E
- Size - 13.125" x 11.375" x 5.5" (33.34 x 28.89 x 13.97 cm)
- Weight (without payload) - 1.68 kg / 3.7 lbs
- Weight
- For flight - 1,320 g / 2.91 lbs
- For transport (in travel case) - 3 kg / 6.1 lbs
- SKB Travel Case (SKB 3L-1209-4B-E) with custom insert
- Ventus OGI Payload w/ 25mm lens
- Lens cap
- Lens focus wrench
- Any Astro with an Astro Isolator
Optional Items
This isolator is required for operation on Astro and is not otherwise included with payload if removed now.
