LR1 Thermal Upgrade
Product Details
Add-on camera module to add LWIR thermal imaging to your LR1 payload on Astro!
This thermal module and its specific counterweight are user installable and mounts to the LR1 Payload with 7 screws and plugs into the expansion port. Once installed, users can switch between the main LR1 camera and thermal camera through Astro's live video feed.
This item is export controlled, ECCN 6A003.b.4.b. A signed disclosure that Freefly will keep on file is a requirement before we can ship.
Flir Boson 640
640 x 512 resolution Radiometric LWIR camera
13.6mm (63mm full frame equivalent) lens
92g installed weight
Geotagged images
Spot metering

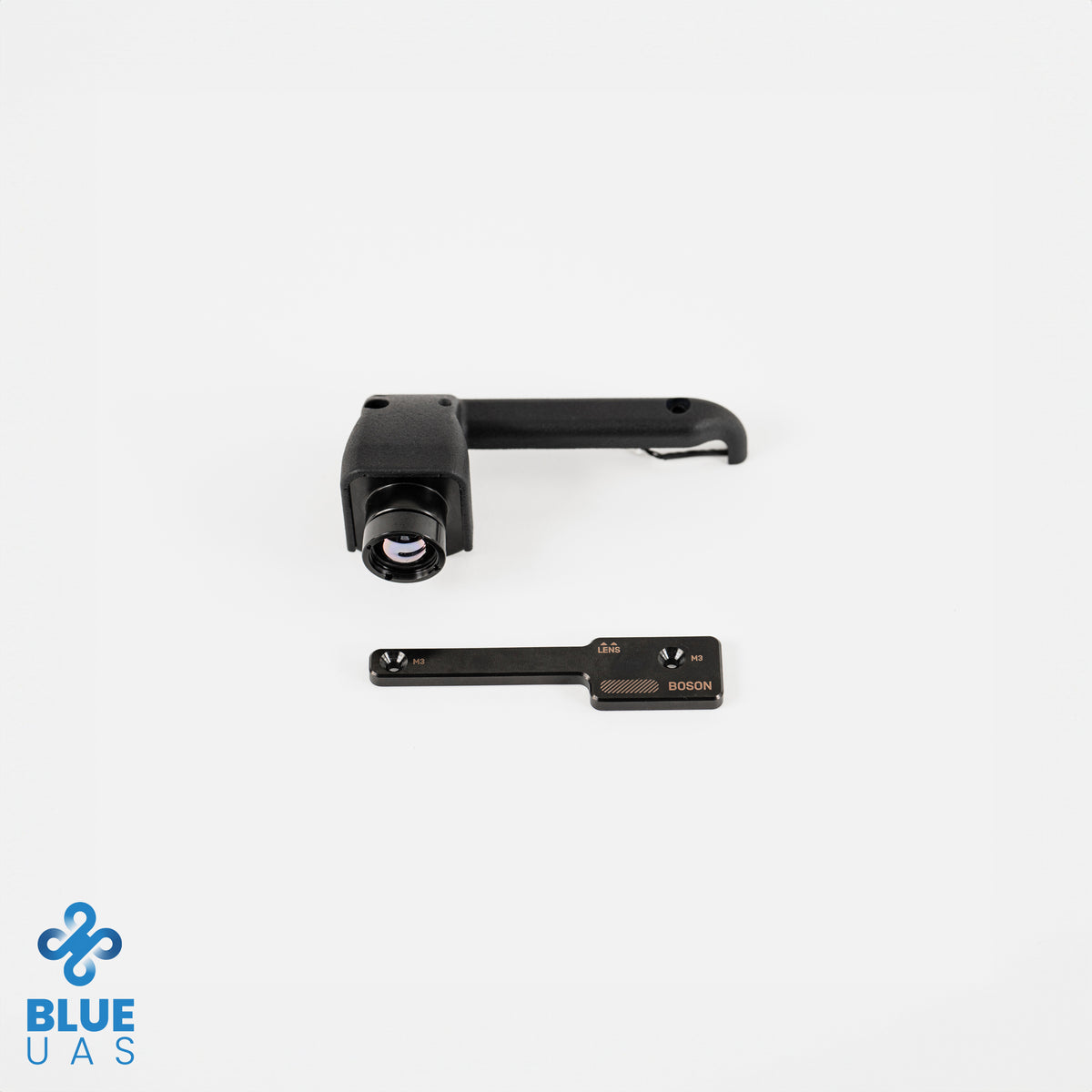

Qty 1 - Thermal Module for LR1 [Flir Boson 640R]
Camera mounting screws
Qty 4 - M3 x 10 SHCS
Counterweight mounting screws
Qty 3 - M3 x 8 FHCS
Qty 1 - Thermal module counterweight
Qty 1 - Counterweight for use with LRF
The LR1 Laser Range Finder Upgrade (910-00841) and LR1 Thermal Upgrade (910-00840) can be used together with LR1 Payload with the larger counterweight included with the Thermal Upgrade.
