Toad In The Hole M3 Quick Release Kit
Product Details

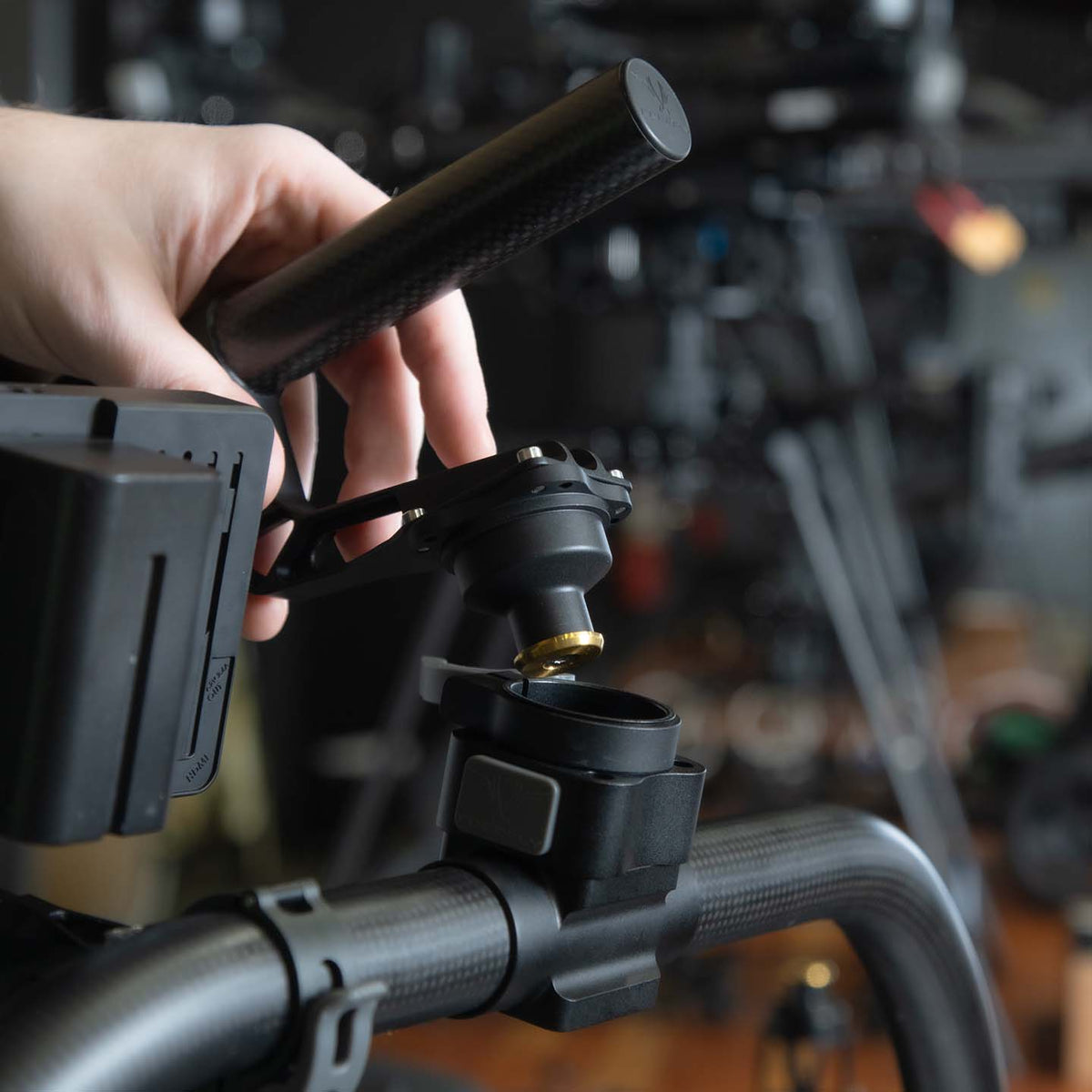

The Toad In The Hole Quick Release is a sleek, lightweight, low-profile quick release unit, which provides an easy mount and release solution for your Mōvi. It allows the operator to remove the Mōvi from the handle assembly and attach to any other method of filming carrier, such as a crane, jib, or car mount (with a Toad installed) in a matter of seconds. Fiddling around with alignment is not required when engaging the Quick Release - just attach and rotate to the desired angle (from 0-360°) for shooting. The Quick Release uses a clamp to secure the Mōvi. This clamp, along with the secondary release button, are used to release the Mōvi.
Features
- Lightweight, low-profile design
- Primary clamp and secondary safety catch release mechanism
- 6061-T6 CNC machined aluminum
- Titanium Nitride coated catch / release for durability
- Allows payload/Mōvi to be mounted in any orientation (0-360º)
- Compatible with (and already included with) Mōvi Pro & Mōvi Carbon
- Compatible with M-Series (M5 & M10) gimbals
- Dimensional specs available here
- Not compatible with FlowCine adapters*
*FlowCine Adapter would need to have 3.2 mm mounting holes bored out to accommodate M4 fasteners, not included.
- Dimensions: 56 mm (W) x 53 mm (D) x 40 mm (H)
- Mounting holes (Toad Male)*
- Qty 4 - M3 pass through (3.2 mm)
- Qty 4 - M4 pass through (4.3 mm)
- Qty 4 - M4 threaded (M4 x .07)
- Mounting hardware for Receiver (included)
- Qty 4 - M3 x 10 SCHS
- Weight: 125g
*Fasteners not included
- Qty 1 - Toad In The Hole Quick Release Receiver (with 4 M3 Fasteners)
- Qty 1 - Toad Male Hybrid (M3/M4)
- Mōvi Pro (every Mōvi Pro includes an M3 receiver)
- Mōvi Carbon (every Mōvi Pro includes an M3 receiver)
- Mōvi Ring Pro II (every Mōvi Ring Pro includes an integrated Toad Male)
- Mōvi Pro Low Profile Handle
- Ninja Star
- Cargo Landing Gear (for mounting payloads underneath)
- Anything with a 32mm square M3 mount pattern
- FlowCine Mounts*
*FlowCine adapters need to have the 3.2 mm mounting holes bored out to 4.3 mm thru, to accommodate M4 fasteners.
