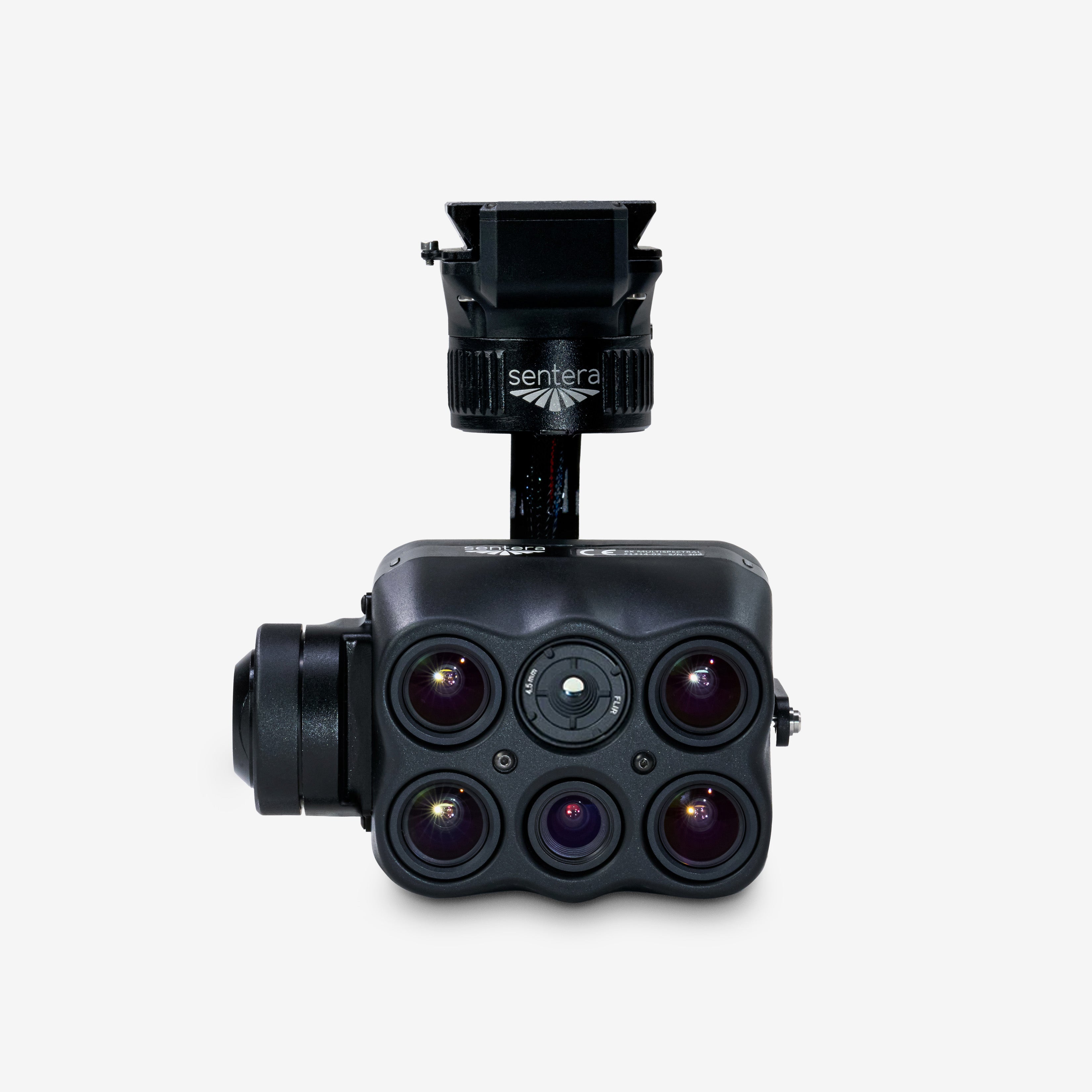

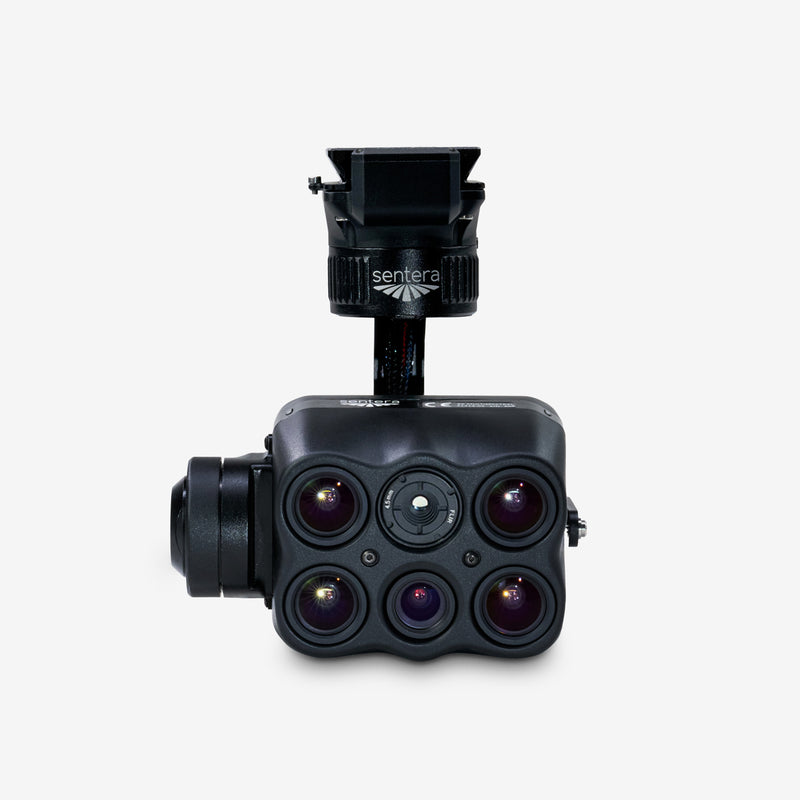

Sentera 6X Thermal Sensor with Gimbal (Smart Dovetail)
Sentera 6X Thermal Sensor with Gimbal (Smart Dovetail)
Sentera 6X Thermal Sensor with Gimbal (Smart Dovetail)
Sentera 6X Thermal Sensor with Gimbal (Smart Dovetail)
Sentera 6X Thermal Sensor with Gimbal (Smart Dovetail)

Sentera 6X Thermal Sensor with Gimbal (Smart Dovetail)

Add to Wishlist
$17,675.00 | Sku: 910-00836

Notice: This item ships from Sentera 3-4 weeks from date of order.

Product Details

The Sentera 6X family of sensors combines fast capture rates, outstanding optics, high-resolution, and exceptional spectral accuracy and separation. Now you can add radiometrically accurate, pixel-level temperature measurement across entire images with precision data fidelity.

This solution features a longwave infrared thermal camera, four simultaneously triggered, precision-filtered 3.2MP global-shutter imagers and one 20.1MP RGB imager, each with a dedicated, high-quality optical path.

Features

  • Real-time onboard multi-layer image registration
  • 5 frames per second sustained capture rate
  • Simple integration to drone platforms
  • Optional ambient color correction
  • Optimal data products for manipulation and distribution

Sentera PN: 21930-03

Image Sensors

  • Four Multispectral Sensors
    • 3.2MP
    • Global Shutter
    • GSD at 120m/400': 5.2cm/13.9"
    • 104mx76m FOV
    • Spectral Bands*
      • Green: 550nm x 20nm

      • Red: 670 nm x 30 nm

      • Red Edge: 715 nm x 10 nm

      • NIR: 840 nm x 20 nm

  • Single RGB Sensor
    • 20MP (Sony IMX147)
    • Rolling Shutter
    • GSD at 120m/400': 5.2cm/13.9"
    • 104mx76m FOV
  • Single Radiometric Sensor
    • FLIR Boson 320 x 256 LWIR
    • Thermal Accuracy: +/- 5C

    • GSD at 120m/400': 5.2cm/13.9"
  • 5 FPS Sustained Capture Rate
  • Synchronized and Aligned Image Capture



Storage

  • 512GB Internal SSD
  • MicroSD (logging data)



Interfaces

  • Freefly Smart Dovetail (on lightweight gimbal)
  • USB-C
  • Gigabit Ethernet



Dimensions (with with gimbal) 557.6

  • Weight: 511g



*Want custom filtering? Sentera does support custom filter options for 6X. See their support documentation for information.

  • Travel Case w/ Custom Foam
    • 6X Thermal Sensor
    • Gimbal with Smart Dovetail
    • Incident Light Sensor & GPS
    • Calibrated Reflectance Panel
    • Light Sensor Mounting Kit
    • 10ft USB-C Cable
    • AC Wall Power Adapter
    • Right Angle USB-C adapter
