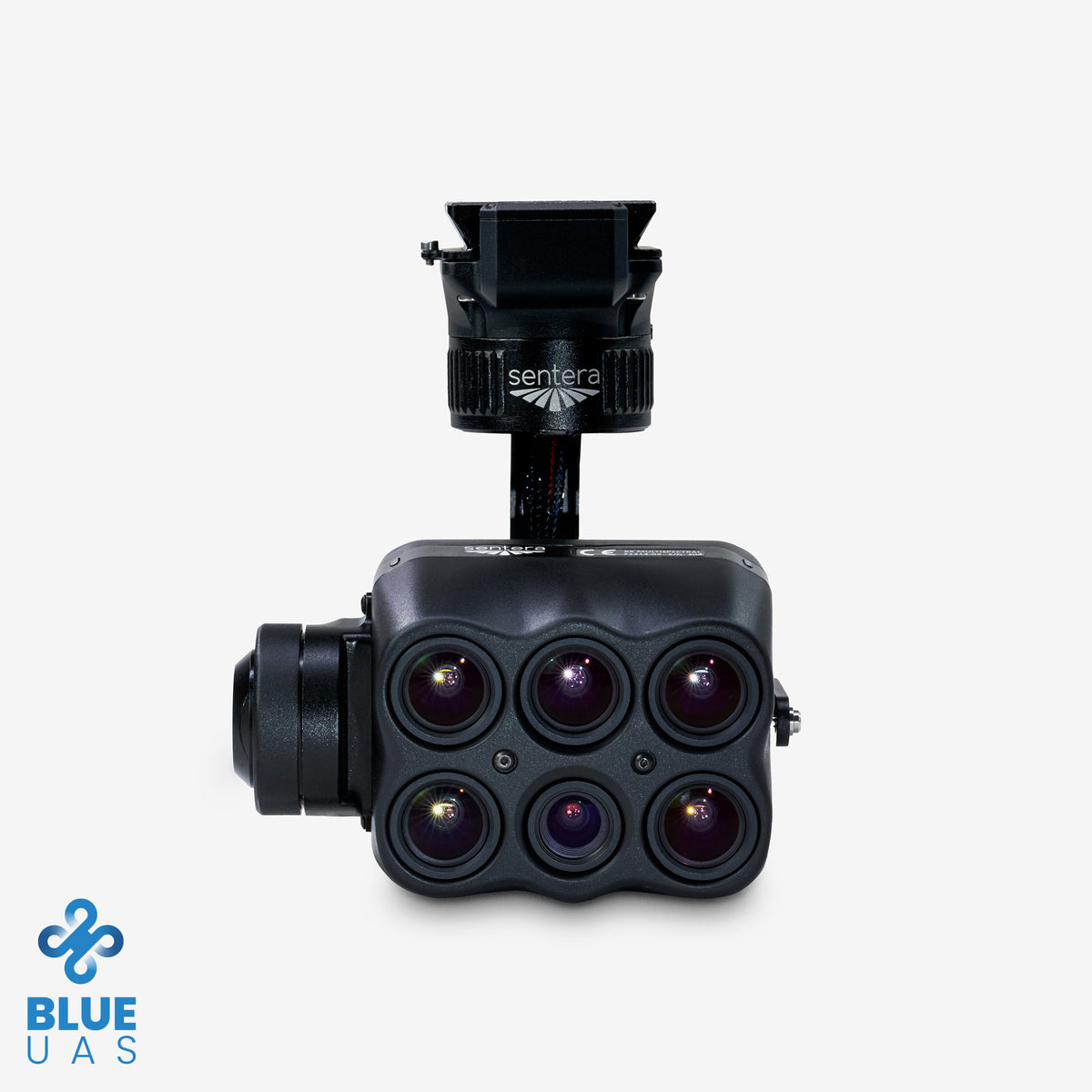

Sentera 6X Multispectral Sensor with Gimbal (Smart Dovetail)
Sentera 6X Multispectral Sensor with Gimbal (Smart Dovetail)
Sentera 6X Multispectral Sensor with Gimbal (Smart Dovetail)
Sentera 6X Multispectral Sensor with Gimbal (Smart Dovetail)
Sentera 6X Multispectral Sensor with Gimbal (Smart Dovetail)
Sentera 6X Multispectral Sensor with Gimbal (Smart Dovetail)
Sentera 6X Multispectral Sensor with Gimbal (Smart Dovetail)

Sentera 6X Multispectral Sensor with Gimbal (Smart Dovetail)

Add to Wishlist
$13,925.00 | Sku: 910-00835

Notice: This item ships from Sentera 2-3 weeks from date of order.

Product Details

Experience the ultimate solution for capturing synchronized high-res RGB and accurate radiometric multispectral imagery with the Sentera 6X Sensor.

With gimbal stabilization and ample 512GB internal storage, this sensor offers unrivaled performance and value, making it the perfect choice for longer flights and larger coverage areas. Trust the 6X to deliver exceptional results for every project.

Features

  • 5 3.2MP Multispectral Sensors
  • 20MP RGB Sensor
  • 5 FPS image capture
  • Internal IMU
  • Freefly Smart Dovetail Quick-Release

Sentera PN: 21930-02

Image Sensors

  • Five Multispectral Sensors
    • 3.2MP
    • Global Shutter
    • GSD at 120m/400': 5.2cm/13.9"
    • 104mx76m FOV
    • Spectral Bands*
      • Blue (475nm center, 30nm bandwidth)
      • Green (550nm center, 20nm bandwidth)
      • Red (670nm center, 30nm bandwidth)
      • Red Edge (715nm center, 10nm bandwidth)
      • Near-IR (840nm center, 20nm bandwidth)
  • Single RGB Sensor
    • 20MP (Sony IMX147)
    • Rolling Shutter
    • GSD at 120m/400': 5.2cm/13.9"
    • 104mx76m FOV
  • 5 FPS Sustained Capture Rate
  • Synchronized and Aligned Image Capture



Storage

  • 512GB Internal SSD
  • MicroSD (logging data)



Interfaces

  • Freefly Smart Dovetail (on lightweight gimbal)
  • USB-C
  • Gigabit Ethernet



Dimensions (with with gimbal) 557.6

  • Weight: 511g



*Want custom filtering? Sentera does support custom filter options for 6X. See their support documentation for information.

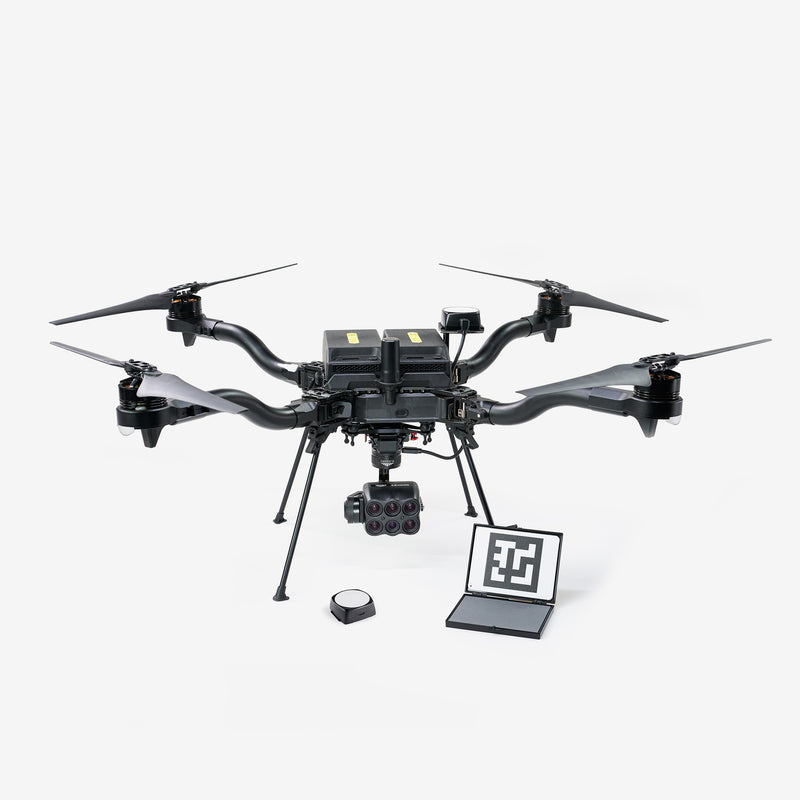

  • Travel Case w/ Custom Foam
    • 6X Multispectral Sensor
    • Gimbal with Smart Dovetail
    • Incident Light Sensor & GPS
    • Calibrated Reflectance Panel
    • Light Sensor Mounting Kit
    • 10ft USB-C Cable
    • AC Wall Power Adapter
    • Right Angle USB-C adapter
