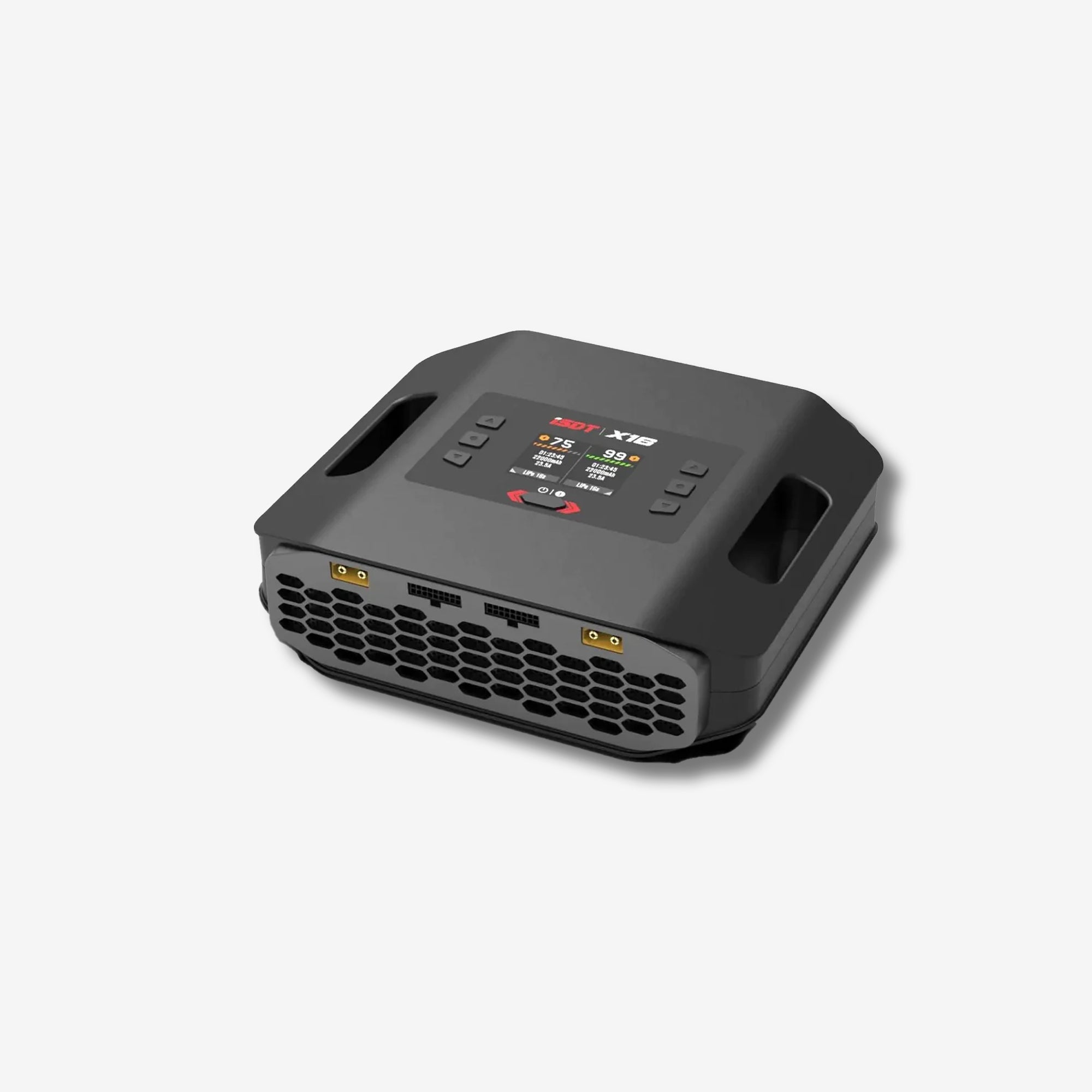

ISDT X16 Professional Dual Channel Charger
Product Details
Each Alta X flight requires two 12S batteries, so you'll need a charger like this that can charge two at a time.
This battery charger is a dual output balancing charger with an integrated power supply. It can charge two Alta X Flight Packs at once in less than two hours (for fully depleted batteries).
We include all necessary cabling and accessories to allow users to charge two Alta X Flight Packs at once.
Features
- Dual Charging
- Integrated power supply
- Cell balancing
- Storage charge/discharge mode
- Protection against: Overcurrent, overload, under-voltage, short circuit, over-temp, and reverse polarity
- Adjustable charge rate (across voltage inputs)
- Automatic voltage switching (110V-240V) for worldwide use*
*Ships with US plug
- Input Voltage - AC 110V-240V
- Output voltage: DC 10~72V
- Charging current: 1.0~20.0A ×2
- Charge power max
- 1100W ×2(@220V AC)
- 800W x2 (@110V AC)
- Discharge power max - 50W x2
- Discharging current: 0.5~3.0A ×2
- LiPo battery cell count - 2-12S
- Other supported batteries - LiFe, LiHv*
- Abnormal voltage alarm: Yes
- Incorrect cell count setting alarm: Yes
- Working temperature: 0℃~40℃
- Storage temperature: -20℃~60℃
- Upgrade connectivity - Bluetooth / mobile app
- Size - 10.87 x 9.6 x 3.23" (276 × 246 × 82mm)
- Weight - 7.72lbs (3.5kg)
*Connectors/cables not included
- Qty 1 - Dual Channel Charger
- Qty 2 - XT90 Charging Leads
- Qty 2 - Balance Leads for 12S Alta X Batteries
- Qty 2 - Balance connectors for 6S/10S/12S LiPo batteries (not 14S)
- Qty 1 - Power cable (110V US style plug)
