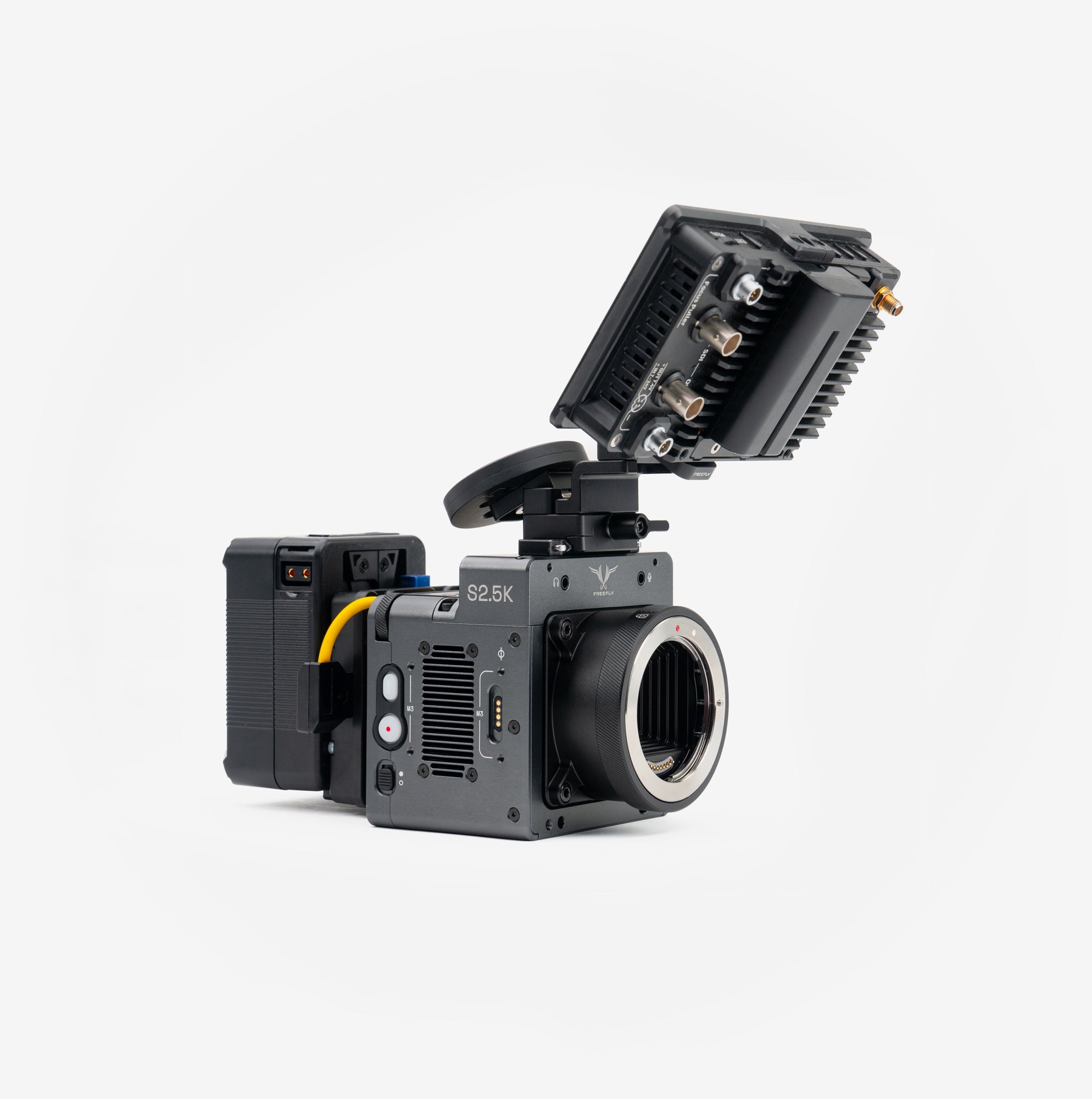

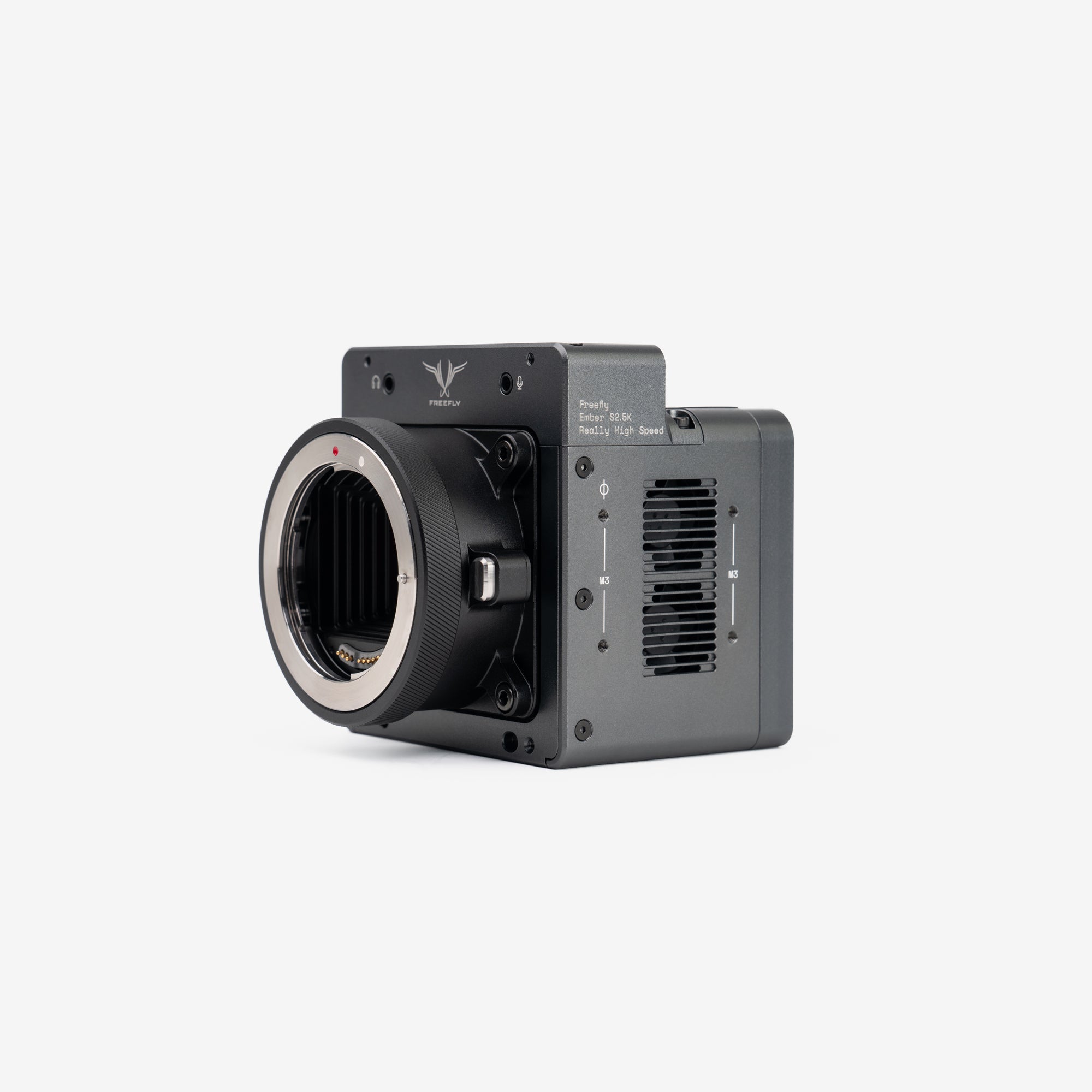

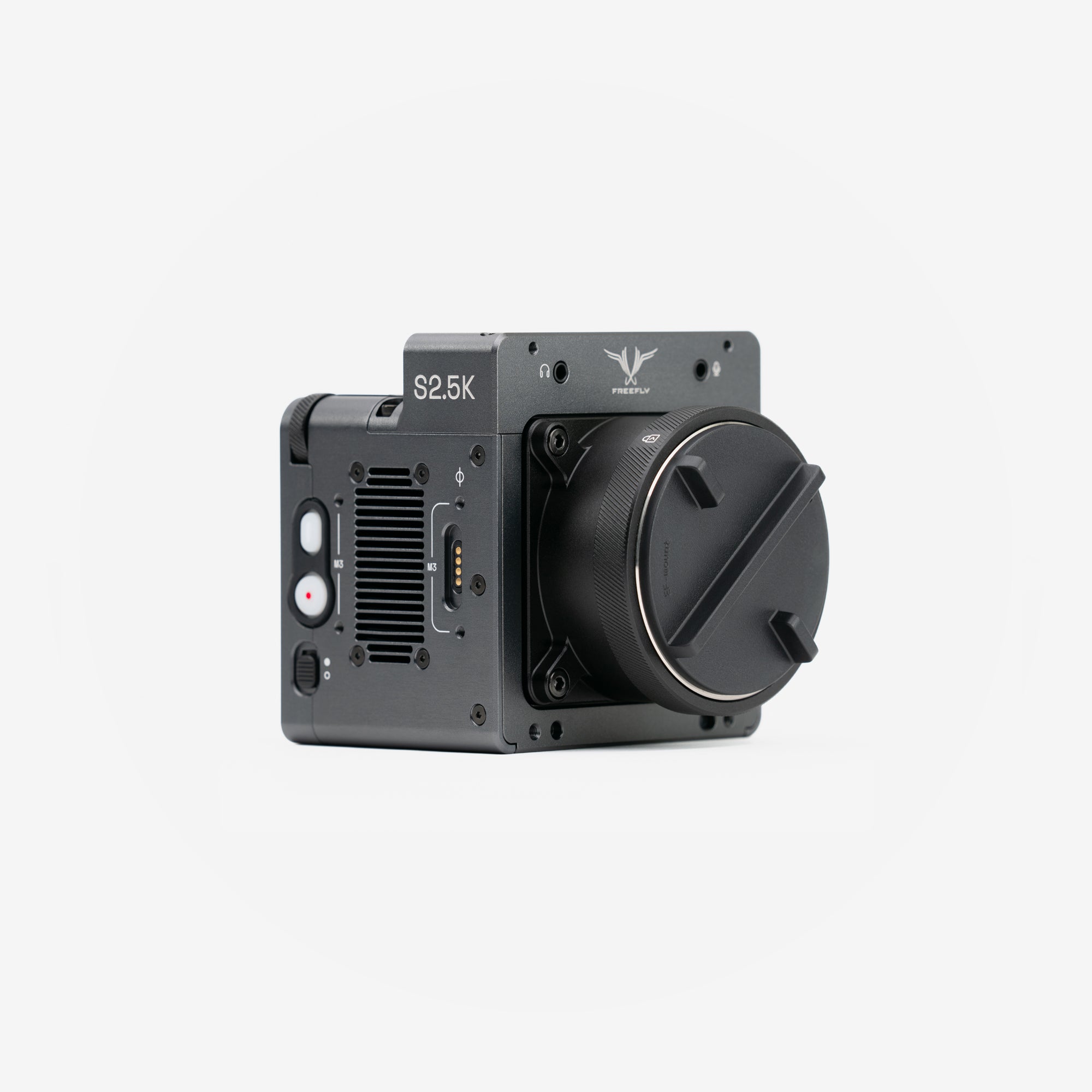

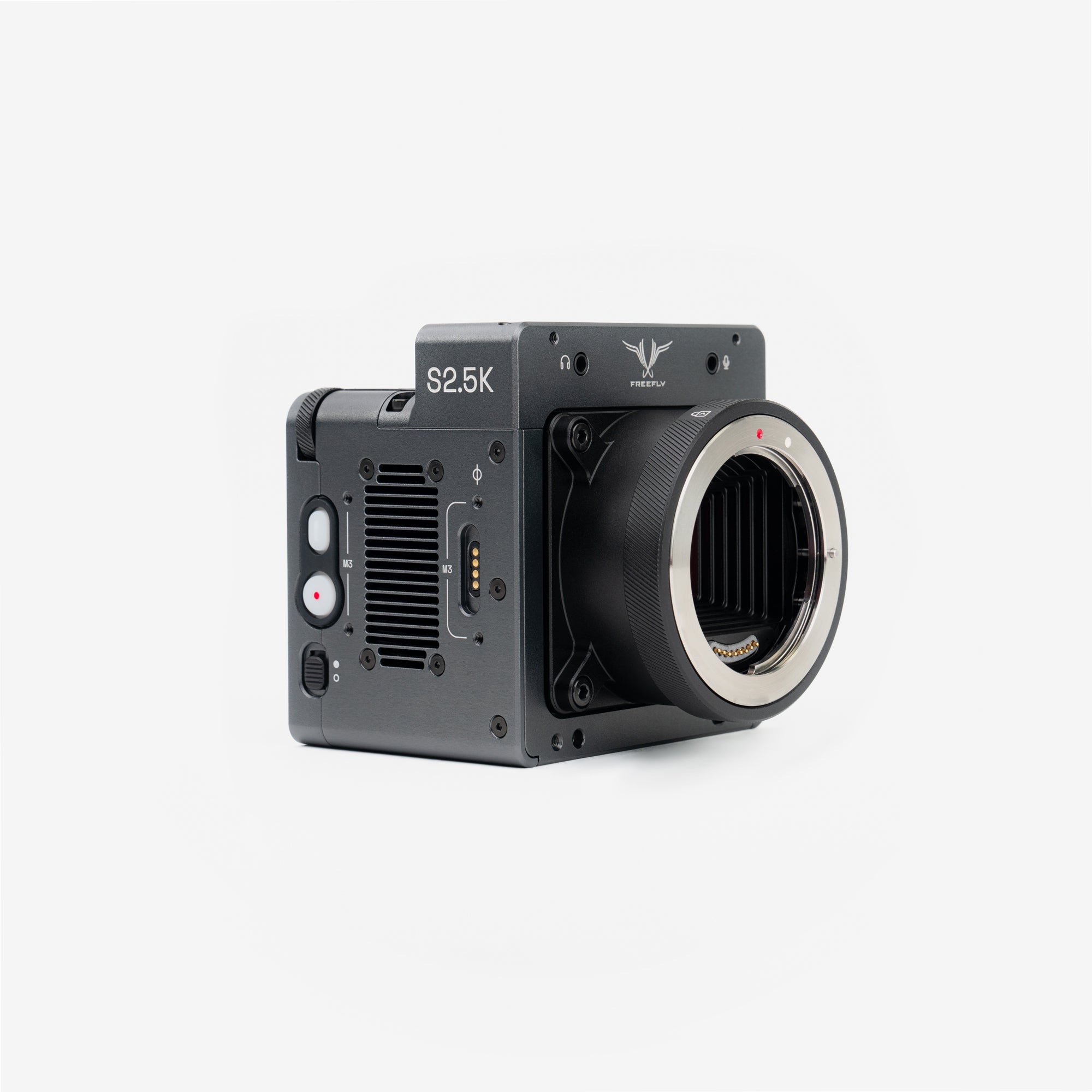

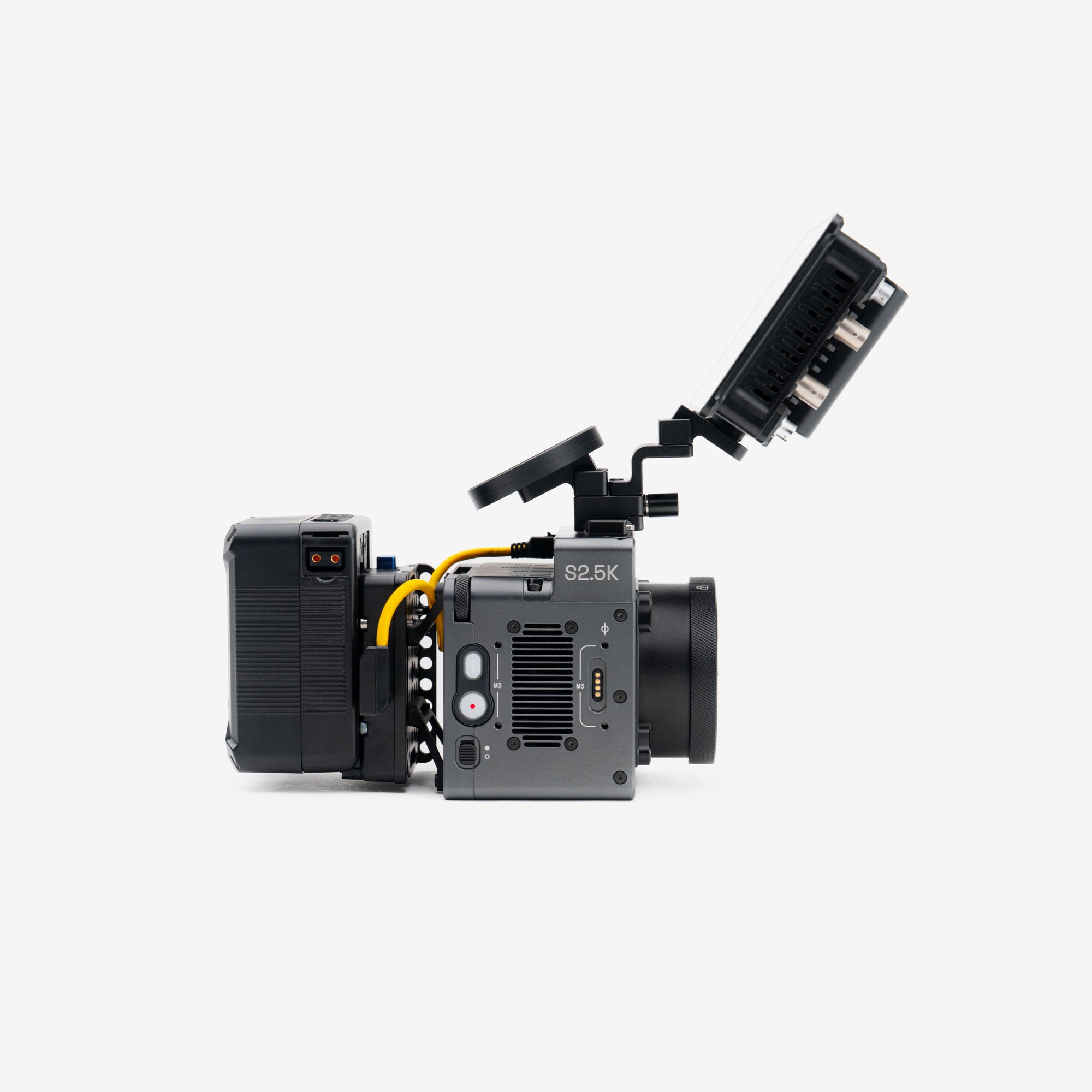

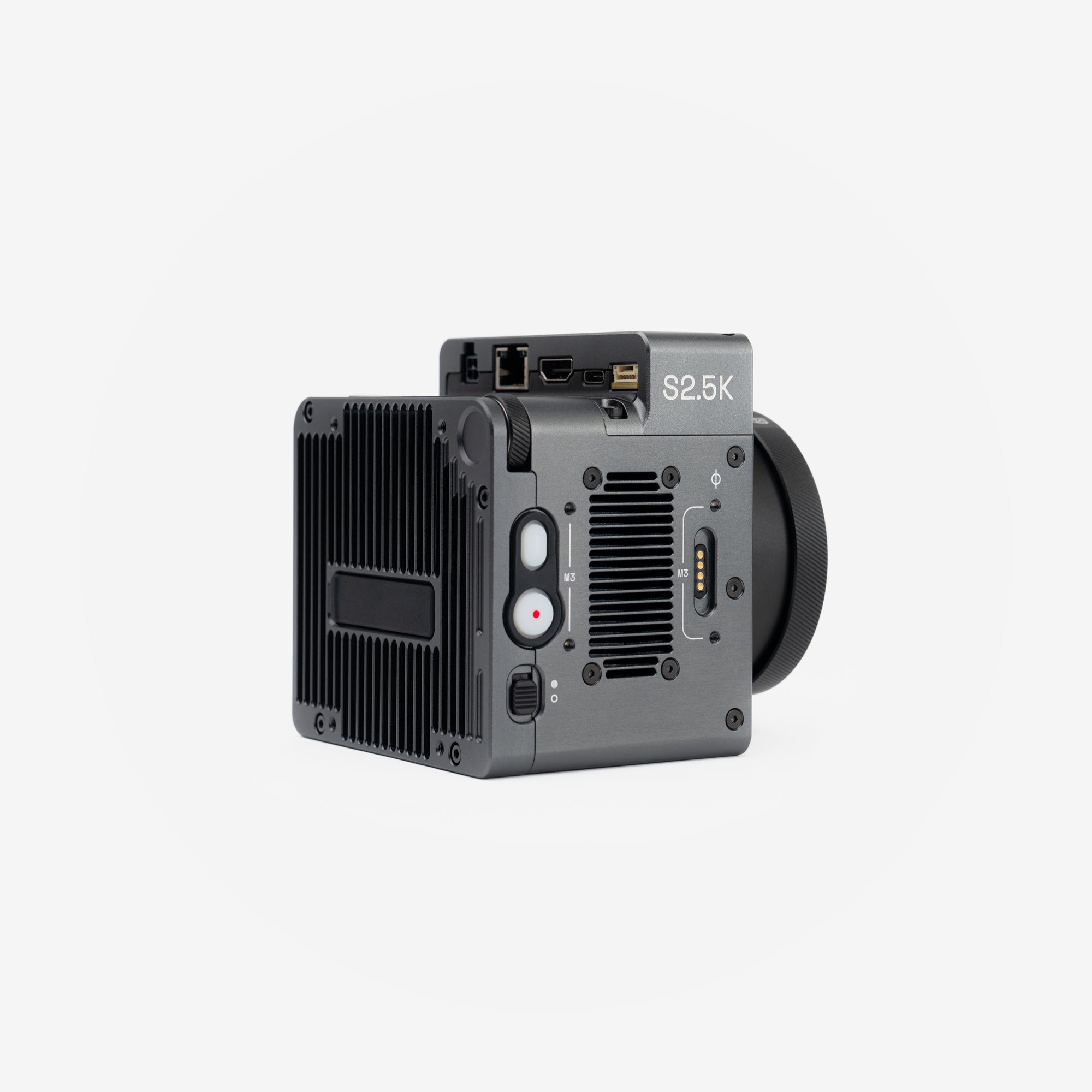

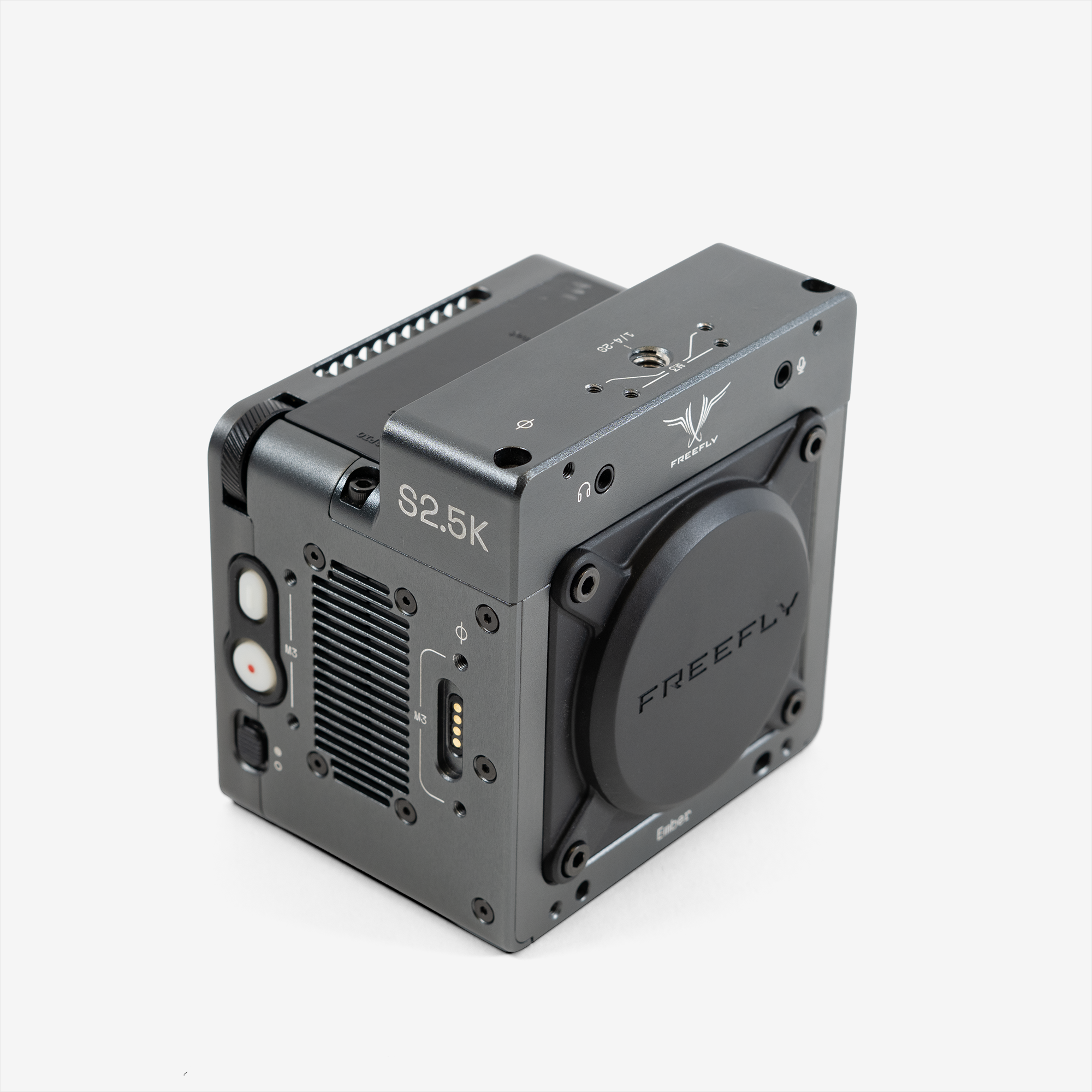

Ember S2.5K (L-Mount, 4TB)
Ember S2.5K
Product Details
Ember S2.5K allows you to view the world in an entirely new way. Investigate aerodynamics, vibration and motion at 3,000+ fps more quickly than ever before.
Supported by the same ecosystem of accessories as the Ember S5K, you can kit your Ember S2.5K for exactly what you need, from run-n-gun to full studio setups to robot arms to FPV drones.
Features
- 2.5K full res: 2,277 fps
- 2.5K max fps: 3,563 fps
- Continuous Recording
- Pre-Record (adjustable from 1 second to 2 hours)
- Apple ProRes Codec (ProRes 422 LT)
- Fast iOS/iPadOS and macOS based app workflow with live app preview
- Modular Ecosystem
- Gpixel sensor
- Multiple Lens Mount options
- Active EF compatible lens mount (tested lenses)
- L-Mount (compatible with all L-Mount Alliance lenses)
- Two Second boot up
- Two internal drive options:
- 2.56TB high-endurance pSLC SSD rated for 10,000 hours of continuous recording to enable internal Pre-Record function.
- 4TB high speed, large capacity SSD (no internal Pre-Record)
- Global Shutter
- Wireless Control
- USB 3.2 Type C
- S35 Gpixel Sensor
- Recording Modes
- Color - 2.5K, 2K
- Actual formatted data capacity - 2,534GB
- Active EF compatible lens mount
- 10bit Apple ProRes Codec
- Weight (with included electronic EF lens mount): 900g, 1.98lbs
- Dimensions (with included electronic EF lens mount) 100 mm x 100 mm x 110mm (WHD), 3.94 x 3.94 x 4.33" (WHD)
- Full specs here
- Qty 1 - Ember S2.5K camera body (2.56TB internal pSLC SSD)
- Qty 1 - Active EF compatible lens mount, pre-installed
- Qty 1 - USB PD to XT30 Adapter (20V)
- Qty 1 - XT30 to 4-pin Microfit Power Cable (5')
- Qty 1 - USB C-C 3.0 Cable (3')
- Qty 1 - D-Tap-Ember Power Cable (6")
- Qty 1 - Rear accessory mount stand-offs (pair)
- Qty 8 - M3 x 10mm SHCS fasteners for accessory mounts
- EF mount lenses
- Mechanically, any lenses with EF mount, with or without electronic internals
- Electronically, compatible lens can be controlled (iris/focus) by Ember through camera and iOS/macOS app, but will not auto-focus
- Alternate Lens Mounts
- Freefly L-Mount (Active)
- KipperTie Revolva FE/PL
- KipperTie Adapta FE/PL-LW
- C7 Adapters (Non-Electronic: M, EF, RF, Nikon, FD, PL, LPL)
- Ember specific accessories
Ember S2.5K Camera Options
Please choose your Ember S5K Lens Mount Option). 4TB for maximum capacity or 2.56TB for internal pre-record function.
Exernal Media
Speed up your offboarding workflow with external media
Media Expander
Mounts to Ember for External Media access and SDI output
External SSD (4TB)
Recommended quantity: 2
Large capacity drive for maximum recording capacity on Ember.
External SSD with Pre-Record (1.28TB)
Pre-Record ready external drive. Commonly used in pairs.
External SSD with Pre-Record (2.56TB)
Pre-Record ready external drive. Commonly paired with 4TB internal drive.

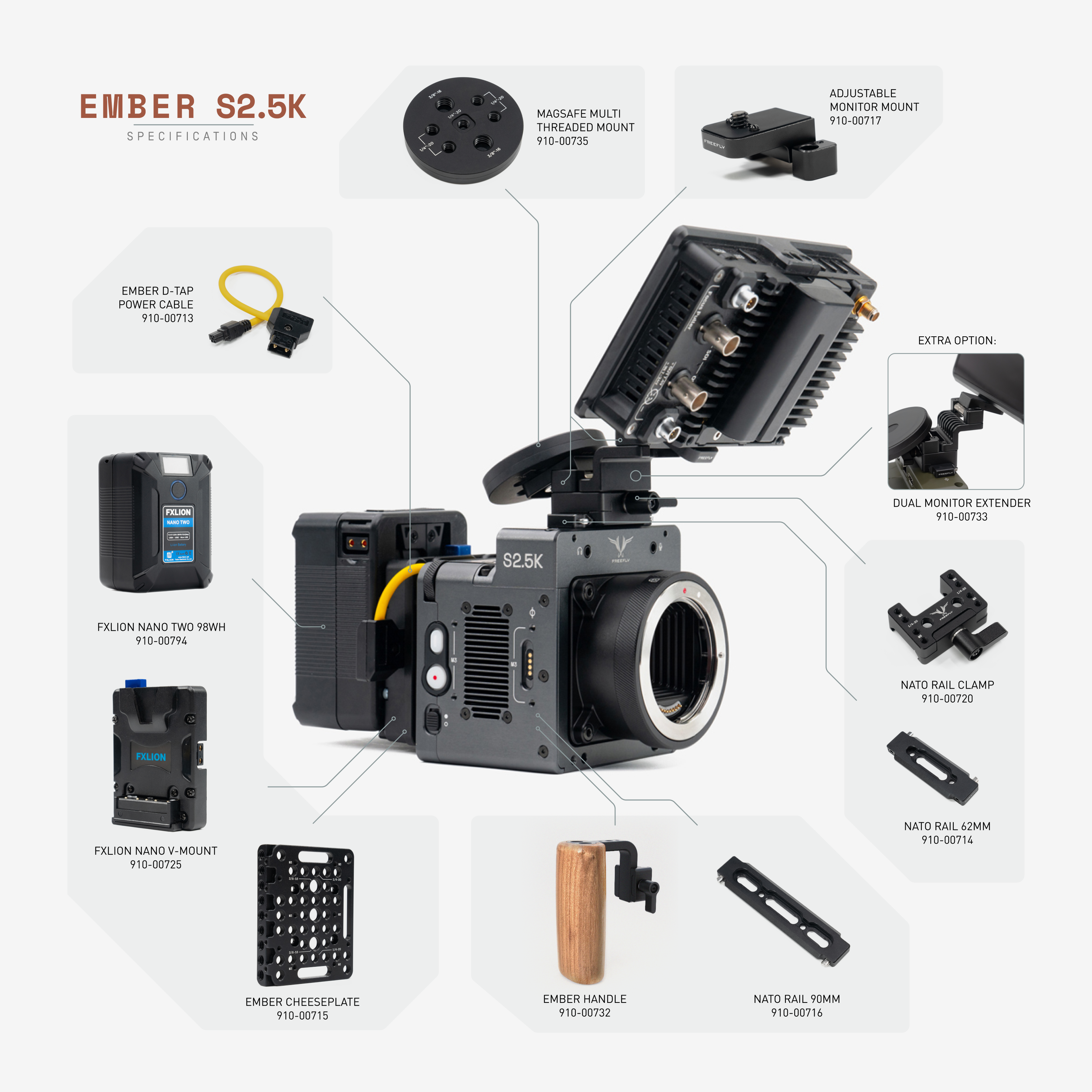

NATO Accessories
These accessories give you expansive options for mounting accessories to your Ember
62mm (910-00714) NATO Rail
Recommended quantity: 1
90mm (910-00716) NATO Rail
Recommended quantity: 1
NATO Rail Clamp
Recommended quantity: 1
Provides two mounting points for our Adjustable Accessory Mounts
NATO Side Handle
Recommended quantity: 1
Adjustable, reversible wood handle with 1/4 20 mount on top
Mounting Devices
Options for mounting monitors and mobile devices.
Adjustable Accessory Mount
Recommended quantity: 2
Tool-less adjustments 1/4 20 accessories, works with NATO Clamp or Ember
Dual Monitor Height Booster
Recommended quantity: 1
Gives you more clearance when using a monitor and plus sized phone on Ember
Moment Multi Threaded Mount for MagSafe®
Recommended quantity: 1
MagSafe® that mounts to the Adjustable Accessory Mount to hold MagSafe® compatible phones on Ember
Phone Clamp Mount
Robust phone mount with 1/4 20 mount points and holes for ARRI anti-rotate pins, fits all size phones
Tablet Clamp Mount
Robust iPad mount with holes for ARRI anti-rotate pins, fits all size iPads
NATO Monitor Phone Combo Bracket
L-Bracket for mounting your phone next to your monitor on our Adjustable Accesory Mount or any 1/4 20 mount
Power
AC Power Adapter (Microfit 4-pin)
Recommended quantity: 1
AC Adapter for extended shoots and offloading
D-Tap to 4-Pin Microfit Power Cable (36in)
36in D-tap power cable for creative power solutions
Ember Cheese Plate Plus
Mount for 3rd party battery plates (V and Gold Mount)
FXLION Nano V-Mount Plate
Lightweight V-Mount battery plate
FXLION Nano One 14.8V 3.4Ah/50Wh
Recommended quantity: 2
V-mount battery - ~50 minutes recording on S5K
FFXLION Nano Two 14.8V 6.8Ah/98Wh
Recommended quantity: 2
V-mount battery - ~90 minutes recording on S5K
Data & Control
USB C to USB C 3.0 Cable (1 m)
Recommended quantity: 1
Spare USB C-C 3.0 cable for data transfer
Mōvi Pro Wave / Ember Remote Control Cable
Recommended quantity: 1
Trigger start/stop record from on Mōvi Pro or use to build a custom trigger cable
PL Lens Mount from KipperTie
Revolva FE/PL
Replaces the native locking E-mount with a PL mount that accepts rear drop-in Revolva filter cartridges
Revolva Cartridge A – ND 0, 0.3, 0.6, 0.9
Drop in ND filter for Revolva Lens Mounts
Adapta FE/PL-LW
Lightweight PL lens mount adapter for Ember
