XL Camera Plate
$449.00
XL Camera plate allows users to securely mount their camera to MōVI XL dovetail. It features a ARRI...
SKU: 950-00075
Free Shipping
On Domestic Orders

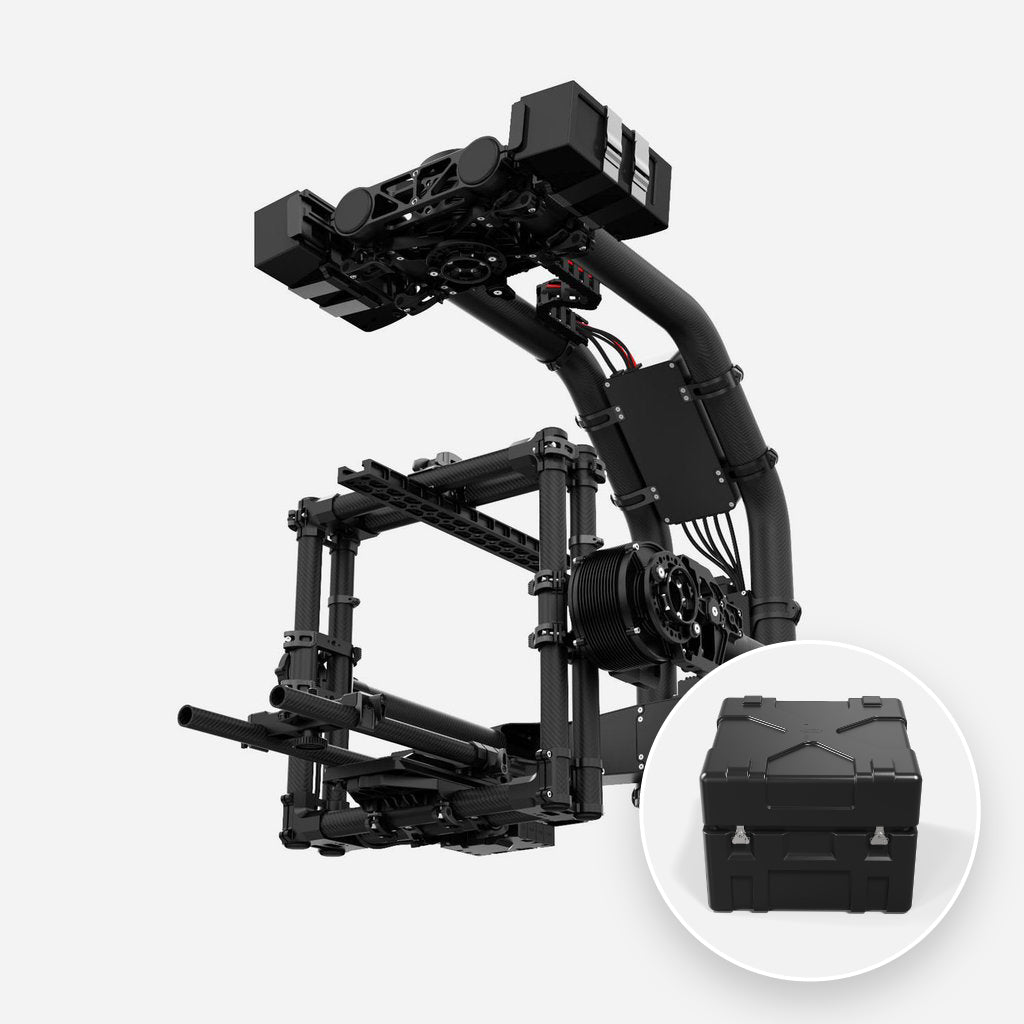

Mōvi XL with Case
Add to Wishlist
$21,490.00
Mōvi hit the gym! We took everything great about the Mōvi Pro and added some serious horsepower for the world's biggest cameras. Mōvi XL is a lightweight, portable system that allows users to capture stable imagery in the most demanding environments.
Complete Your Setup
Support
XL Dovetail
$399.00
XL Dovetail allows users to attach XL Camera Plate to the gimbal. XL Dovetail bolts to the MōVI...
19mm x 300mm Carbon Lens Rod
$70.00
Ultra rigid 19mm x 300mm Carbon Lens Rod ensures that your camera and lens combination is as stiff...
XL Lens Support
$225.00
XL lens support allows users to rigidly tie the lens into the dovetail plate. This helps to ensure...
Control
MōVI Controller
$3,500.00
The Mōvi Controller is a professional grade remote system that allows the operator full control over pan, tilt,...
Pilot 3 Axis F/I/Z Controller
$3,500.00
Pilot is a fully featured 3 axis F/I/Z controller that seamlessly integrates with both MōVI Pro and MōVI...
MIMIC with Handlebars
$995.00
MIMIC offers precise and natural control of the MōVI Pro. Using Freefly’s innovative MIMIC technology, the camera automatically...
Mōvi Controller Receiver RP-SMA
$179.00
With the Mōvi Controller Receiver, easily connect your Mōvi Controller to multiple Mōvis on the fly, depending on the shot at...
Mōvi Wheels
from $1,495.00
The Mōvi Wheels system is a state-of-the-art wheel controller that connects cutting edge cinema robotics with classic controls....
Case

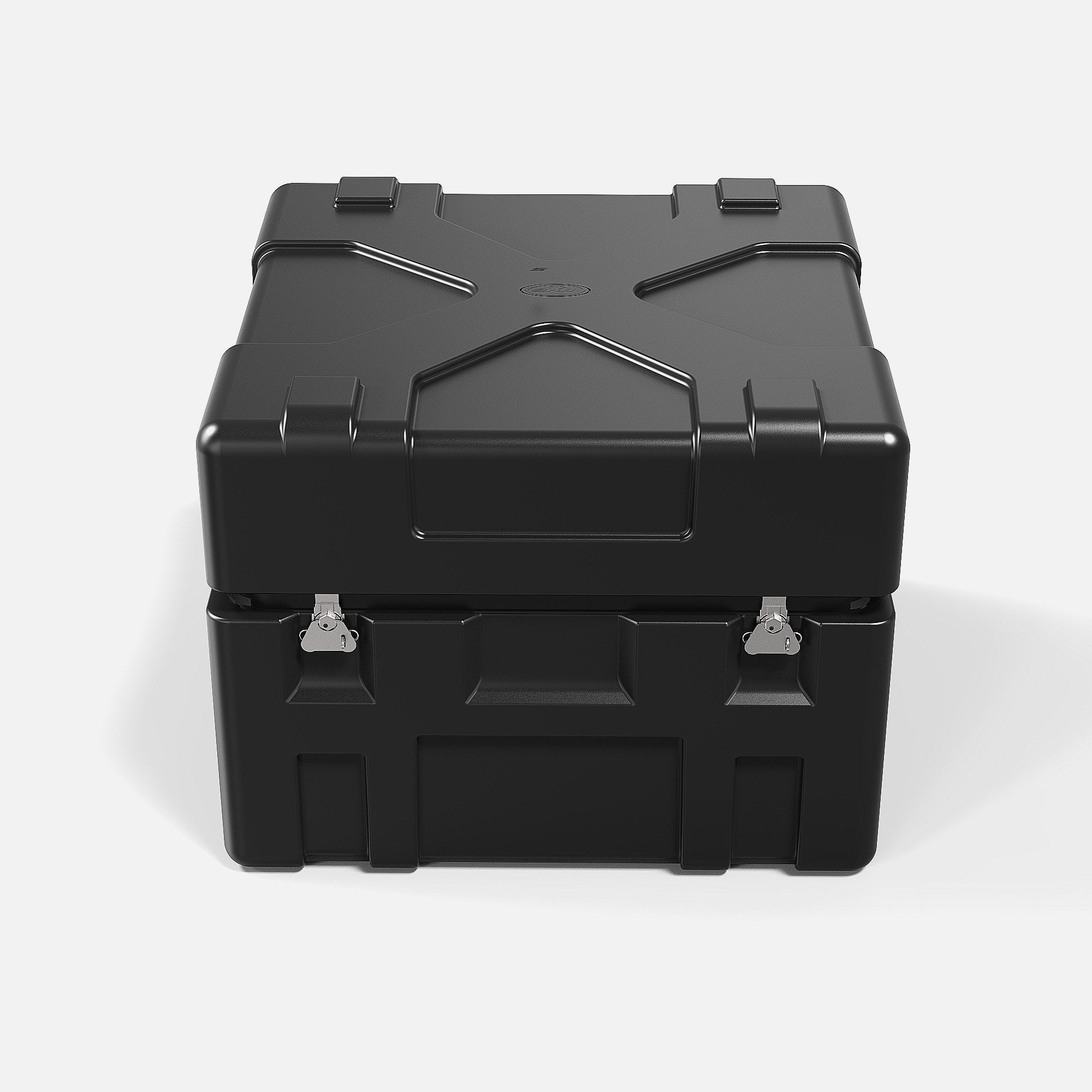

MōVI XL Travel Case
$1,495.00
MōVI XL Travel Case allows users to quickly go from shooting to traveling. The case has CNC cut...
Mounting
Quick Release Kit
$499.95
Mōvi XL quick release kit allows users to quickly mount / dismount the gimbal from a variety of...
MōVI XL to Mitchell Adapter
$499.95
MōVI XL features a 6 bolt pattern allowing users to mount the gimbal to a variety of devices....
Power
MōVI XL Battery
$299.00
MōVI XL batteries are the core of the new MōVI XL ecosystem. They enable users to have unlimited...
MōVI XL Charger
$200.00
MōVI XL battery charger is a dual output balancing charger with integrated power supply. It can charge...
Accessories
13mm Dual Quick Release Mount
$95.00
Use this accessory to mount two accessories equipped with 13mm plugs to a single 13mm mount point. Great...
13mm Quick Release Baseplate
$50.00
Add this 13mm quick-release attachment point to anything equipped with either a 1/4-20 stud or threaded hole, for...
Quick Release Plug 13mm
$24.95
Quickly mount a variety of small accessories to the Mōvi Ring, Mōvi Pro Classic Handle, Low Profile Handle,...
Pop-N-Lock 50mm Quick Release
$135.00
MōVI Users like to customize and modify their rigs for their specific applications. This means mounting a variety...
Pop-N-Lock 25mm Quick Release
$99.95
Mōvi users like to customize and modify their rigs for their specific applications. This means mounting a variety...
Pop-N-Lock 19mm Quick Release
$99.95
MōVI Users like to customize and modify their rigs for their specific applications. This means mounting a variety...
Pop-N-Lock Screw Mount Quick Release
$99.95
MōVI Users like to customize and modify their rigs for their specific applications. This means mounting a variety...
Lightweight Right Angle Micro to Mini Video Cable (1.5m)
$30.00
This super-flexible video cable was designed to connect a device with a mini connector (C) to a device...
Lightweight Mini to Standard Video Cable (1.5m)
$30.00
This super-flexible video cable was designed to connect a device with a mini connector (C) to a device...
Lightweight Mini to Standard Video Cable (.7m)
$30.00
This super-flexible video cable was designed to connect a device with a mini connector (C) to a device...
Lightweight Standard to Standard Video Cable (3m)
$39.99
This super-flexible video cable was designed to connect a device with a standard/full connector (A) to a device with...
Lightweight Right Angle Micro to Standard Video Cable (3m)
$39.99
This super-flexible video cable was designed to connect a device with a micro connector (D) to a device with a standard/full...
Lightweight Standard to Standard Video Cable (1.5m)
$30.00
This super-flexible video cable was designed to connect a device with a standard/full connector (A)) to a device with...
Cables
MōVI Pro / XL Lens Motor Cable - Long
$235.00
This lens cable features custom cable which is ultra thin and flexible for the most difficult camera installations...
Mōvi Pro / XL RED RCP Serial Cable - Long
$235.00
This cable allows users to gain access to RED’s Redlink Command Protocol when connected to the ‘CTRL’ port...
MōVI Pro / XL ARRI Start/Stop Cable - Long
$235.00
This cable allows users to access ARRI’S Start / Stop command. This allows users to start and stop...
RED EPIC D-tap Power Cable - Long
$325.00
This cable allows users to power their RED Epic/Weapon/Scarlet from the Mōvi XL’s camera power port. The cable...
MōVI Pro COM to MōVI Controller Receiver Cable
$5.99
This cable allows users to connect their MōVI Controller Receiver to the MōVI Pro. This allows users full...
MōVI Pro COM to Futaba Cable
$5.99
This cable allows users to connect their Futaba Receiver to the MōVI Pro. This allows users full control...
ARRI Alexa Mini D-Tap Power Cable - Long
$325.00
Power your ALEXA Mini via D-tap with a high-strand count, silicon-wrapped wire for maximum durability and flexibility. Features...
MōVI Pro / XL LANC Serial Cable - Long
$24.95
This cable allows users to access their camera's LANC commands. This allows users to start and stop camera...
Lightweight Right Angle Micro to Mini Video Cable (0.7m)
$30.00
This super-flexible cable is designed to send picture from camera to a monitor or video downlink without the...
Freefly Lightweight Right Angle Micro to Standard Video Cable (1.5m)
$30.00
This super-flexible video cable was designed to connect a device with a micro connector (D) to a device...
Lightweight Right Angle Micro to Mini Video Cable (1.5m)
$30.00
This super-flexible video cable was designed to connect a device with a mini connector (C) to a device...
Lightweight Mini to Standard Video Cable (1.5m)
$30.00
This super-flexible video cable was designed to connect a device with a mini connector (C) to a device...
Lightweight Mini to Standard Video Cable (.7m)
$30.00
This super-flexible video cable was designed to connect a device with a mini connector (C) to a device...
Lightweight Standard to Standard Video Cable (3m)
$39.99
This super-flexible video cable was designed to connect a device with a standard/full connector (A) to a device with...
Lightweight Right Angle Micro to Standard Video Cable (3m)
$39.99
This super-flexible video cable was designed to connect a device with a micro connector (D) to a device with a standard/full...
Lightweight Standard to Standard Video Cable (1.5m)
$30.00
This super-flexible video cable was designed to connect a device with a standard/full connector (A)) to a device with...
Overview

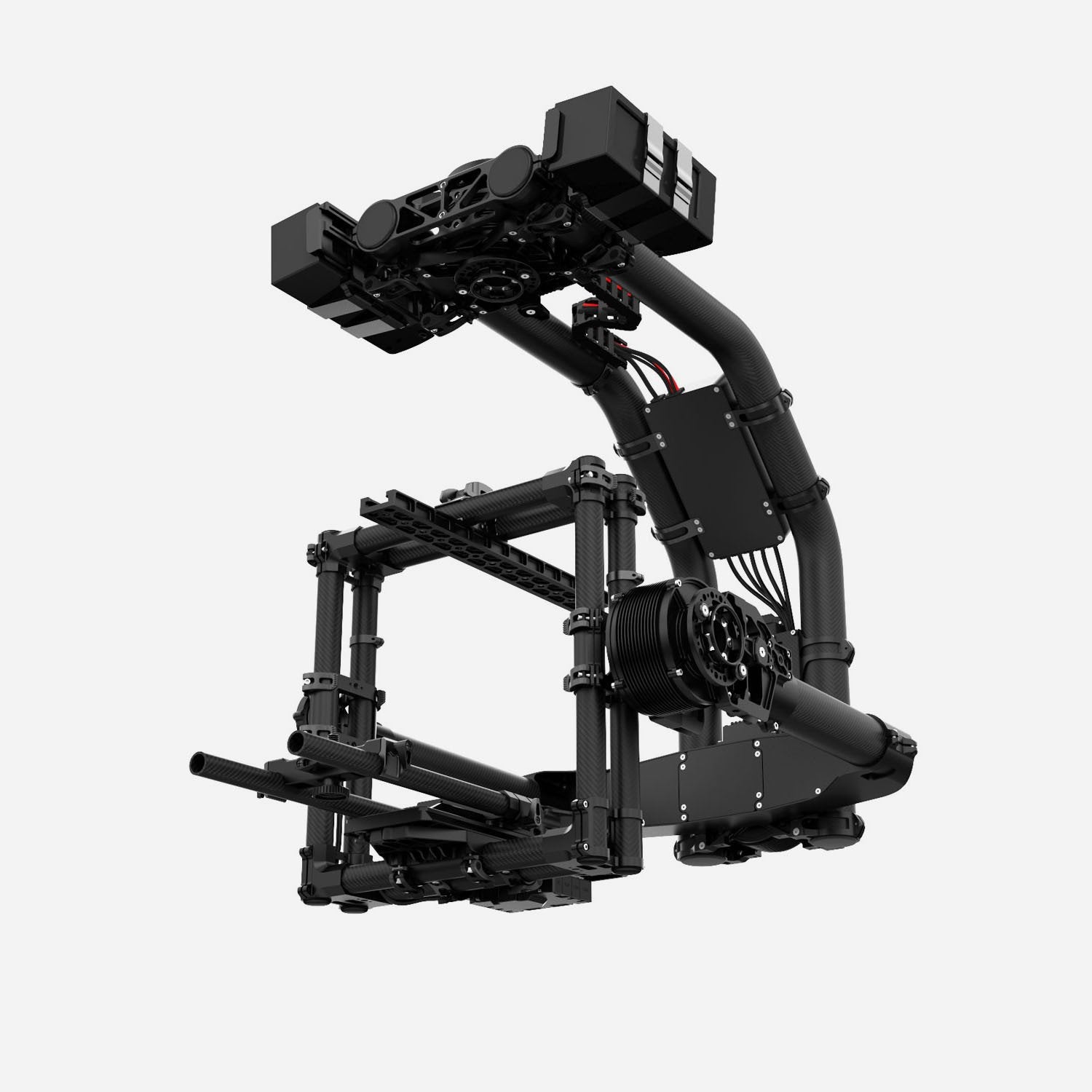

Mōvi hit the gym! We took everything great about the Mōvi Pro and added some serious horsepower for the world's biggest cameras. Mōvi XL is a lightweight, portable system that allows users to capture stable imagery in the most demanding environments.
Features
- Custom in house designed high torque direct drive motors
- Axis locks for easy ground handling / balancing
- Custom motor drives with high resolution encoders
- Capable of performing at extreme speeds (75+mph)
- Accessory power
- Integrate Focus / Iris / Zoom motor drivers
- Integrated control of Red cameras via RCP
- 3+ hour runtime powering gimbal and camera with onboard batteries (sold separately)
- Completely wireless operation (power, video, control) allows for 1 minute changes from camera car to crane to cable cam
- Underslung or overslung mounting
- Compatible with Freefly Control Ecosystem - Mōvi Controller (with or without optional Wired Control Kit), MIMIC, Pilot, and Wheels
- 50lb max payload
- Capable of traveling as excess baggage on airlines
- Optional Quick Release system (Our dovetail Quick Release and/or Mitchell)

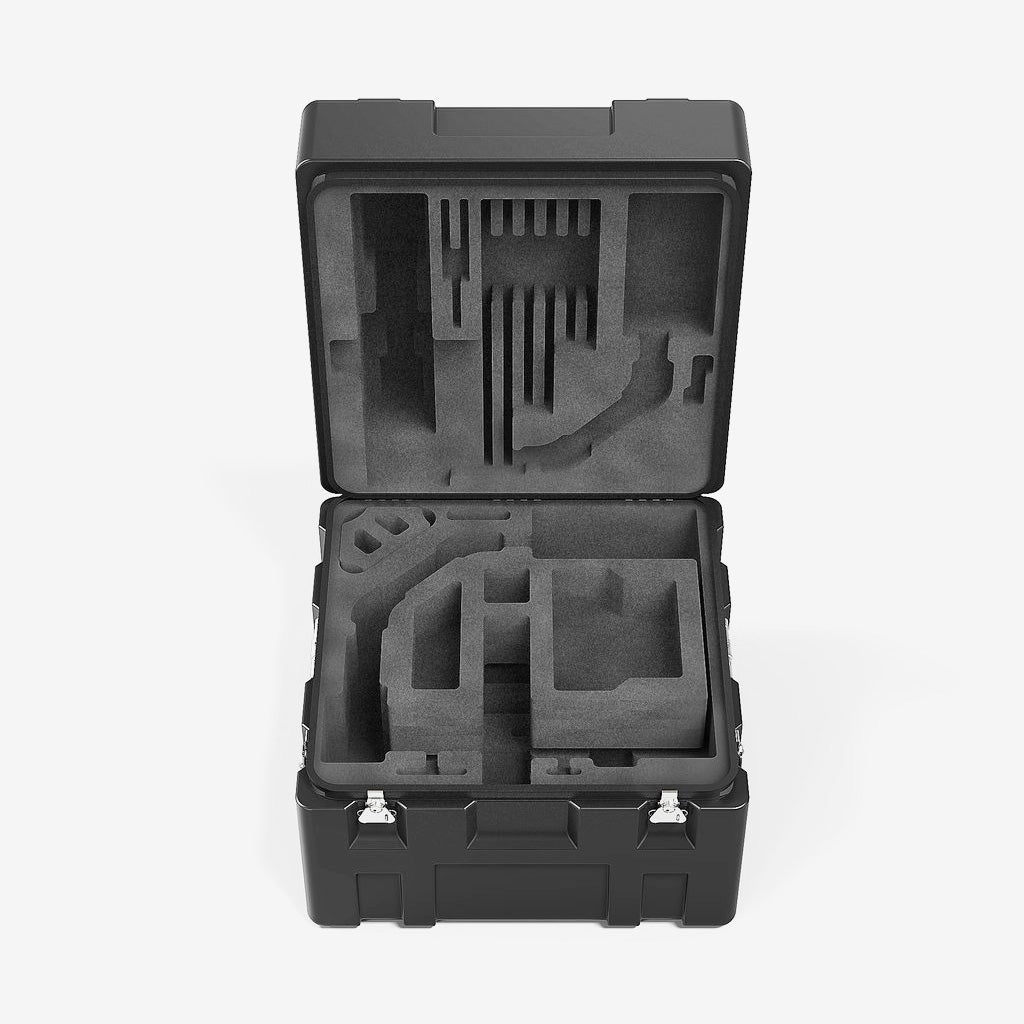

- Travel case with custom cut foam insert (included in this bundle)
- Modular construction
- Internal Wiring
- 2 second boot time
- 10 second full system autotune (no more manual tuning!)
- Integrated screen and menu system
- iOS and Android App for control, configuration, and feedback
Specifications
- Weight (w/o batteries): 25.26lb
- Camera cage dimensions: 399 x 255 x 289mm (L*W*H)
- Maximum payload: 50lb (22.67Kg)
In the box
- Mōvi XL Gimbal
- Mōvi XL Travel Case
- XL Top Rail
- Mōvi XL Accessory Bag
- Fuse Mini 297 32V 30A (qty=3)
- Fuse Mini 297 32V 20A (qty=2)
- Fuse Mini 297 32V 10A (qty=1)
- T-Handle Hex Key - 4 mm (qty=1)
- Bolt M4 x 10 SHCS (qty=8)
- Bolt ¼-20 x ½ (qty=4)
- 1/4-20 x 0.5 SHCS (qty= 8)
- Aux UART to FRX (qty=1)
- Harness Hub to TSU Power (qty=1)
- 2.0MM Assy - Custom Hex Driver (qty=1)
- 2.5MM Assy - Custom Hex Driver (qty=1)
- 3.0MM Assy - Custom Hex Driver (qty=1)
MōVI XL: Out of case to shooting in 15 minutes
