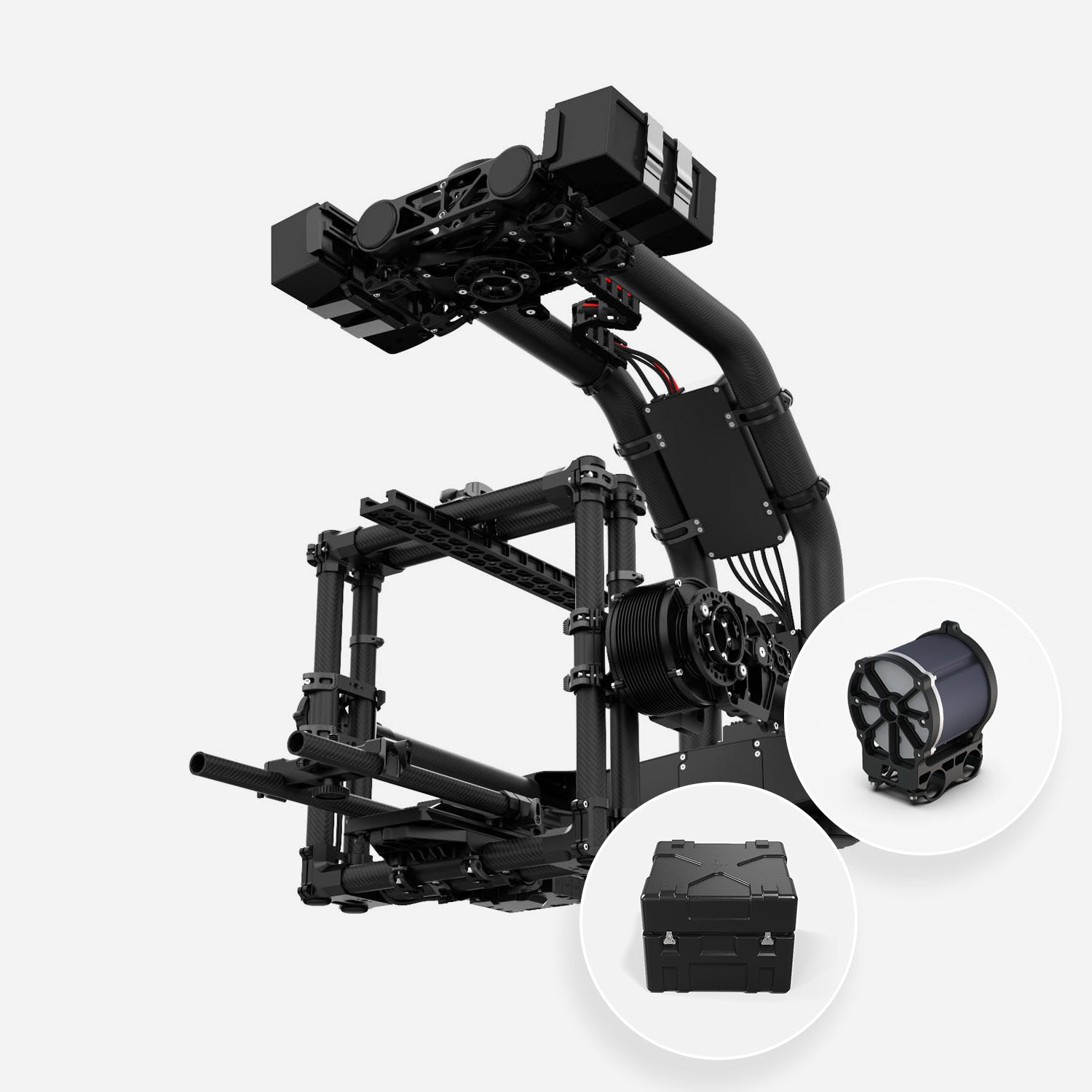

Mōvi XL Optical Gyro Edition with Case
The Mōvi XL Optical Gyro Edition with Case includes the Mōvi XL, Travel Case and the Mōvi XL Optical Gyro upgrade. It's designed to get professional filmmakers up and shooting with the Mōvi XL.
Product Details

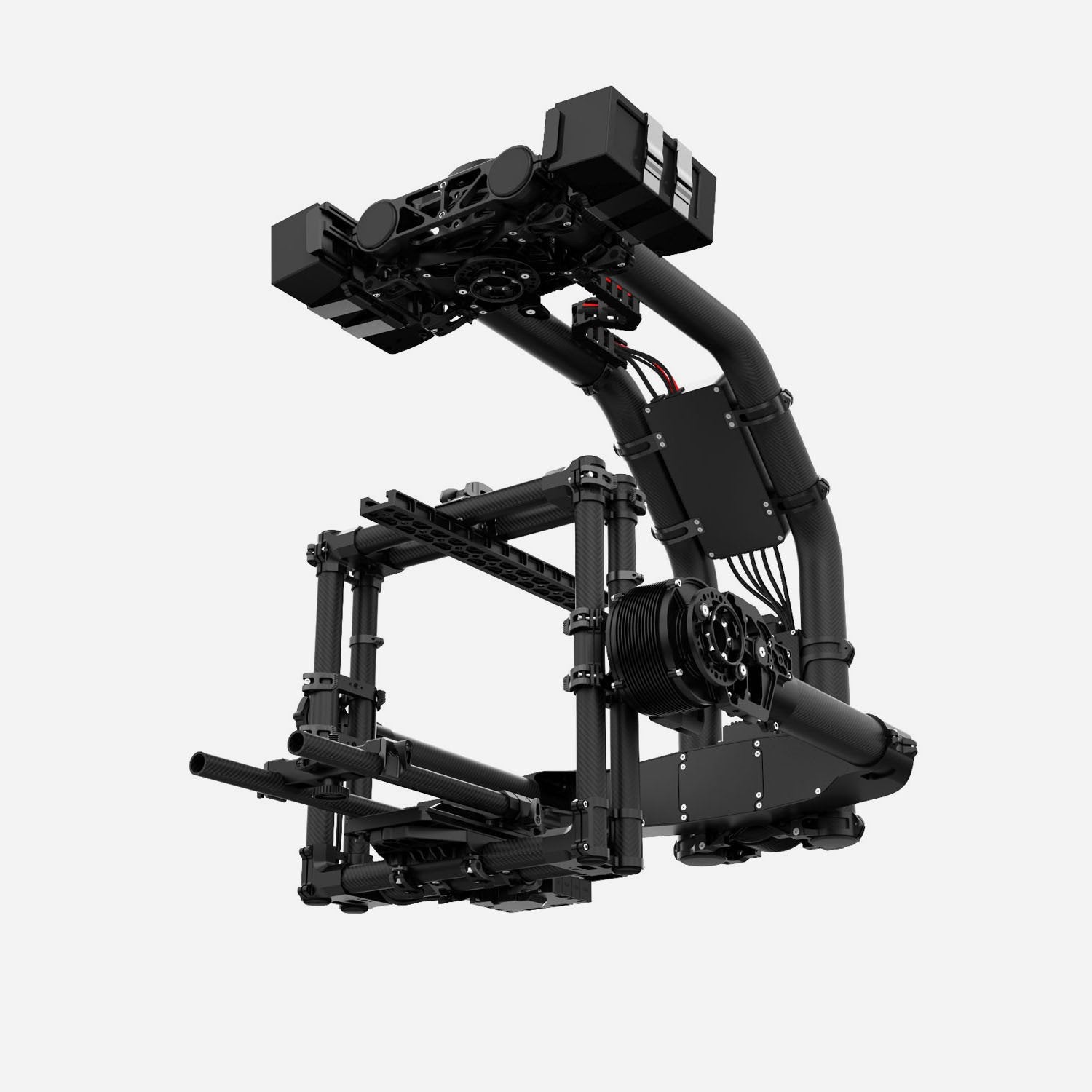

Mōvi hit the gym! We took everything great about the Mōvi Pro and added some serious horsepower for the world's biggest cameras. Mōvi XL is a lightweight, portable system that allows users to capture stable imagery in the most demanding environments.
This lightweight, portable system allows users to capture great shots in the most demanding environments. Now, with the new Fiber Optic Gyro upgrade, it can go even further. FOG takes advantage of Mōvi XL’s surplus motor power, structural stiffness, and ability to shoot long lenses, and delivers stable imagery even in harsh conditions.
Features
- Custom in house designed high torque direct drive motors
- Axis locks for easy ground handling / balancing
- Custom motor drives with high resolution encoders
- Capable of performing at extreme speeds (75+mph)
- Accessory power
- Integrate Focus / Iris / Zoom motor drivers
- Integrated control of Red cameras via RCP (with optional RCP Cable)
- 3+ hour runtime powering gimbal and camera with onboard batteries (sold separately)
- Completely wireless operation (power, video, control) allows for 1 minute changes from camera car to crane to cable cam
- Underslung or overslung mounting
- Compatible with Freefly Ecosystem - Mōvi Controller, MIMIC, Pilot
- 50lb max payload
- Capable of traveling as excess baggage on airlines
- Quick Release system (Optional)
- Mōvi XL to Mitchell Adapter (Optional)

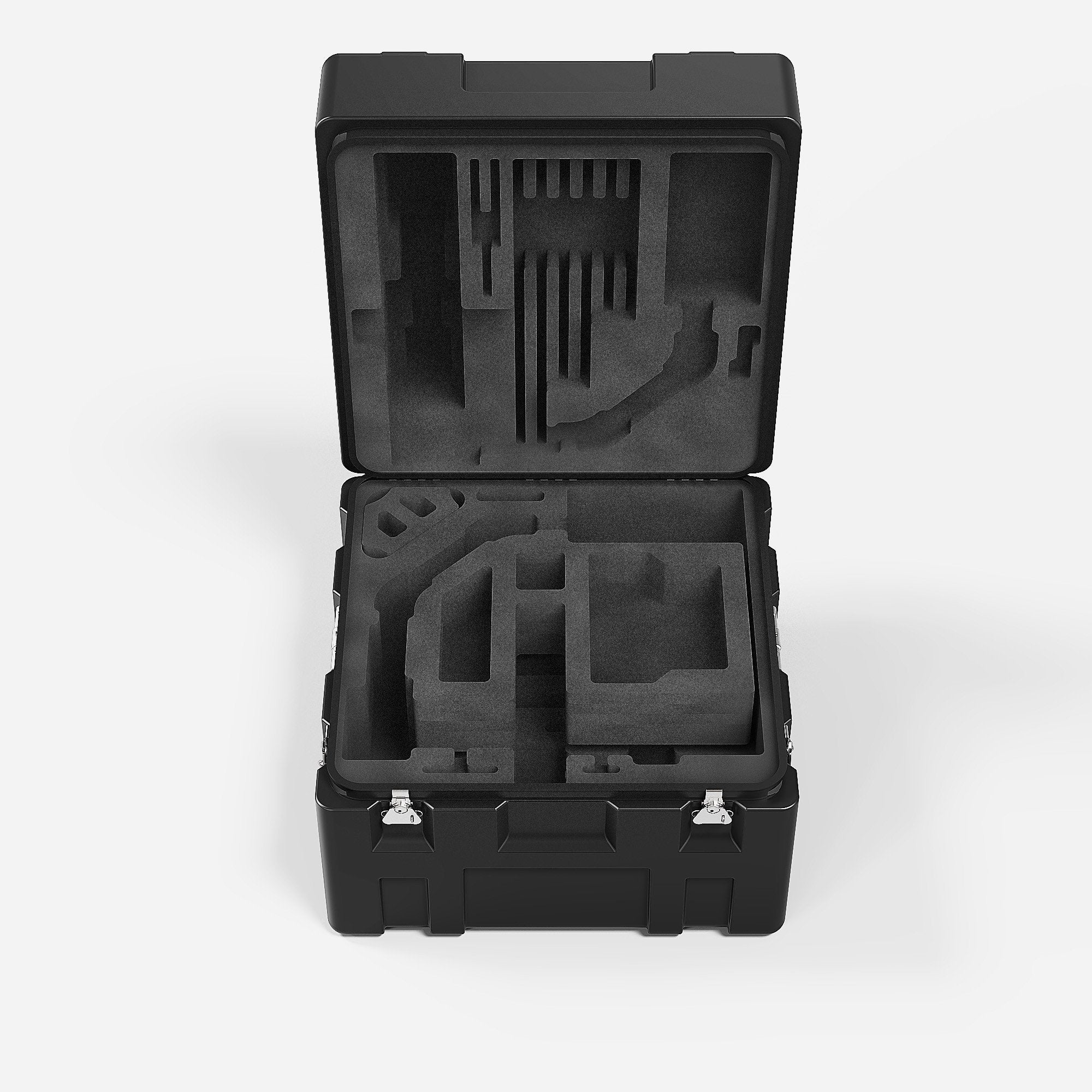

- Travel case with custom cut foam insert
- Fiber Optic Gyro Upgrade for increased stabilization performance
- Modular construction
- Internal Wiring
- 2 second boot time
- Sub-10 second full system autotune (no more manual tuning!)
- Integrated screen and menu system
- iOS and Android App for control, configuration, and system feedback
- Weight (w/o batteries): 25.26lb
- Camera cage dimensions: 399 x 255 x 289mm (L*W*H)
- Maximum payload: 50lb (22.67Kg)

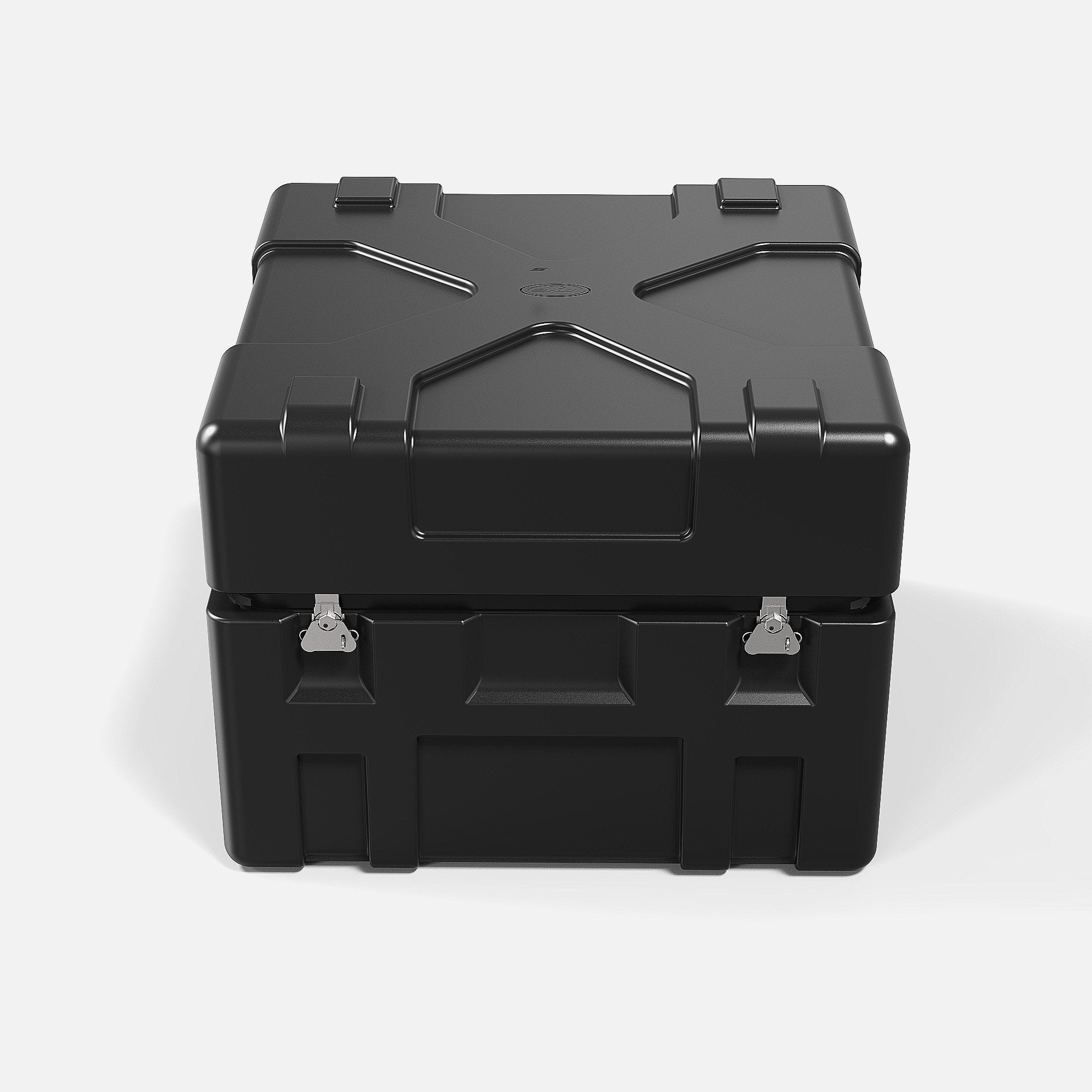

- Qty 1 - Mōvi XL Travel Case
- Qty 1 - Mōvi XL Gimbal
- Qty 1 - XL Top Rail
- Qty 1 - Mōvi XL Accessory Bag
- Qty 3 - Fuse Mini 297 32V 30A
- Qty 2 - Fuse Mini 297 32V 20A
- Qty 1 - Fuse Mini 297 32V 10A
- Qty 1 - T-Handle Hex Key - 4 mm
- Qty 8 - Bolt M4 x 10 SHCS
- Qty 4 - Bolt ¼-20 x ½"
- Qty 8 - 1/4-20 x 0.5 SHCS
- Qty 1 - Aux UART to FRX
- Qty 1 - Harness Hub to TSU Power
- Qty 1 - 2.0MM Assy - Custom Hex Driver
- Qty 1 - 2.5MM Assy - Custom Hex Driver
- Qty 1 - 3.0MM Assy - Custom Hex Driver

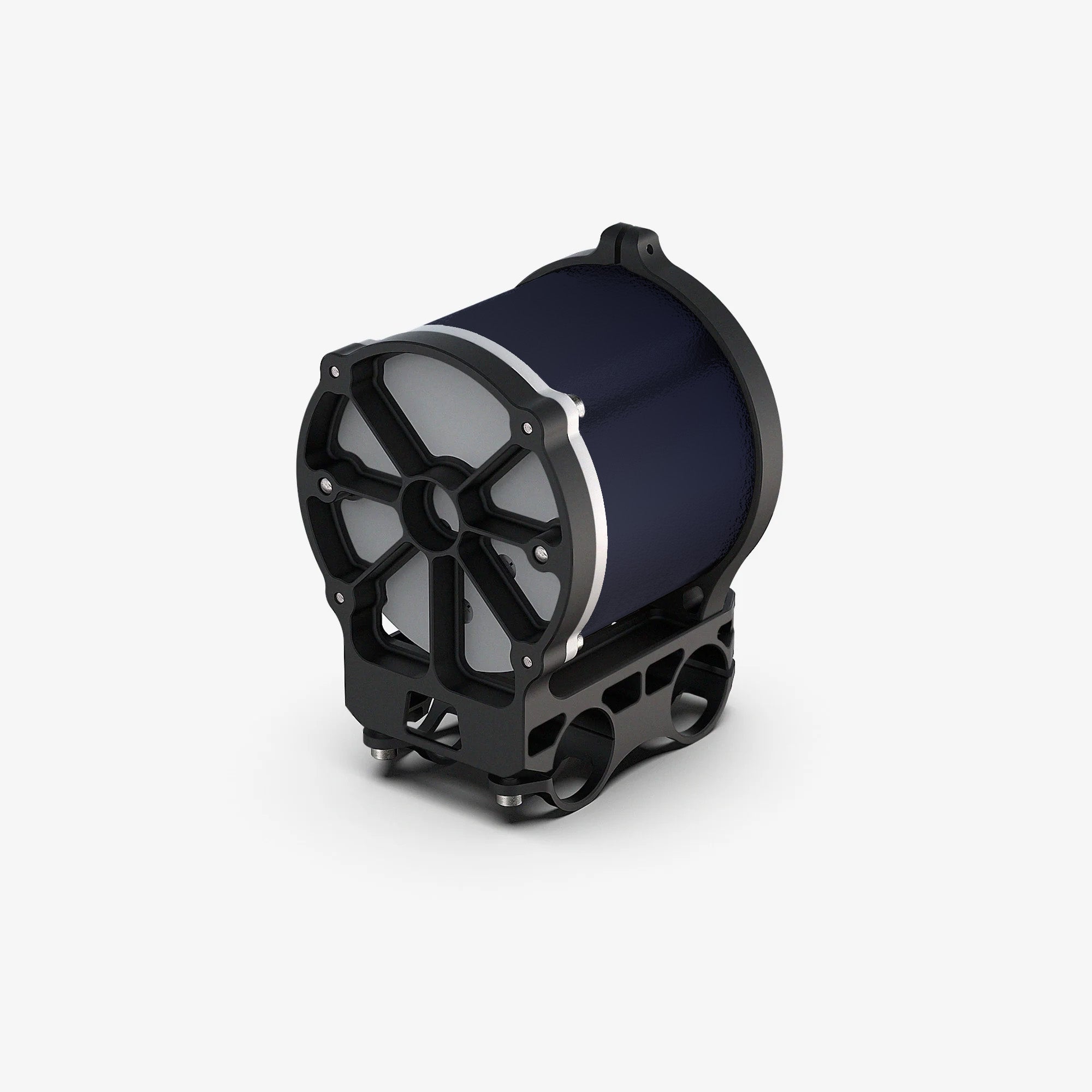

- Qty 1 - F.O.G. (Fiber Optic Gyro)
- Qty 1 - FOG with mounting kit
- Qty 3 - FOG Cable assembly
- Qty 1 - 3.0MM Hex Driver
Not included, but may be pictured in product images for reference:
- Dovetail Plate
- Camera Plate
- Lens Support
- 19mm Rods
- Batteries
- Out of the case to shooting with Mōvi XL in 15 minutes
- Mōvi XL Knowledge Base (FAQ, Manual, App, Service Bulletins)
- Software Release Notes
