Freefly Smart Dovetail - Payload Adapter
Product Details

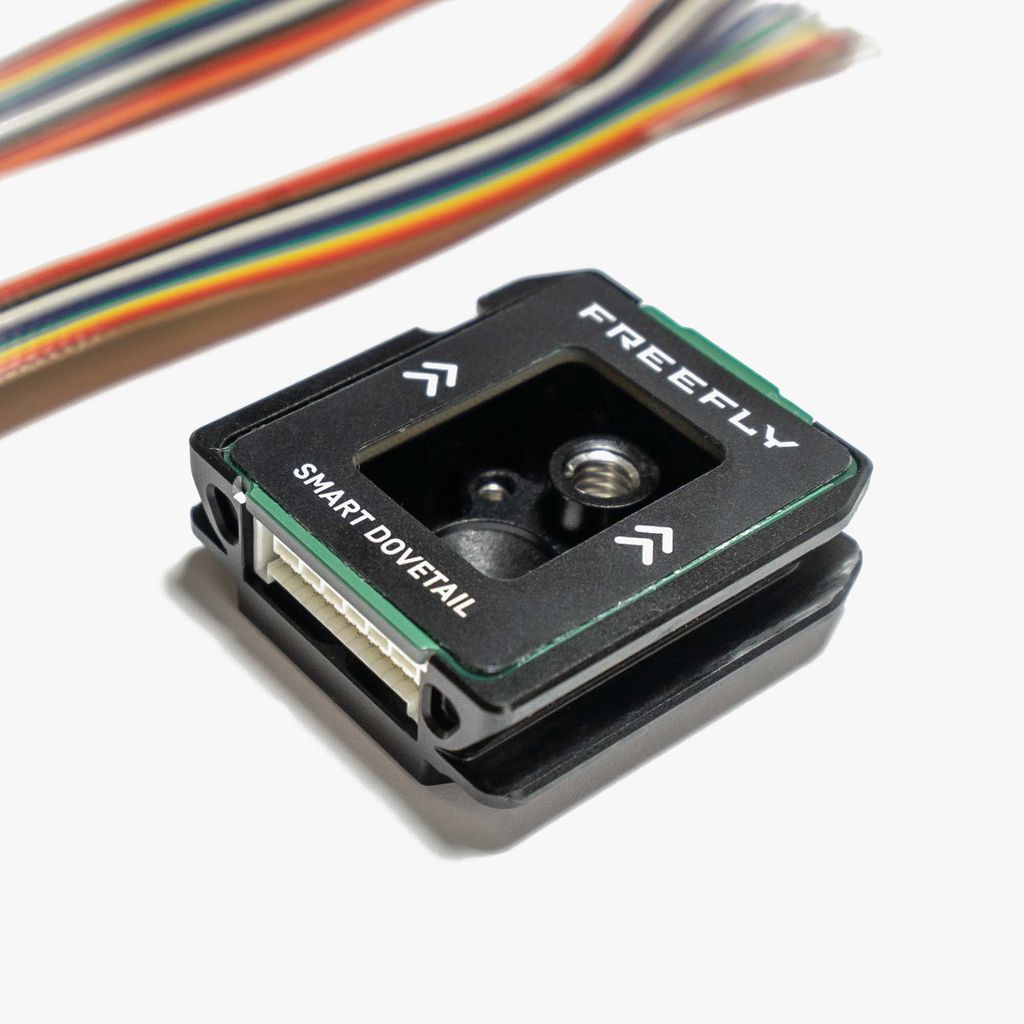

This is a payload quick-release dovetail for mechanical and electrical integration to Astro and other vehicles with the Pixhawk Payload Bus standard.
The dovetail payload adapter mounts to your payload and interfaces with a dovetail receiver on the aircraft. This dovetail is compatible with the receiver side of the quick-release in the following known configurations:
- Astro ships with the aircraft side (receiver) of the Smart Dovetail already installed, but it is also available for sale as an accessory.
Smart Dovetail is not hot-swap compatible. To avoid damaging Astro or your sensor/payload, please power off the aircraft before attaching or removing a Smart Dovetail payload.
- Pinout matches the Astro Payload Connector and Pixhawk Payload Bus standard
- Compatible with Astro using the Smart Dovetail Kit or Vibration Isolator with Smart Dovetail
- Not compatible with Alta X
- Designed and Assembled in USA

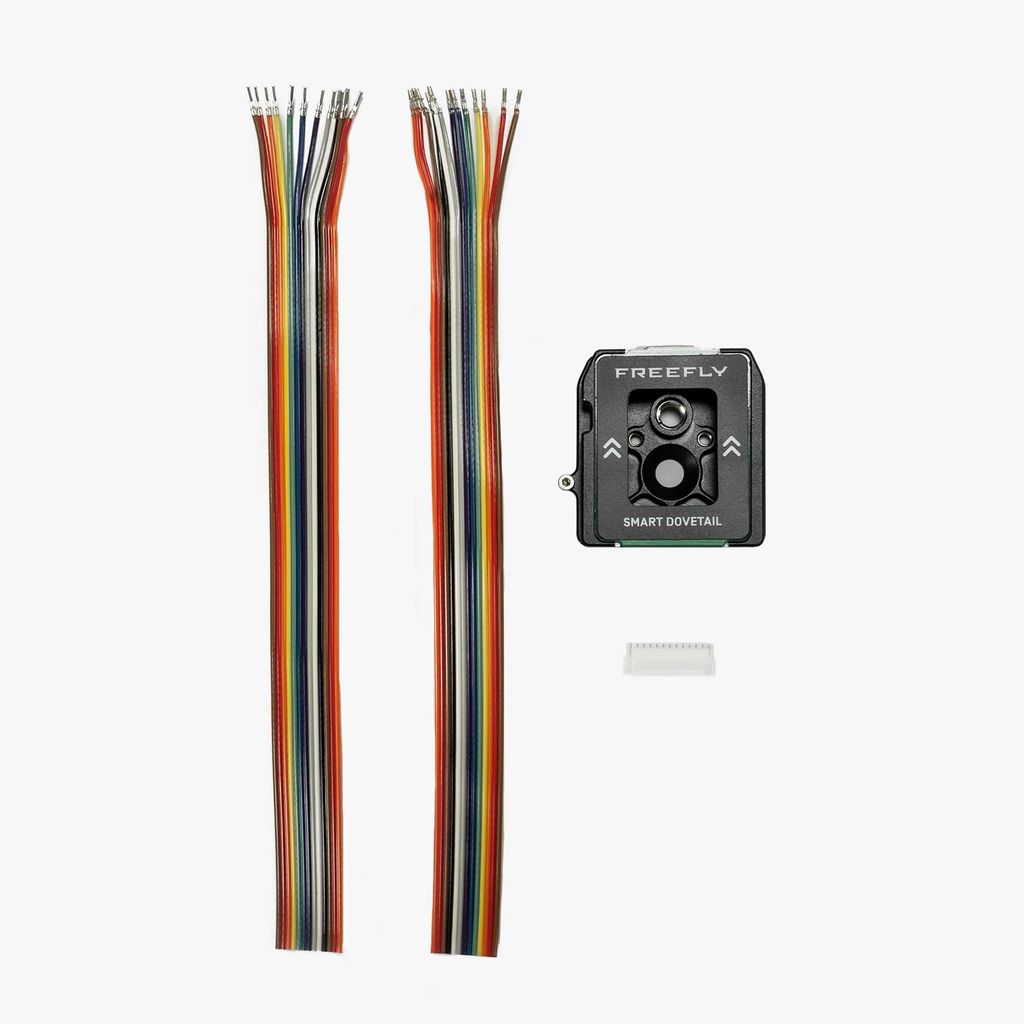

- Qty 1 - Smart Dovetail Payload Interface [Payload side]
- Qty 1 - Payload Connector [ZPDR-26V-S]
- Qty 2 - Payload Ribbon Cable [13 conductor, 28 AWG]
- Astro Map (using the integrated Smart Dovetail)
- Smart Dovetail Kit
- Vibration Isolator with Smart Dovetail
