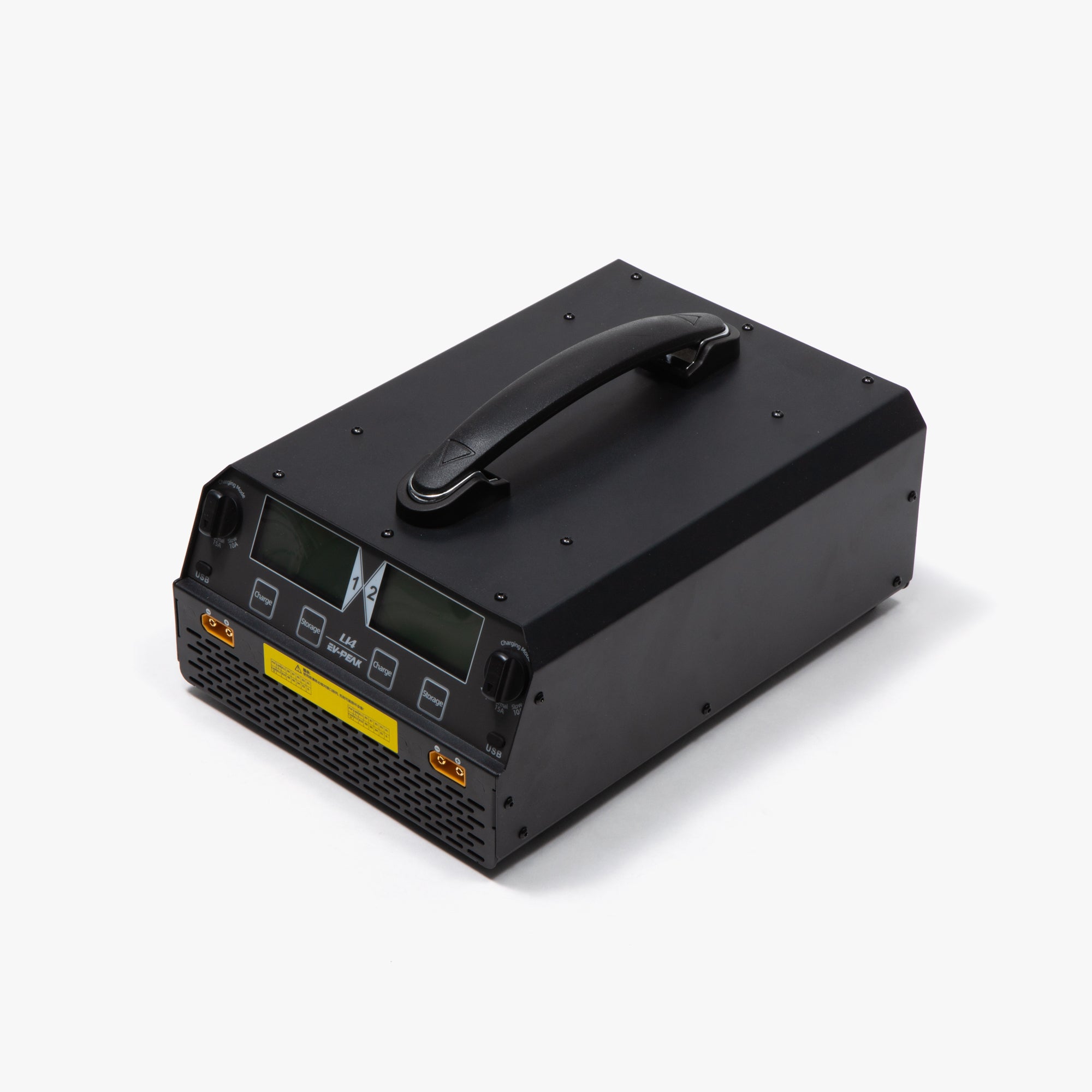

EV Peak U4-Pro Enterprise Drone Charger
Product Details
Each Alta X flight requires two 12S batteries, so you'll need a charger like this that can charge two at a time.
This battery charger is a dual output balancing charger with an integrated power supply. It can charge two Alta X Flight Packs at once at a max rate of 1200W per channel, in less than two hours (for fully depleted batteries).
We include all necessary cabling and accessories to allow users to charge two Alta X Flight Packs at once.
Features
- Dual Charging
- Integrated power supply
- Cell balancing
- Storage charge/discharge mode
- Protection against: Overcurrent, under-voltage, short circuit, and reverse polarity
- Adjustable charge rate (across voltage inputs)
- Automatic voltage switching (110V-240V)
- 110V-240V~11A 50/60Hz
- Charge power max - 800Wx2
- Discharge power max - 60Wx2
- Discharge current - 1,000mAx2
- Charge current range per channel (10A, 15A, 20A)
- Balance accuracy - <20mV
- LiPo battery cell count - 12S
- Upgrade connectivity - USB Micro
- Size - 12.25 x 9 x 5.75" (312x228x145mm)
- Weight - 6.75lbs (3.05kg)

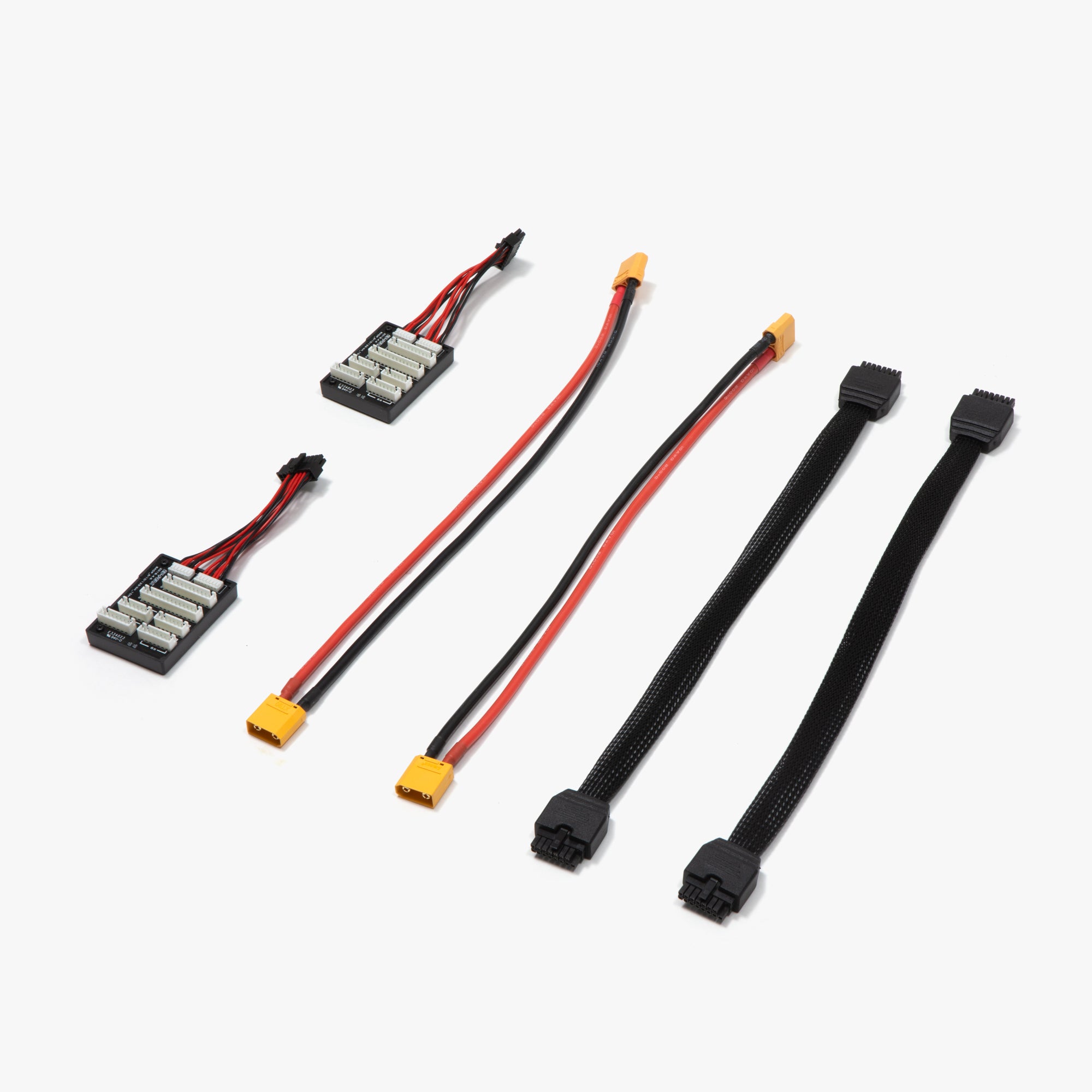

- Qty 1 - Dual Channel 12S LiPo Charger
- Qty 2 - XT90 Charging Leads
- Qty 2 - Balance Leads for 12S Alta X Batteries
- Qty 2 - Balance connectors for 6S/10S/12S LiPo batteries (not 14S)
- Qty 1 - Power cable (110V US style plug)
- Charger Manual (Alta X Support Page)
