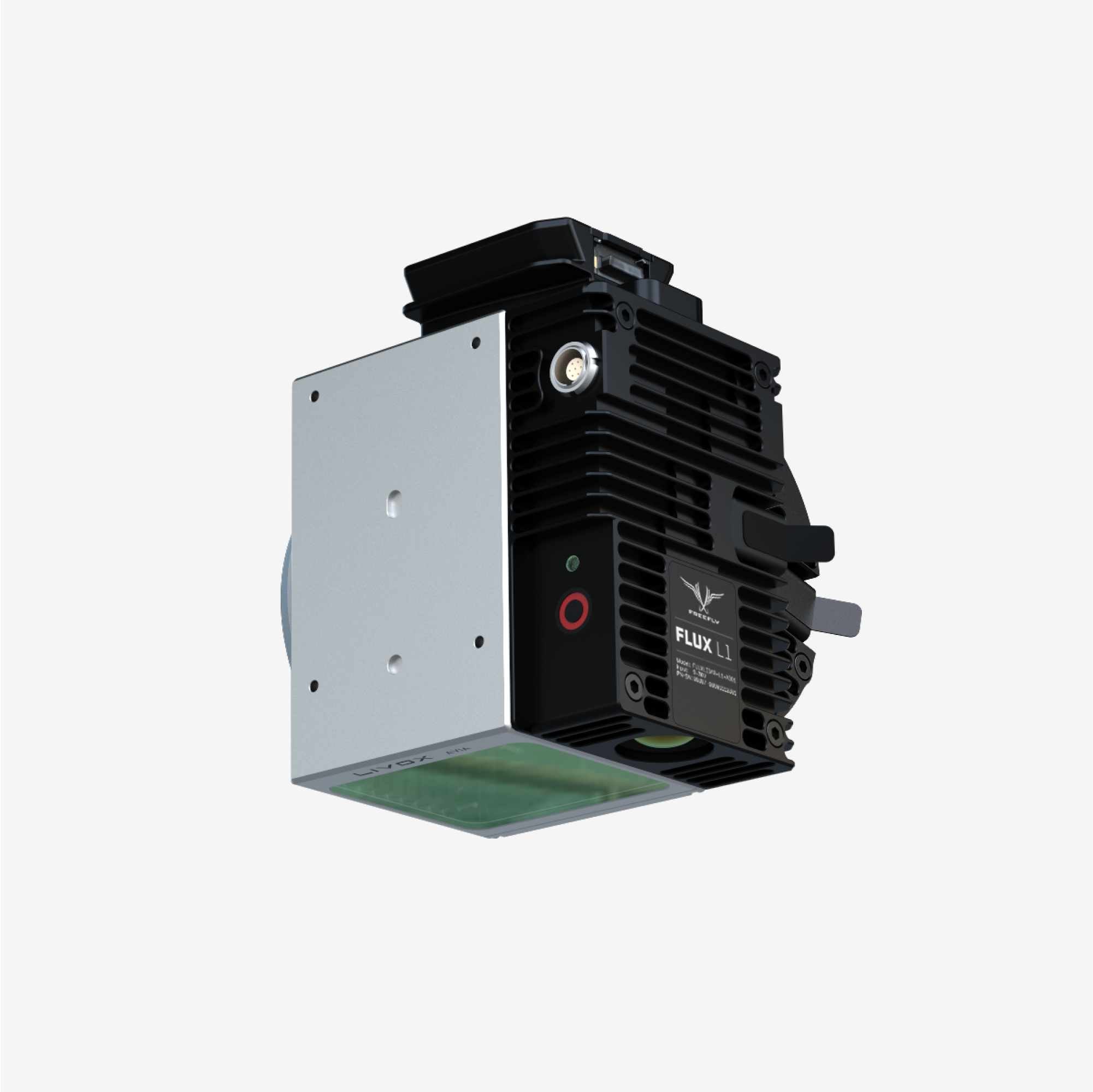

Flux L1
Product Details
The Flux L1 makes professional LiDAR mapping more accessible without compromising on capability.
Powered by the Livox Avia scanner, the L1 offers long-range coverage and non-repetitive scanning patterns ideal for power line inspection, forestry, and hard-to-map assets.
Affordable, reliable, and lightweight, it’s the entry point to high-value 3D capture.
Features
- No software subscription/maintenance cost
- ±5 cm accuracy, 2 cm precision
- Extended 450 m range with 70° × 77° field of view
- Non-repetitive scanning for complete coverage of complex structures
- Compact 715g payload optimized for long flights
- GNSS Post-Processing (PPK)*
- Export to LAS or LAZ**
*Operation of Flux L1 requires the use of a full band GNSS base station (L1, L2, L5, and L6) or equivalent NTRIP. Click here for more information.

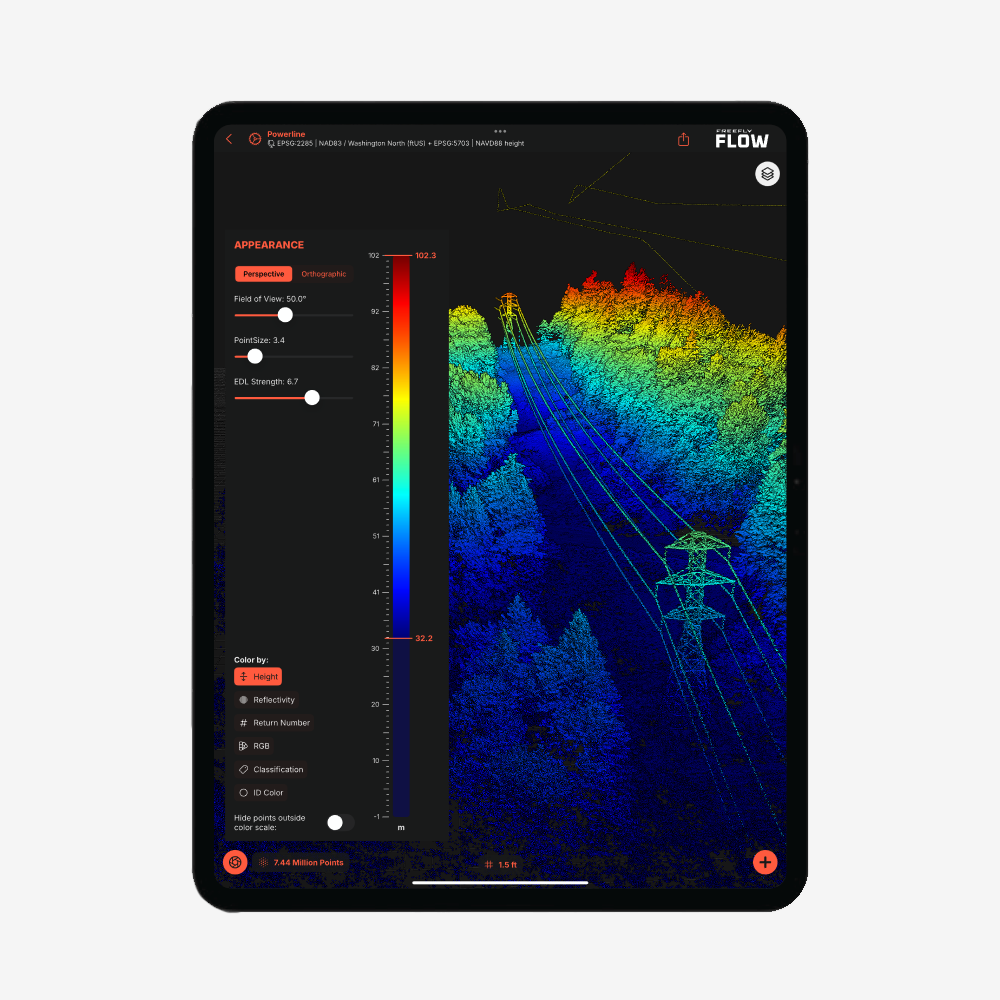

**Post-processing requires a modern iPad with the Freefly Flow app (free app). See the in the box section tab for recommended iPad specs.
- Scanner - Livox Avia
- RGB Camera - Ximea 20MP
- Software subscription - None
- Accuracy - ± 5 cm / 2"
- Precision - 2 cm / 0.8"
- Range - 450 m / 1,476'
- Field of View (FOV) - 70° x 77°
- Laser Returns - 3
- Points / Sec - 720,000
- GNSS - Dual quick-release, full-band receivers
- L1/L2/L5/L6*
- Dual U-blox X20
- Storage - USB-C Drive (64 GB included)
- Mounting interface - Integrated Smart Dovetail
- Weight - 715g / 25.2 oz
- NDAA - No
*Operation requires the use of a full band GNSS base station (L1, L2, L5, and L6) or equivalent NTRIP. Click here for more information.
Flux L1 - 950-00180
- Qty 1 - Travel Case
- Qty 1 - Flux L1 Lidar Scanner
- Qty 2 - High-performance GPS antenna
- Qty 2 - Quick release GNSS mounts for Astro (Alta X Gen2 mount sold separately)
- Qty 1 - USB C - Ethernet adapter (for iPad)
- Qty 1 - USB-C Drive (64GB)
Not included, but required for operation
- M-Series iPad (Apple Silicon) for output processing. The newer it is, the faster the processing. M3 iPad in our testing is processing ~4x real time (8 minute flight takes ~2 minute to process).
- GNSS Mount for Alta X Gen2, sold separately.
- GNSS Base Station (ALL: L1, L2, L5, and L6) or equivalent NTRIP. Dual band GNSS (L1, L2) will not work. Click here for more information.

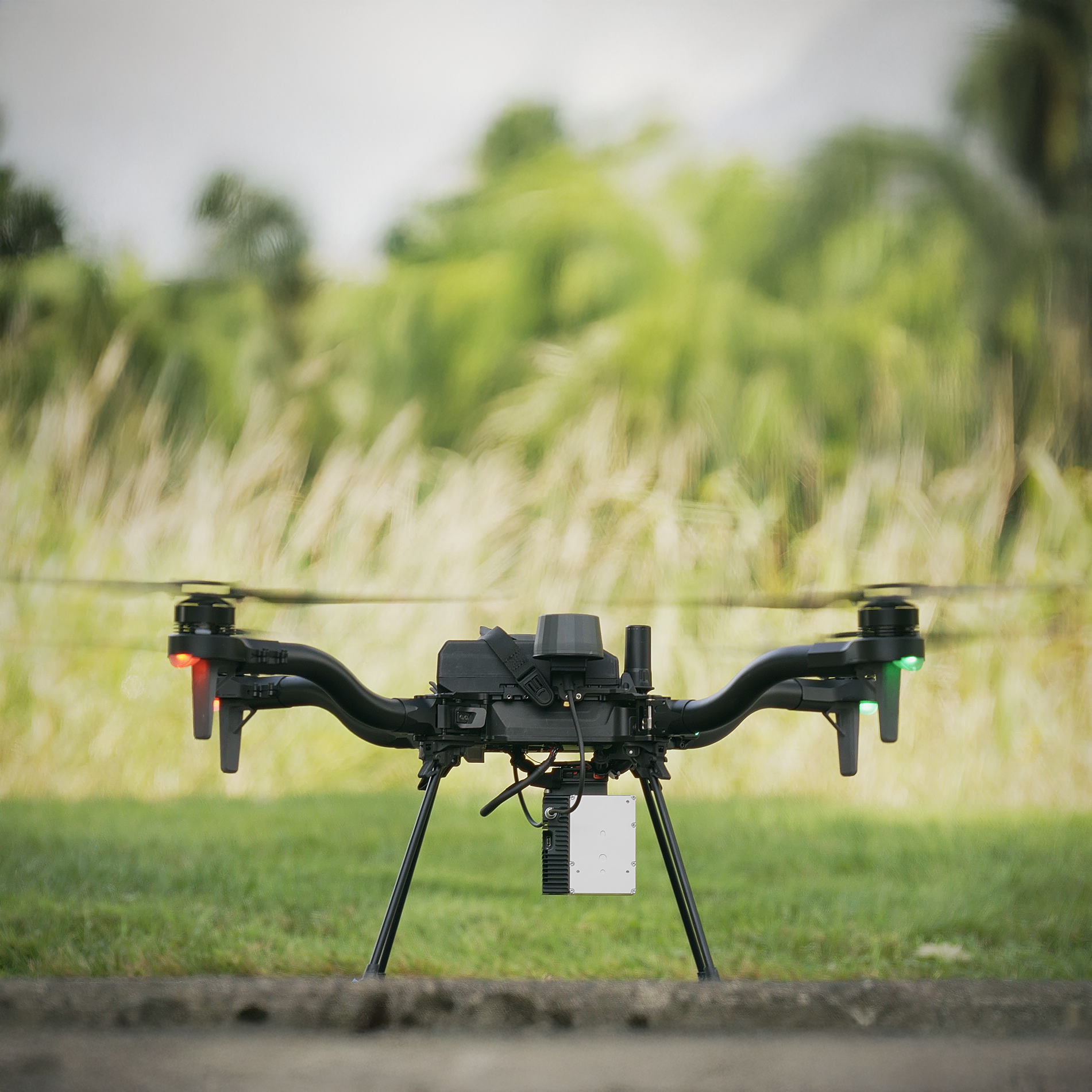

- Freefly Drones with Smart Dovetail
- Astro
- Astro Max
- Alta X Gen2 (with GNSS Mount, sold separately)
- NDAA - No
DIU Blue - No
