Emesent Hovermap ST-X (Astro Max Mapping Bundle)
Emesent Hovermap ST-X (Astro Max Mapping Bundle)
Product Details
Hovermap ST-X for Astro is here! Read the press release.
Hovermap incorporates the latest in LiDAR sensing technology to offer high density point clouds with exceptional coverage. Featuring a sensing range of up to 300 meters and more than a million points per second, Hovermap captures detailed, accurate data over a wide area fast – accelerating your time to insight.
Emesent offers a choice of Hovermap business plans designed to match and support your specific LiDAR mapping and data visualization requirements. This package comes with 1-year of the Business Mapping Plan.
It also includes the activation fee and mounting hardware for Astro Max.
- LiDAR range: 0.50 to 300 m (1.6 to 984 ft)
- Mapping Accuracy: ± 15 mm (19/32 in) in general environments ± 10 mm (3/8 in) in typical indoor and underground environments ± 5 mm (7/32 in) isolated change detection capability
- LiDAR Channels: 32
- LiDAR Data acquisition speed: Single Return Mode: up to 640,000 points/sec Multi Return Mode (3 return): up to 1,920,000 points/sec
- Storage: 512 Gigabytes – approximately 4 hours of sensor data
- Weight: 1.57kg / 3.4 lbs
- Weather Resistance: IP65

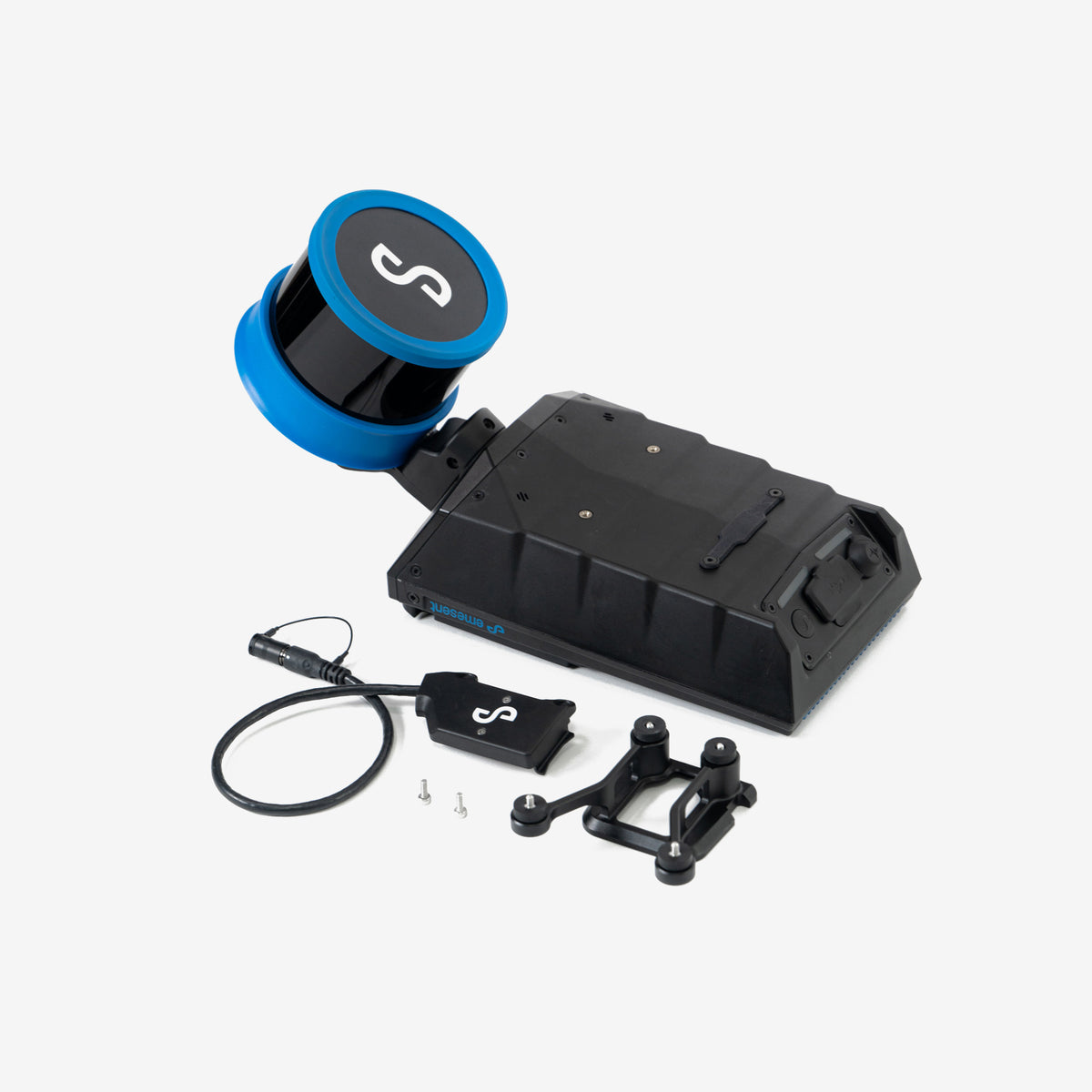

- Qty 1 - Travel Case
- Qty 1 - Hovermap ST-X LiDAR Payload
- Qty 1 - ST-X to Astro Mount Adapter (dovetail quick-release) with fasteners
- Qty 1 - ST-X to Astro Adapter Cable
- Qty 1 - License
- Activation
- Mapping Business Plan - 1 year
- FCC DA 25-1086 - YES
- Emesent Hovermap ST-X ships with FCC approved critical components
- NDAA/DCMA Blue - NO
- Hovermap ST-X Sensor
- Mapping Business Plan (1yr)
- Activation Fee
- Astro Max - ST-X Interface Set
Astro Max
Astro Max with Pilot Pro
3kg max capacity drone with 30min flight time
SL8 Air Battery
Recommended quantity: 6
Used in pairs with Astro Max
You'll need at least two SL8-Air batteries to fly Astro. By default Astro does not ship with batteries.
SL Fast Charger
Recommended quantity: 4
200W charger for Freefly SL8 batteries
Unless you already have SL8-Air Chargers, you'll need these on your order. By default Astro does not ship with SL8 chargers.
Astro Max Spare Propeller Set (2270 High Efficiency)
1 each, cw and ccw high efficency props
FPV System for Astro
First Person View camera and USB memory relocation kit
Freefly Armor
Exclusive protecion plan for your Freefly drone
Freefly Armor
Double your factory Astro warranty, pre-pay for an annual check-up and get 10% off training and service.
Training
Alta Training
Learn the basics and advanced skills on the Astro Max platform.
Training Type
1 Day Training (Freefly HQ ) ($1,200.00)
- 1 Day Training (Freefly HQ ) ($1,200.00)
