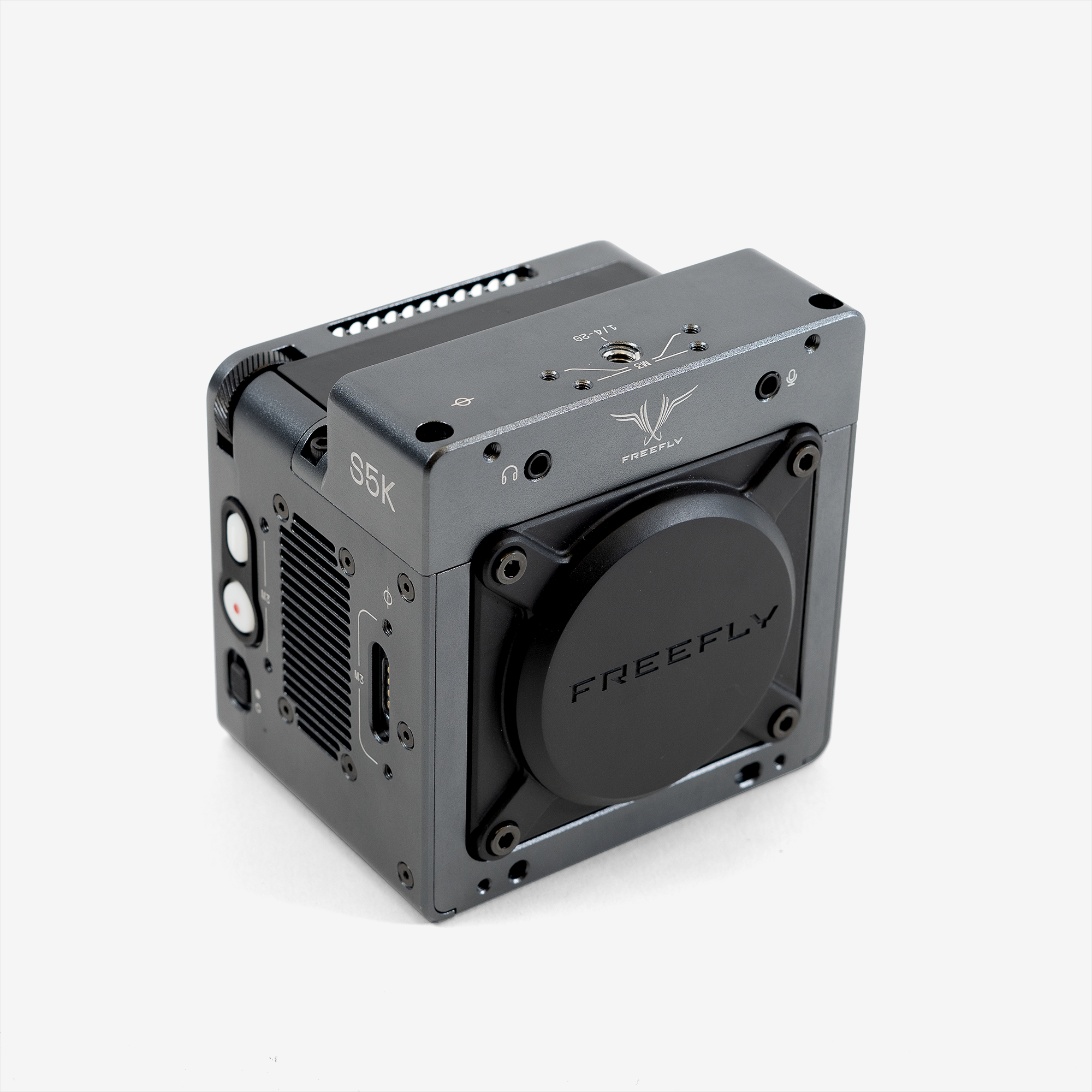

Ember S5K (Active EF Mount, 4TB)
Product Details
We designed Ember to be the most efficient high speed camera ever. It’s small, light, and insanely fun to use. Ember is unique in that it can record continuous high speed footage with no ram based clip limit since it records directly to an internal SSD (either a 4TB or a 2.56TB high-endurance pSLC drive optimized for pre-record).*
Shooting high speed is now just like shooting anything else, push record to start and stop, and Ember captures everything to solid state memory - as simple... as that.
The Ember app for iOS means you can go from capture to sharing in seconds.
- Check out these (untreated) sample clips shot with Ember.
Features
- 5K max resolution at 600fps
- 4K 800fps
- Two lens mount options
- Two SSD options
- Gpixel sensor
- Fast iOS based app workflow
- Apple ProRes Codec
- Global Shutter
- Wireless Control
- USB 3.2 Type C
*Actual formatted data capacity of 4TB drive is 3,980GB, and 2.56TB drive is 2,534GB
- S35 Gpixel Sensor
- 4K and 5K recording mode
- 10bit Apple ProRes Codec
- Active EF compatible lens mount or universal locking lens mount
- 4TB Drive option
- Maximum shooting capacity for Ember
- Actual formatted data capacity - 3,980GB
- Capture time (max)
- 5120 x 2880, 600fps - 36min (1,296,000 frames, 15hrs of playback at 24fps)
- 4096 x 2160, 800fps - 45min (2,160,000 frames, 25hrs of playback at 24fps)
- 2.56TB drive option
- High endurance drive rated for 80 Petabytes or 10,000 hours of continuous recording
- Ideal for heavy use of Ember Pre-Record
- Actual formatted data capacity - 2,534GB
- Capture time (max)
- 5120 x 2880, 600fps - 23min (828,000 frames, 10hrs of playback at 24fps)
- 4096 x 2160, 800fps - 29min (1,392,000 frames, 16hrs of playback at 24fps)
- Weight
- With locking universal lens mount: 820 g / 1.81 lbs
- With Active EF compatible lens mount: 830 g / 1.83 lbs
- Dimensions
- With locking universal mount: 100 mm x 104 mm x 86 mm (WHD), 3.94 x 3.94 x 3.86" (WHD)
- With Active EF compatible lens mount: 100 mm x 104 mm x 110 mm (WHD), 3.94 x 3.94 x 4.33" (WHD)
- Full specs here
All Ember S5K bodies ship with the following accessories:
- Qty 1 - Ember S5K camera body
- Qty 1 - Rear accessory mount stand-offs (pair)
- Qty 1 - USB C-C 3.0 Cable
- Qty 1 - D-Tap-Ember Power Cable
- Qty 8 - M3 x 10mm SHCS fasteners for accessory mounts
We offer two lens mount options and two SSD options:
Ember S5K (Universal Lens Mount, 4TB) - 950-00114
- Qty 1 - Locking passive universal mount (non-electronic, pre-installed)
- Qty 1 - Internal 4TB SSD (pre-installed, user upgradable but not on-set swappable)
Ember S5K (Active EF Lens Mount, 4TB) - 950-00154
- Qty 1 - Active EF compatible lens mount with supporting internal components (pre-installed)
- Qty 1 - Internal 4TB SSD (pre-installed, user upgradable but not on-set swappable)
Ember S5K (Active EF Lens Mount, 2.56TB pSLC) - 950-00152
- Qty 1 -Active EF compatible lens mount with supporting internal components (pre-installed)
- Qty 1 - Internal 2.56TB pSLC SSD (pre-installed, user upgradable but not on-set swappable)
- Ember S5K with EF lens mount
- Lenses with EF mounts, with or without electronic internals
- Lens can be controlled by Ember through camera and app, but will not auto-focus
- Ember S5K with locking universal lens mount*
- Lenses with mechanical focus (no AF)
- Lens with purely electronic focus and iris will not work.
- Simple lens mount adapters for EF, PL, CN-E, FD, etc, but not RF
- KipperTie Lens Mounts
- Lens Mounts from C7 Adapters
- Ember S5K accessories from Freefly
Ember S5K Camera Options
Please select a lens mount and SSD combo to start your Ember S5K kit.
NATO Accessories
These accessories give you expansive options for mounting accessories to your Ember
62mm (910-00714) NATO Rail
Recommended quantity: 1
90mm (910-00716) NATO Rail
Recommended quantity: 1
NATO Rail Clamp
Recommended quantity: 1
Provides two mounting points for our Adjustable Accessory Mounts
NATO Side Handle
Recommended quantity: 1
Adjustable, reversible wood handle with 1/4 20 mount on top
Mounting Devices
Options for mounting monitors and mobile devices.
Adjustable Accessory Mount
Recommended quantity: 2
Tool-less adjustments 1/4 20 accessories, works with NATO Clamp or Ember
Dual Monitor Height Booster
Recommended quantity: 1
Gives you more clearance when using a monitor and plus sized phone on Ember
Moment Multi Threaded Mount for MagSafe®
Recommended quantity: 1
MagSafe® that mounts to the Adjustable Accessory Mount to hold MagSafe® compatible phones on Ember
Phone Clamp Mount
Robust phone mount with 1/4 20 mount points and holes for ARRI anti-rotate pins, fits all size phones
Tablet Clamp Mount
Robust iPad mount with holes for ARRI anti-rotate pins, fits all size iPads
NATO Monitor Phone Combo Bracket
L-Bracket for mounting your phone next to your monitor on our Adjustable Accesory Mount or any 1/4 20 mount
Power
AC Power Adapter (Microfit 4-pin)
Recommended quantity: 1
AC Adapter for extended shoots and offloading
FXLION Nano V-Mount with Ember Cheese Plate
Recommended quantity: 1
Lightweight V-Mount solution for Ember
FXLION Nano One 14.8V 3.4Ah/50Wh
Recommended quantity: 2
V-mount battery - ~50 minutes recording on S5K
FFXLION Nano Two 14.8V 6.8Ah/98Wh
Recommended quantity: 2
V-mount battery - ~90 minutes recording on S5K
Data & Control
USB C to USB C 3.0 Cable (1 m)
Recommended quantity: 1
Spare USB C-C 3.0 cable for data transfer
Mōvi Pro Wave / Ember Remote Control Cable
Recommended quantity: 1
Trigger start/stop record from on Mōvi Pro or use to build a custom trigger cable
PL Lens Mount from KipperTie
Revolva FE/PL
Replaces the native locking E-mount with a PL mount that accepts rear drop-in Revolva filter cartridges
Revolva Cartridge S ND 0, 0.6, 1.2, 2.1
Drop in ND filter for Revolva Lens Mounts
Adapta FE/PL-LW
Lightweight PL lens mount adapter for Ember
