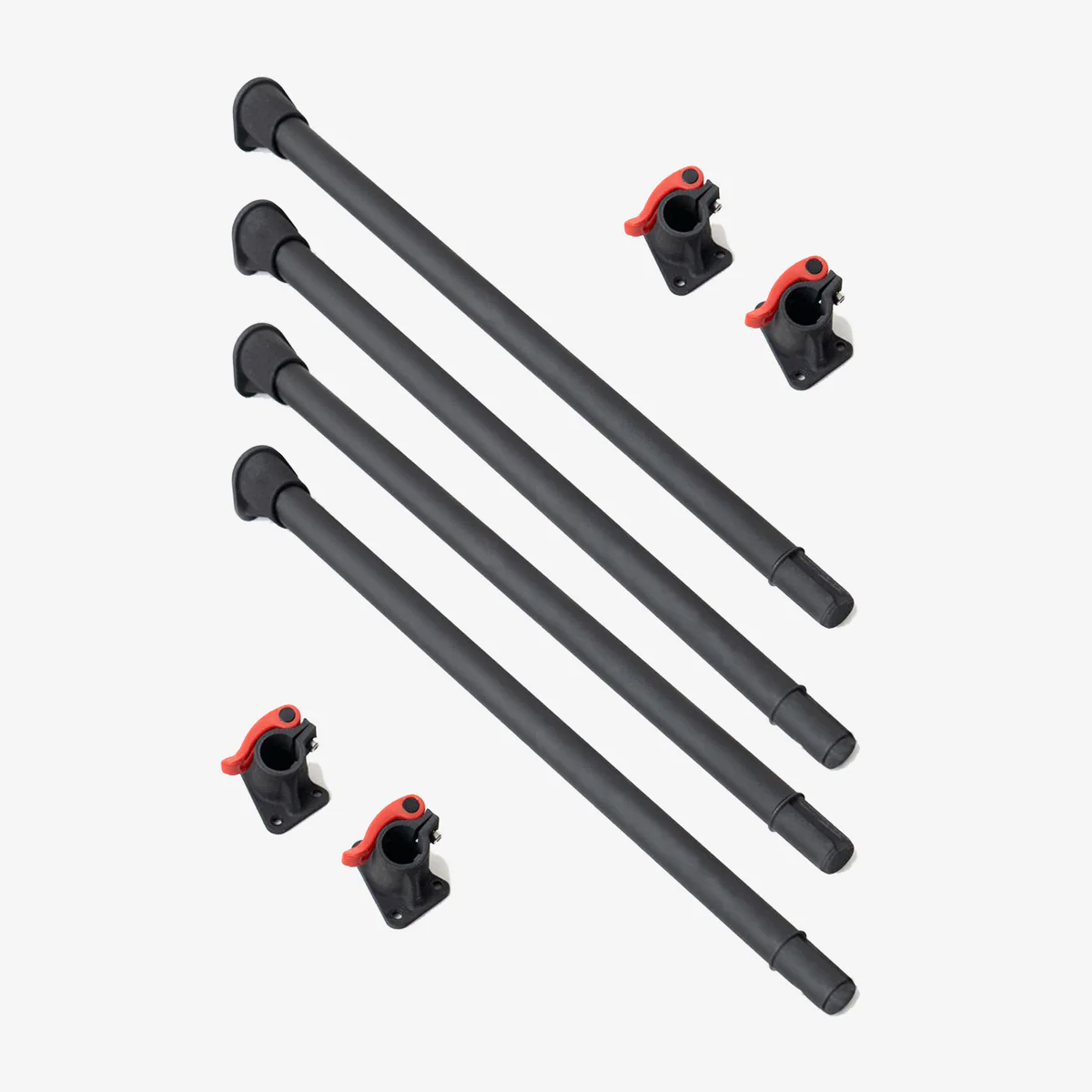

Astro Max Quick Release Landing Gear (4 Legs)
Product Details
The Astro Max Landing Gear offers increased ground clearance and fast field setup for your Astro or Astro Max system. Designed for professional operators who need additional payload clearance, this extended landing gear features 290mm lightweight carbon tubes, providing an extra 54mm / 2.13" of clearance compared to 230mm folding landing gear legs from chassis to ground, and an increased landing footprint.
Quick-release mounts make for rapid installation and removal, minimizing setup time while maintaining a secure connection for demanding operations. A great upgrade for larger payloads or just additional clearance, Astro Max Landing Gear delivers simple, field-proven performance with minimal added weight.
- Each full set of landing gear comes with four 290mm landing gear legs, quick-release chassis mounts, and mounting fasteners to upgrade your existing Astro from it's original folding legs.
- If you just need a spare set of legs for your Astro, check out this option for a pair of legs.
- Adds over 2" of clearance for payloads under Astro vs folding landing gear option with Astro Isolator.
- Provides necessary payload clearance for use with Freefly Payloads and Astro Max Isolator
- Lightweight, rigid 290mm x 15mm carbon fiber tubes with rivets
- Legs are keyed for quick and accurate orientation during flight prep
- Quick-release mount with red primary lock lever for easy visual check
- Passive retention to hold legs in place while primary lever is secured
- Backward compatibly with Astro (Legacy)
- Stows neatly in Astro Compact Case for transport
- Qty 4 - Astro Max Landing Gear Leg
- Qty 4 - Astro Max Landing Gear Mount with lock lever
- Qty 18 - M3x9 SHCS
- Qty 10 - M3x12 SHCS
- Any Astro!
- If your Astro or Astro Max shipped with folding landing gear, you can swap them out for these for additional clearance for payloads.
- If you are flying Astro Max with the Astro Max Isolator, you'll need to extended landing gear like this to fly Freefly Payloads.
- If you've already upgraded to this style of gear and are just looking for a couple of spare legs, check out this page.
