Astro Max Quick Release Landing Gear (Pair)
Product Details

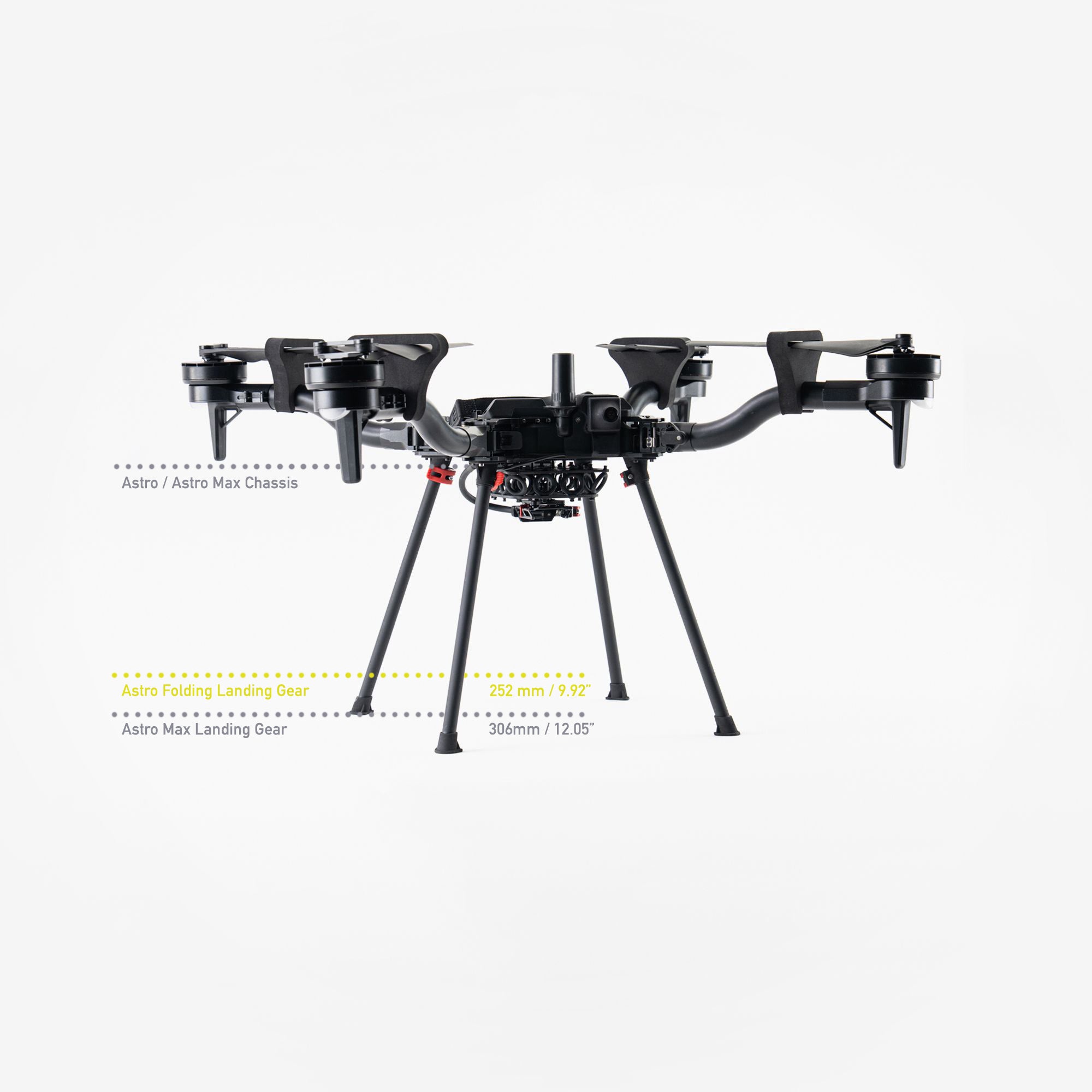

The Astro Max Landing Gear offers increased ground clearance and fast field setup for your Astro or Astro Max system. Designed for professional operators who need additional payload clearance, this extended landing gear features 290mm lightweight carbon tubes, providing an extra 54mm / 2.13" of clearance compared to 230mm folding landing gear legs from chassis to ground, and an increased landing footprint.
Quick-release mounts make for rapid installation and removal, minimizing setup time while maintaining a secure connection for demanding operations. Whether upgrading for larger payloads or replacing existing components, the Astro Max Landing Gear delivers simple, field-proven performance with minimal added weight.

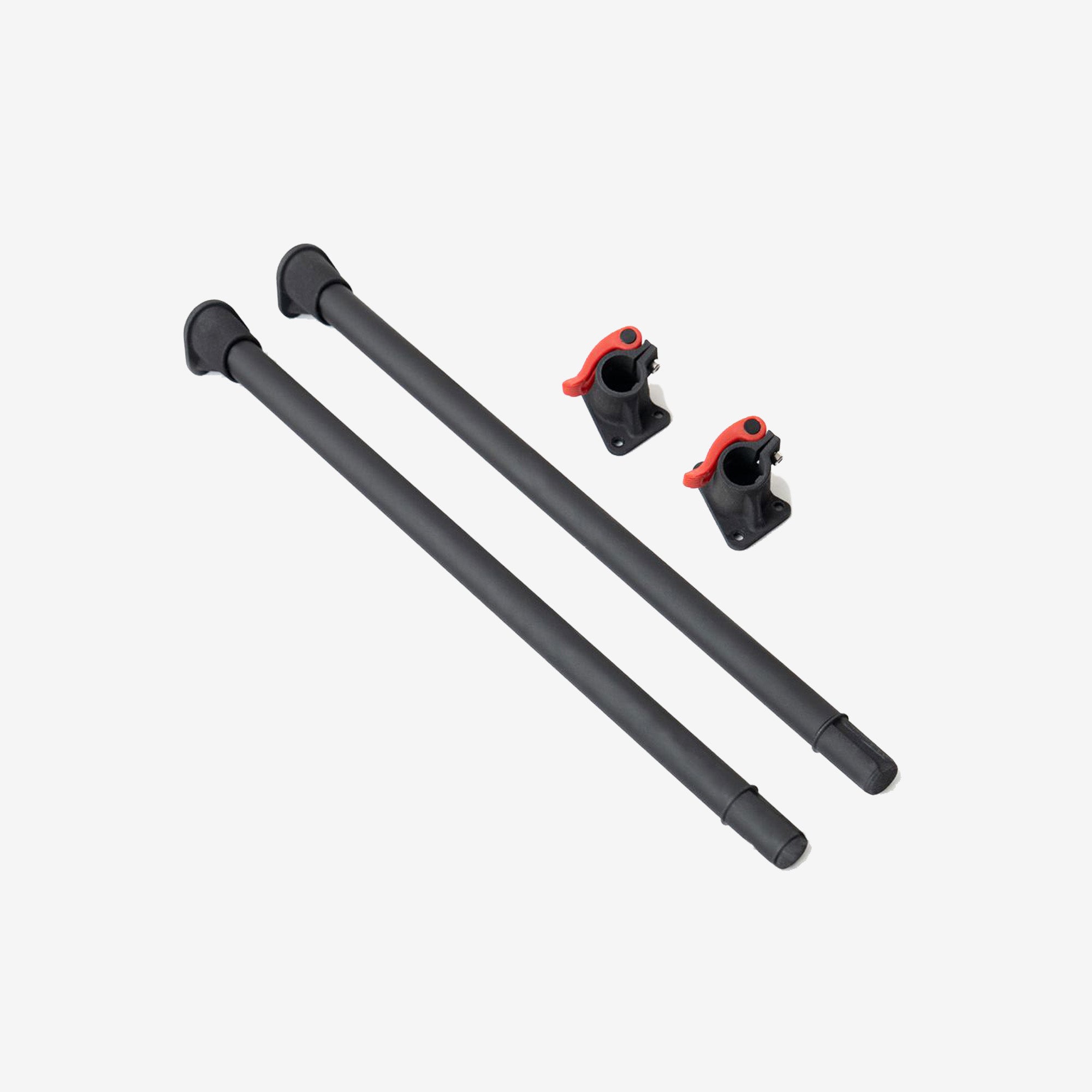

- Each set (pair) of landing gear comes with two 290mm landing gear legs, quick-release chassis mounts, and mounting fasteners.
- Astro and Astro Max use 4 legs, so buy two pairs if you are upgrading, or one pair to add spares to your kit.
- Adds over 2" of clearance for payloads under Astro vs folding landing gear option with Astro Isolator.
- Provides necessary payload clearance for use with Freefly Payloads and Astro Max Isolator
- Lightweight, rigid 290mm x 15mm carbon fiber tubes
- Legs are keyed for quick and accurate orientation during flight prep
- Quick-release mount with red primary lock lever for easy visual check
- Passive retention to hold legs in place while primary lever is secured
- Backward compatibly with Astro (Legacy)
- Stows neatly in Astro Compact Case for transport
- Qty 2 - Astro Max Landing Gear Leg
- Qty 2 - Astro Max Landing Gear Mount with lock lever
- Qty 9 - M3x9 SHCS
- Qty 5 - M3x12 SHCS
- Any Astro!
- If your Astro or Astro Max shipped with folding landing gear, you can substitute these for additional clearance for payloads.
- If you are flying Astro Max with the Astro Max Isolator, you'll need to extended landing gear like this to fly Freefly Payloads.
