Add to Wishlist
$7,500.00 | Sku: 950-00148

Notice:

Orders placed now will ship in 2-3 weeks.

Product Details

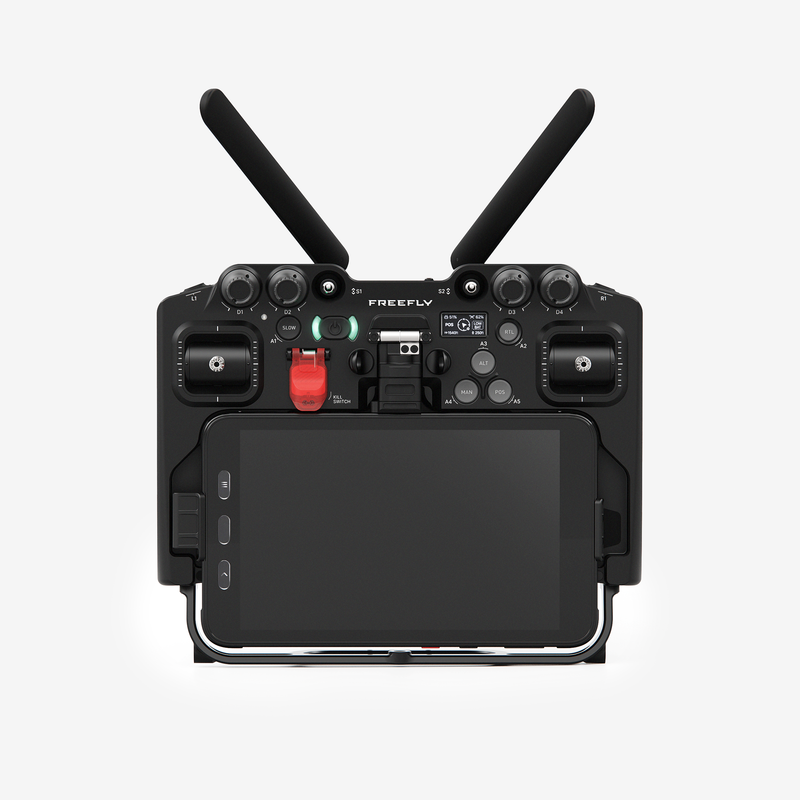

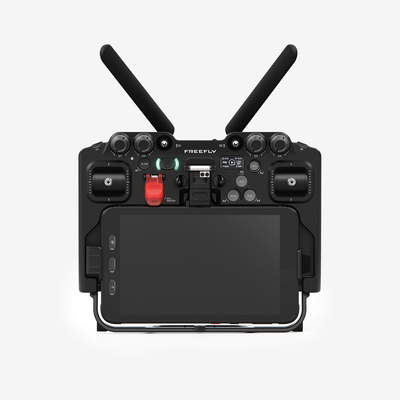

The Pilot Pro drone controller is the perfect companion for your next drone mission.

Combining superior US-made craftsmanship, modular radio transmitter options, and the latest in onboard emergency safety features, you'll be ready to take flight with confidence.

This kit includes both the Pilot Pro Controller and the airside hardware for you to install on your existing Alta X.*

This kit is not intended for use with Astro. If you have an Astro already and want to upgrade to the Pilot Pro, you'll need to ship your Astro back to Freefly for service. For more details and to request this service, click here

*Current software does not support user mapping or use of knobs, rockers or triggers for Alta X.

  • Modular to accept future radio transmitter options
  • Internal battery with external power inputs supporting hot-swapping for maximum uptime
  • Emergency kill-switch
  • Uses custom configured, pre-installed Samsung tablet
  • Custom padded neck strap
  • Will have user-configurable inputs in the future

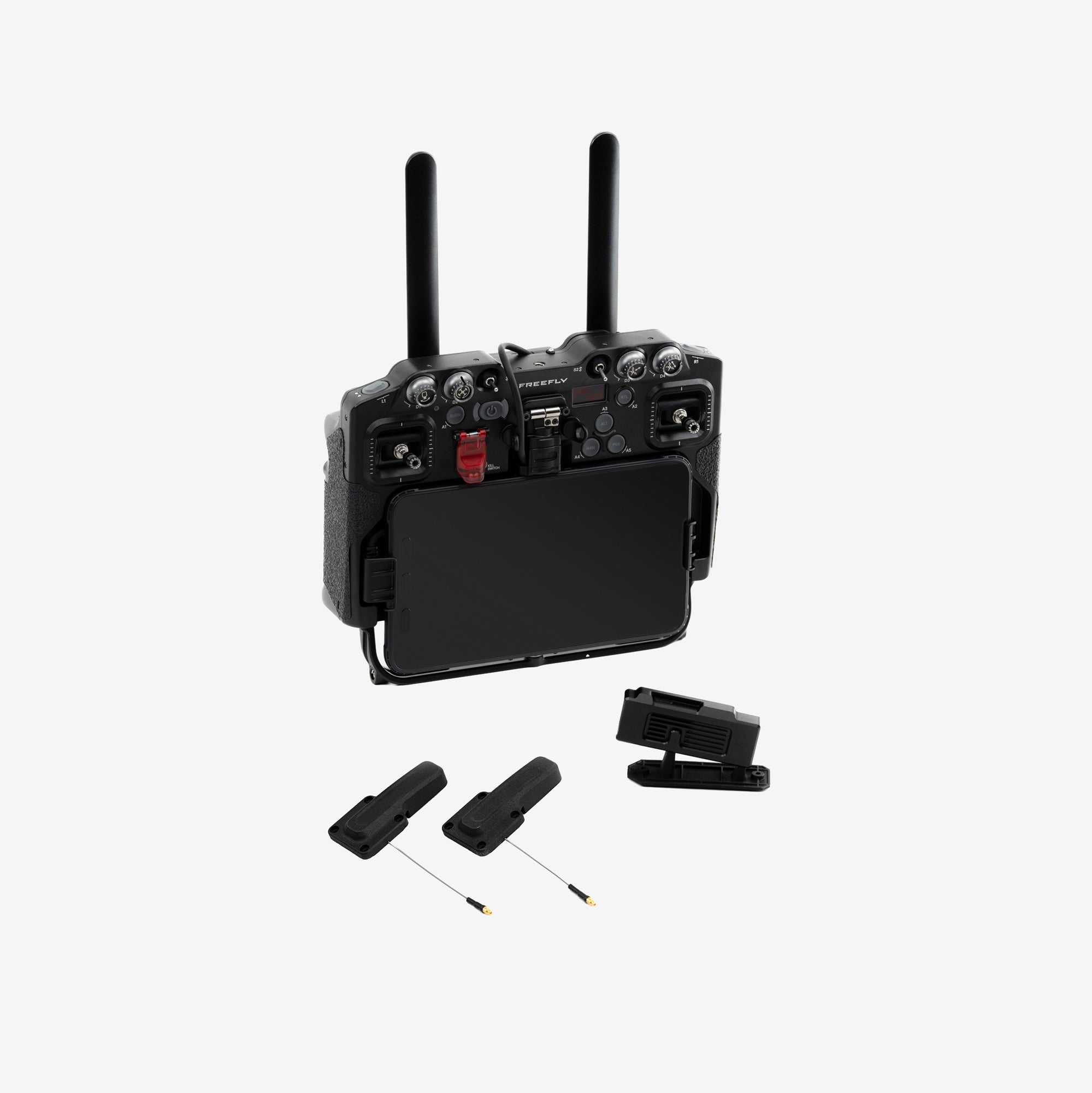

  • Qty 1 - Pilot Pro Kit

    • Qty 1 - Pilot Pro Controller

      • Qty 1 - Custom configured, pre-installed 8" Samsung Galaxy Tab Active3 tablet

      • Qty 1 - Groundside Herelink 1.1 Radio (2.4 GHz)

    • Qty 1 - Travel Case

    • Qty 1 - Custom padded neck strap

    • Qty 1 - 65W USB-C Wall Charger (US Plug, dual voltage for global use)

    • Qty 1 - USB C-C Charging Cable (3' / 1m)

    • Qty 1 - Optional Screen Protector (for Galaxy Tab Active3)

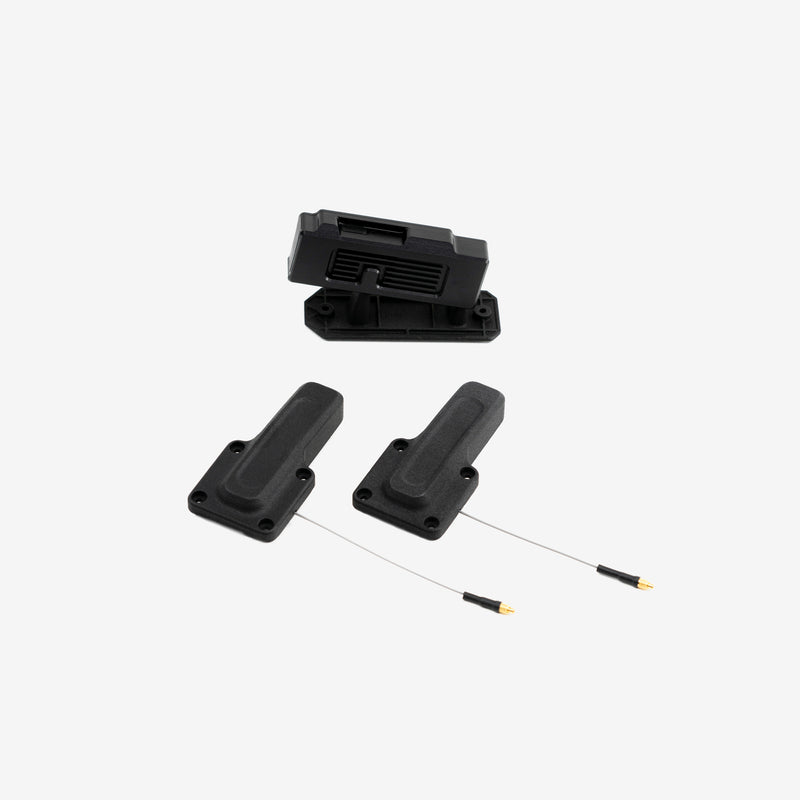

  • Qty 1 - Airside Kit (Alta X)

    • Qty 1 - Airside Herelink 1.1 Radio

    • Qty 1 - Herelink Adapter Module

    • Qty 2 - Antenna Module

    • Qty 1 - Case Modification Aide

    • Qty 1 - Installation Kit

    • Qty 1 - Torx T8 Driver

  • Any existing Alta X aircraft
    • If purchasing this kit, it is up to the operator to install, configure and test Pilot Pro components with their Alta X.
  • Currently in testing for future compatibility
    • Freefly RTK Ground Station (currently requires the use of a user-supplied ground station computer connected to Pilot Pro via RJ45)

from $7,500.00

SKU: 950-00148

Pilot Pro Controller Kit (Alta X, Herelink RF)

This Pilot Pro Controller Kit ships with:

  • Pilot Pro Travel Case
    • Qty 1 - Pilot Pro Controller with Herelink radio
    • Qty 1 - 65W USB C Wall Charger + USB C-C Cable (3')
  • Pilot Pro Airside Kit for Alta X

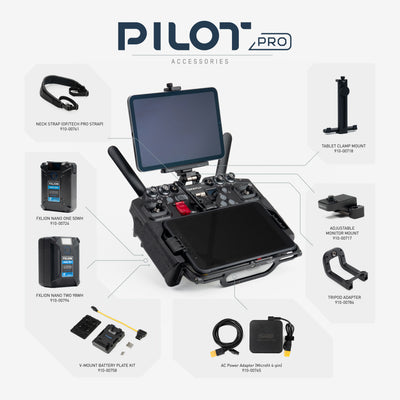

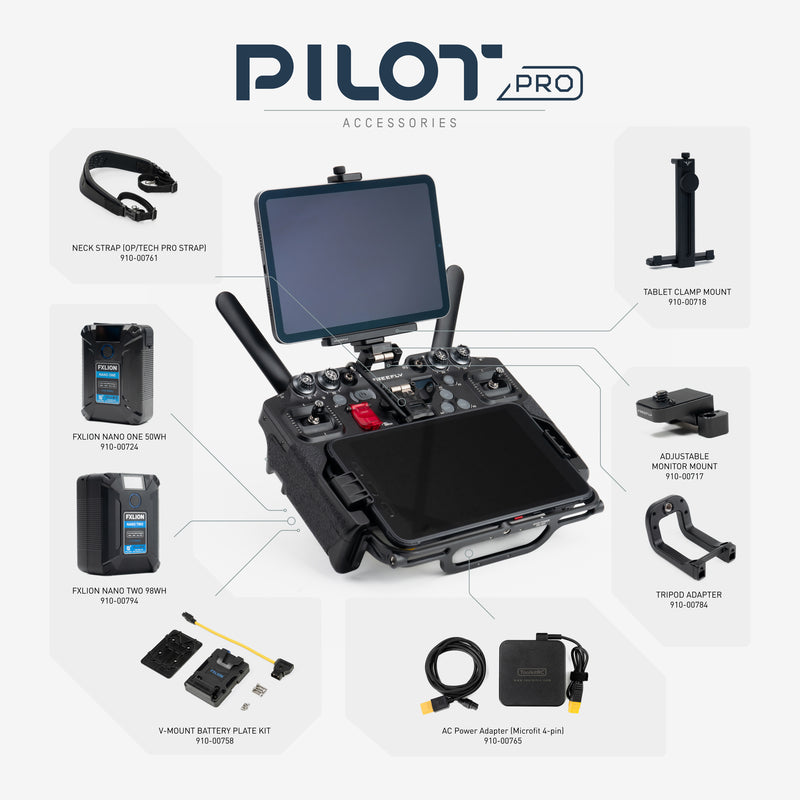

    Power

    Extend your operating time on the ground with auxiliary batteries or AC shore power.

    V-Mount Battery Plate Kit

    V-Mount battery plate mounts to back of Pilot Pro.

    FXLION Nano One 14.8V 3.4Ah/50Wh

    50Wh battery roughly doubles runtime to 10hrs.

    AC Power Adapter (Microfit 4-pin)

    Dual voltage shore power solution for global use (US plug included)
