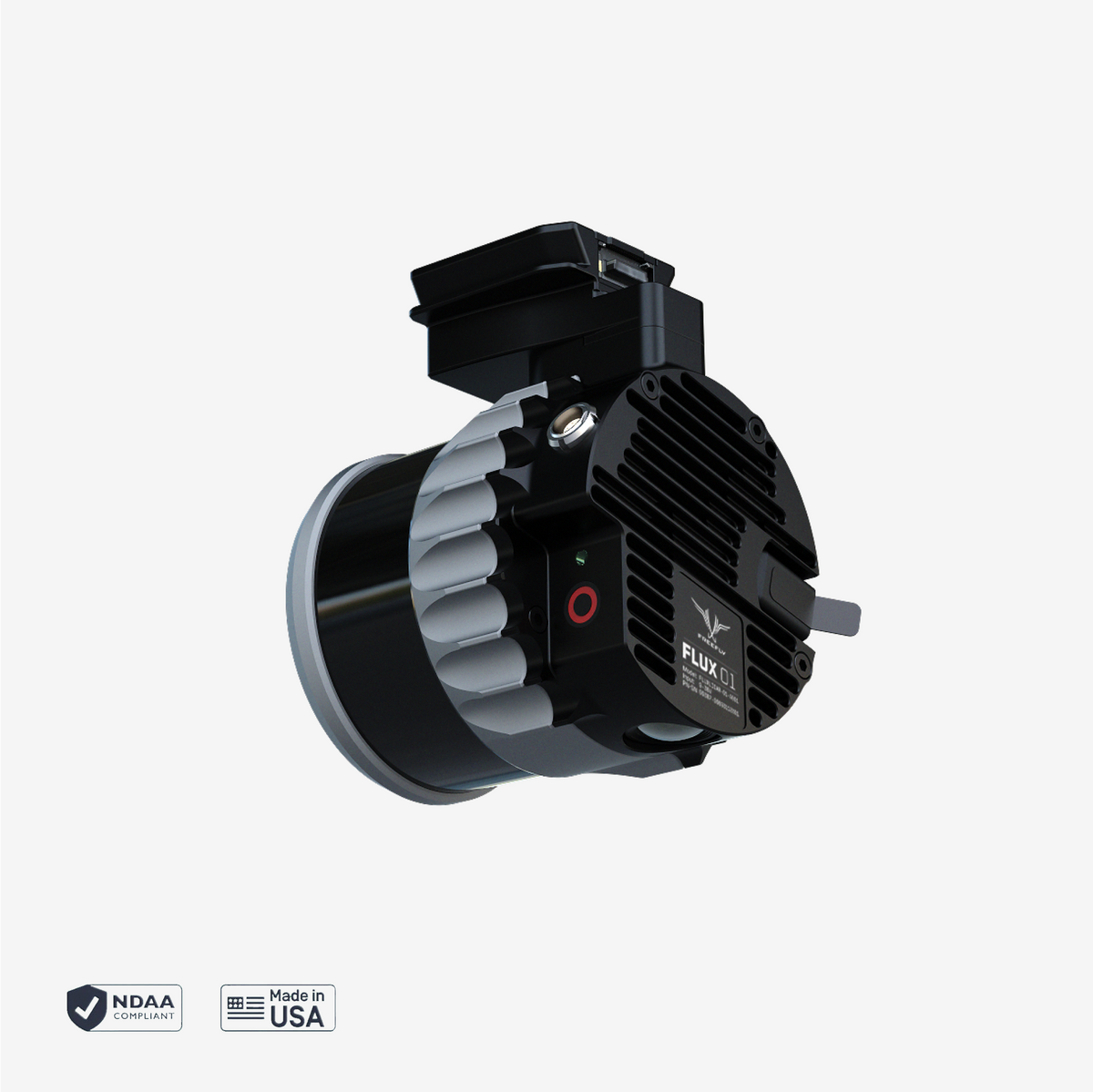

Flux O1
Product Details
The Flux O1 combines the proven performance of the Ouster OS1 scanner with NDAA compliance, making it the trusted choice for scanning sensitive or regulated sites.
Lightweight, versatile and easy to use, the O1 provides industry-leading point cloud density in a compact form factor, ensuring you capture every detail of your mission-critical assets.
Features
- NDAA compliant for government and critical infrastructure projects
- ±3 cm accuracy with 0.5 cm precision
- 200 m range with 360° × 42° field of view
- Lightest in the Flux line-up at just 663g
- 5.2M points per second for ultra-dense data collection
- GNSS Post-Processing (PPK)*
- Export to LAS or LAZ**
- No software subscription/maintenance cost
*Operation of Flux O1 requires the use of a full band GNSS base station (L1, L2, L5, and L6) or equivalent NTRIP. Click here for more information.

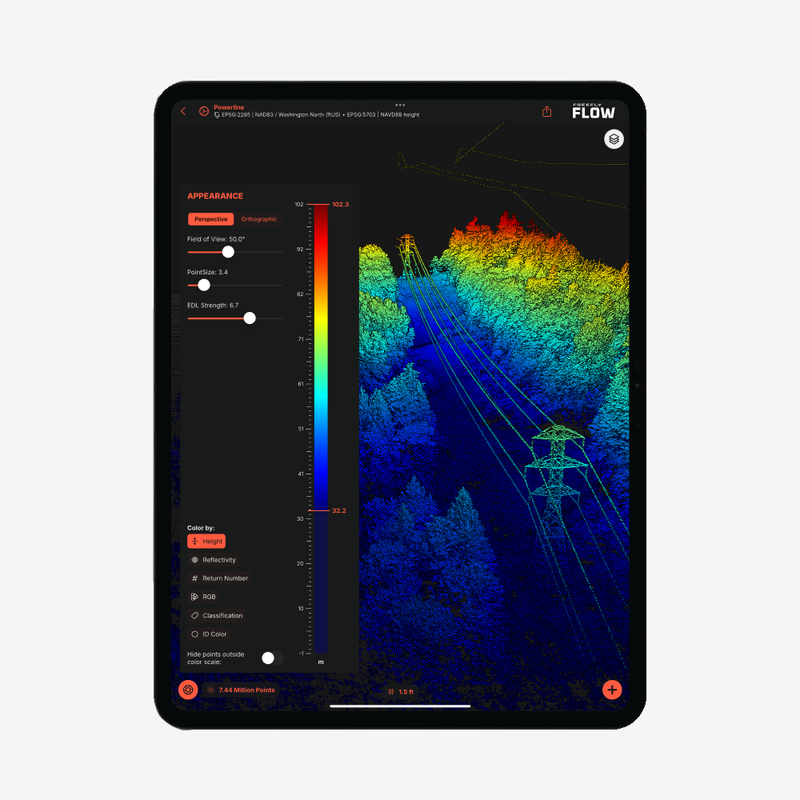

**Post-processing requires a modern M-processor iPad with the Freefly Flow app (free app). See the "in the box section" tab for recommended iPad specs.
- Scanner - Ouster OS1
- RGB Camera - Ximea 20MP*
- Software subscription - None
- Accuracy - ± 3 cm / 1.2"
- Precision - ± 0.5 cm / 0.2"
- Range - ~200 m / 656'
- Field of View (FOV) - 360° x 42.4°
- Laser Returns - 2
- Points / Sec - 5,242,880
- GNSS - Dual Full-band receivers
- L1/L2/L5/L6**
- Dual U-blox X20
- Storage - USB-C Drive (64 GB included)
- Mounting interface - Integrated Smart Dovetail
- Weight - 633 g / 23.3 oz
- NDAA - YES!
*RGB Camera functions not current enabled, included for future feature development
**Operation requires the use of a full band GNSS base station (L1, L2, L5, and L6) or equivalent NTRIP. Click here for more information.
Flux O1 - 950-00182
- Qty 1 - Travel Case
- Qty 1 - Flux O1 Lidar Scanner (NDAA)
- Qty 2 - High-performance GPS antenna
- Qty 2 - Quick release GNSS mounts for Astro (Alta X Gen2 mount sold separately)
- Qty 1 - USB C - Ethernet adapter (for iPad)
- Qty 1 - USB-C Drive (64GB)
Not included, but required for operation
- M-Series iPad (Apple Silicon) for output processing. The newer it is, the faster the processing. M3 iPad in our testing is processing 4x real time (8 minute flight takes ~2 minute to process)
- GNSS Mount for Alta X Gen2, sold separately.
- GNSS Base Station (ALL: L1, L2, L5, and L6) or equivalent NTRIP. Dual band GNSS (L1, L2) will not work. Click here for more information.

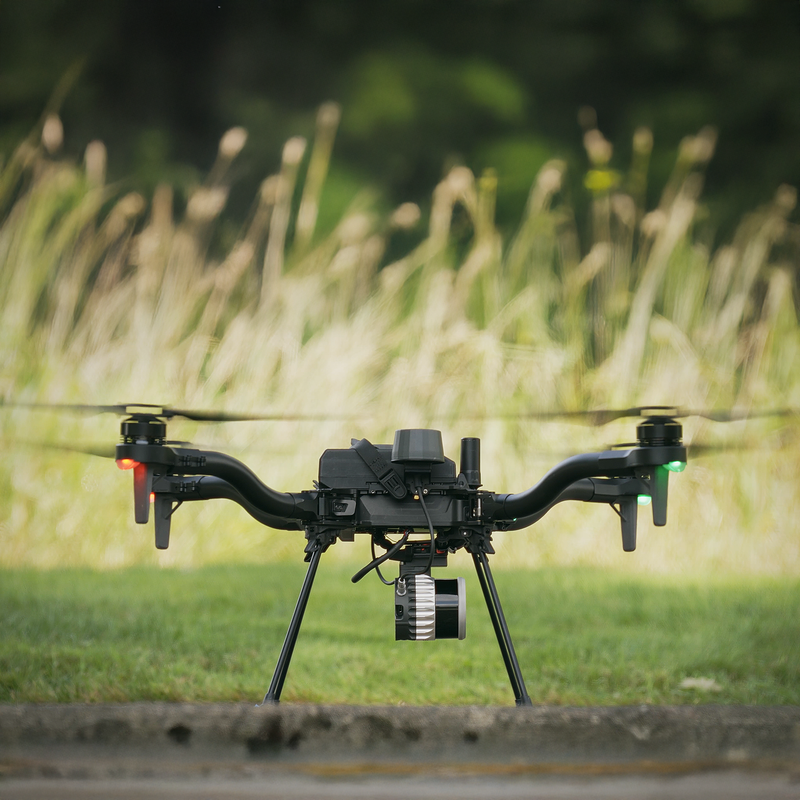

- Freefly Drones with Smart Dovetail
- Astro
- Astro Max
- Alta X Gen2 (with GNSS Mount, sold separately)
- NDAA - YES
- FCC Approved - YES
DCMA Blue UAS Framework - Not yet, but in process
