Product Details

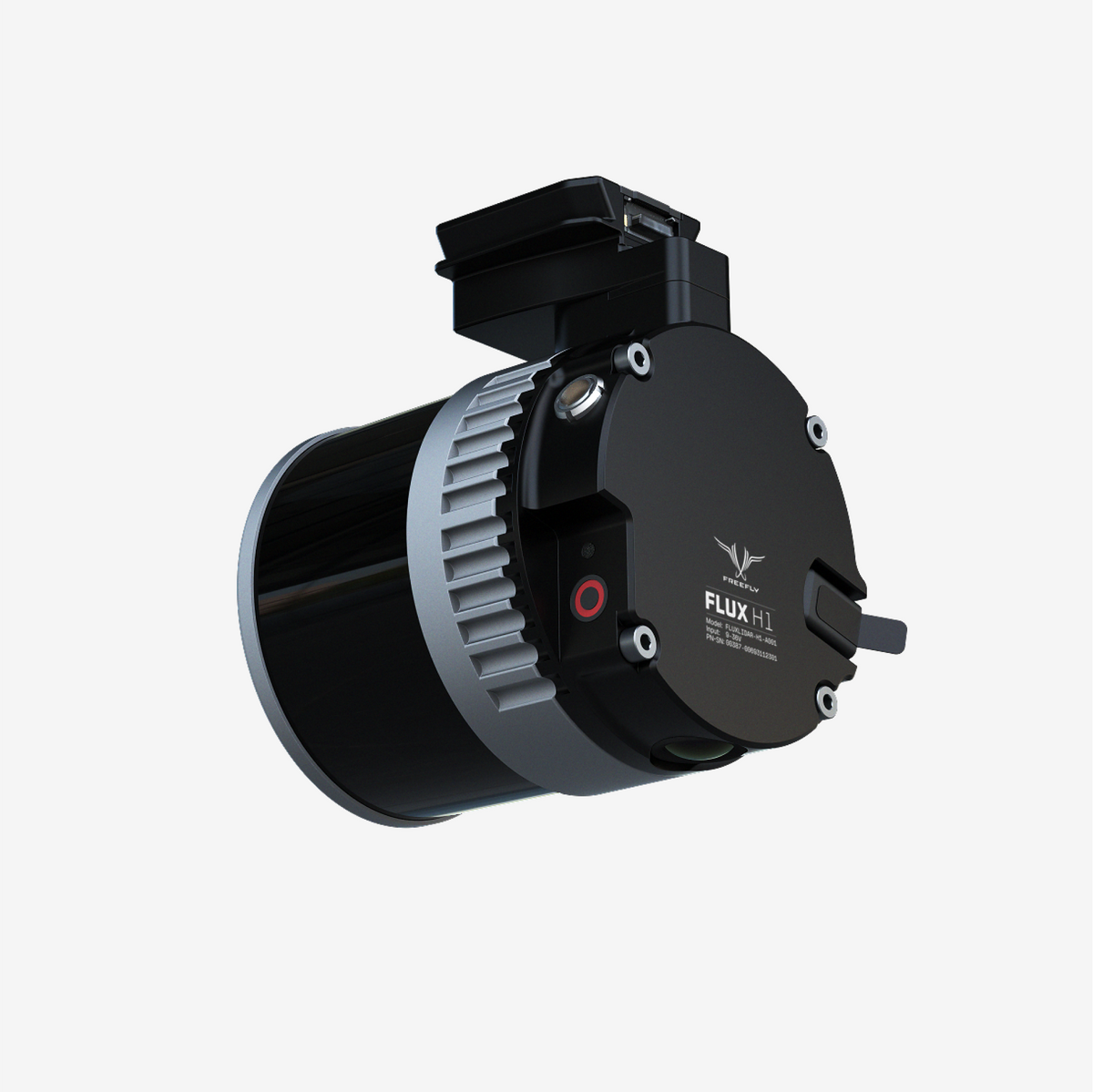

The Flux H1 delivers professional-grade LiDAR in a lightweight sub-700 g package, built for operators who need accuracy they can trust anywhere in the world.
Featuring the Hesai XT-32MX scanner and a 20 MP RGB camera, the H1 captures dense, high-fidelity data with centimeter-level precision.
Designed for global travel and all-day missions, it’s the perfect solution when accuracy, portability, and reliability are non-negotiable.
Features
- ±1 cm accuracy and 0.5 cm precision for survey-grade results
- 300 m range with 360° × 40° field of view
- Compact, lightweight (715g) design for maximum flight endurance
- 1.9M points per second for detailed point clouds
- GNSS Post-Processing (PPK)*
- Export to LAS or LAZ**
- No software subscription/maintenance cost
*Operation of Flux O1 requires the use of a full band GNSS base station (L1, L2, L5, and L6) or equivalent NTRIP. Click here for more information.

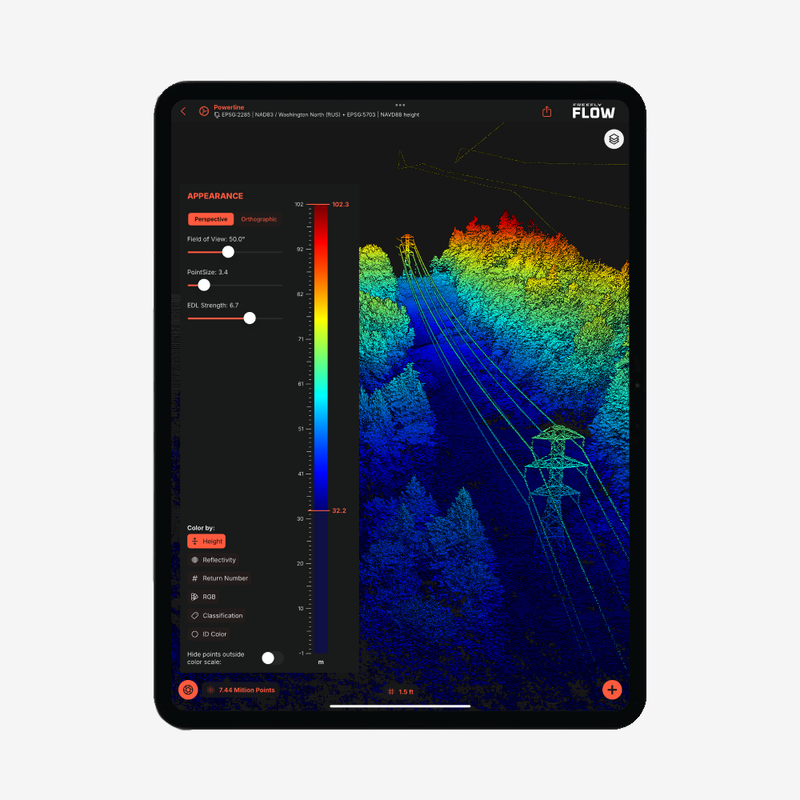

**Post-processing requires a modern M-processor iPad with the Freefly Flow app (free app). See the "in the box section" tab for recommended iPad specs.
- Scanner - Hesai 32M
- RGB Camera - Ximea 20MP*
- Software subscription - None
- Accuracy - ± 1 cm / 0.4"
- Precision - 0.5 cm / 0.2"
- Range - 300 m / 984'
- Field of View (FOV) - 360° x 40.3°
- Laser Returns - 3
- Points / Sec - 1,920,000
- GNSS - Dual Full-band receivers
- L1/L2/L5/L6**
- Dual U-blox X20
- Storage - USB-C Drive (64 GB included)
- Mounting interface - Integrated Smart Dovetail
- Weight - 715g / 25.2 oz
- NDAA - No
*RGB Camera functions not current enabled, included for future feature development
**Operation requires the use of a full band GNSS base station (L1, L2, L5, and L6) or equivalent NTRIP. Click here for more information.
Flux L1 - 950-00181
- Qty 1 - Travel Case
- Qty 1 - Flux H1 Lidar Scanner
- Qty 2 - High-performance GPS antenna
- Qty 2 - Quick release GNSS mounts for Astro (Alta X Gen2 mount sold separately)
- Qty 1 - USB C - Ethernet adapter (for iPad)
- Qty 1 - USB-C Drive (64GB)
Not included, but required for operation
- M-Series iPad (Apple Silicon) for output processing. The newer it is, the faster the processing. M3 iPad in our testing is processing 4x real time (8 minute flight takes ~2 minute to process)
- GNSS Mount for Alta X Gen2, sold separately.
- GNSS Base Station (ALL: L1, L2, L5, and L6) or equivalent NTRIP. Dual band GNSS (L1, L2) will not work. Click here for more information.

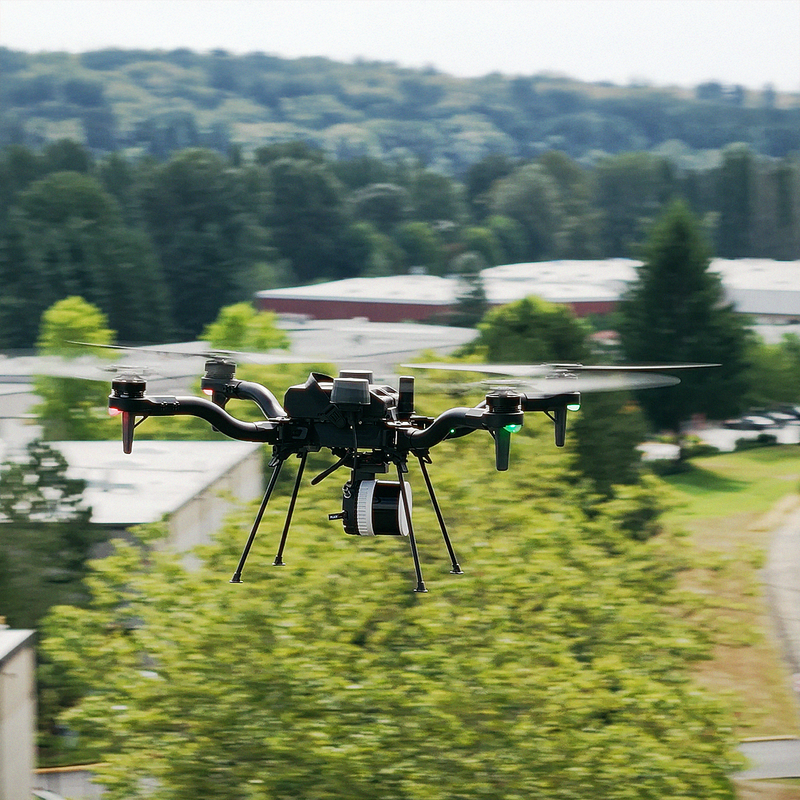

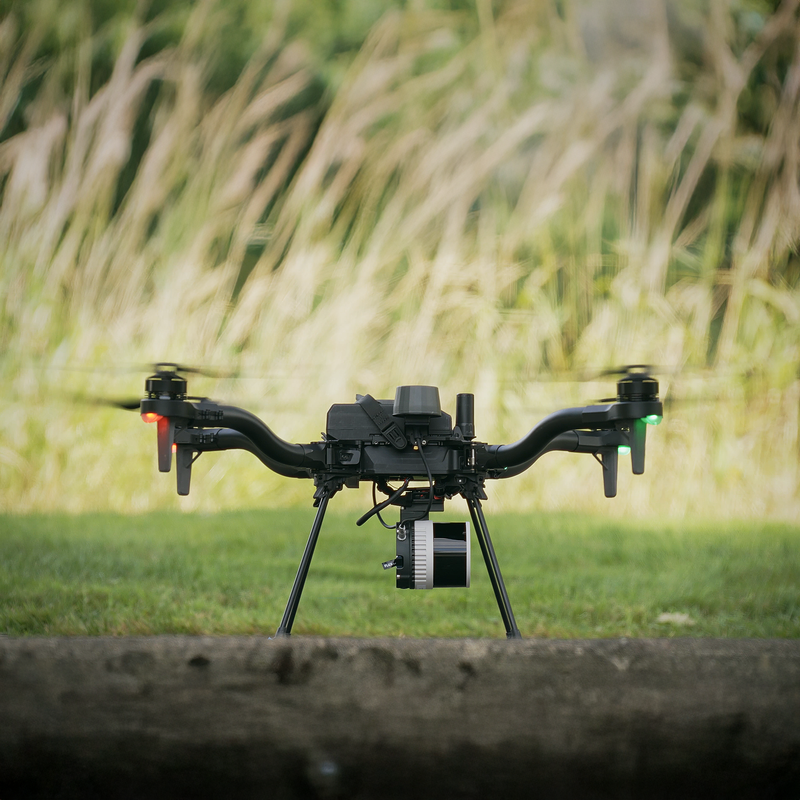

- Freefly Drones with Smart Dovetail
- Astro
- Astro Max
- Alta X Gen2 (with GNSS Mount, sold separately)
Flux H1 comes with:
- Flux H1 LiDAR scanner
- Pair of high-performance GPS antenna for the drone with quick-release mounts, a proper USB to ethernet adapter for your iPad (not included), and 64GB USB C thumb drive)
Mount your iPad on Pilot Pro
Add one of each to build an adjustable, quick-release iPad Mount
50mm NATO Rail
NATO rail stays attached to Pilot Pro
NATO Rail Clamp
The base of your removable iPad Mount
Tool-less adjustable adapter for phone/tablet mount
Mounts between NATO Clamp and Tablet/Phone Mount to adjust viewing angle on the fly, without tools
Tablet Mount
Securely mounts up to a 12" iPad to Pilot Pro for data monitoring during flight.
